Cleaning Samsung DVD-P230 Laser Lens

Geschrieben von: Mitchell Hart
  • Kommentare: 6
Cleaning Samsung DVD-P230 Laser Lens

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

10 Minuten

Einleitung

  1. ZCIsAV4WPXmgmktY
    ZCIsAV4WPXmgmktY
    HPbJZF5mxyn2TeBA
    ZsNRHDqcJkCs4YDX

    • Open the tray by pressing the eject button

    • Remove the DVD tray faceplate by pushing the faceplate up off of the tray.

    Very Super service!

    SzibeL -

  2. OhLfcEahRNRIDn51

    • Press the eject button to insert the tray

    • After the tray is closed unplug DVD player

  3. 3Gm6fLxyZlhTGRNP

    • Unscrew the 3 screws in the back.

  4. SW5ITatQiYCsgODf
    SW5ITatQiYCsgODf
    KRBJbDRAqwIeyLvJ

    • Pull the outer case upward and then towards you.

  5. yhImEwi64cWAvTcX
    yhImEwi64cWAvTcX
    XmffFGKMgNpWmmsD
    uRVEc6MxPyseBgMR

    • There are six symmetrically placed tabs holding in the front faceplate. Unhook these six tabs to loosen the faceplate.

  6. idZPysyJia43cHCw
    idZPysyJia43cHCw
    DYEE4F5JDaMnHKZu

    • Pull off front faceplate. This may take a couple of tries to get all six tabs unhooked simultaneously.

  7. E3Hyp3mvyGRtjHX6
    E3Hyp3mvyGRtjHX6
    p1lmMGXefh2jgTfA
    eQVKoAbrnmpUEPBf

    • Locate the white clip that attaches the cord to the motherboard

    • Grasp clip and squeeze to release

    • Lift up and remove power cord

    • Slide cord mount from outer case

  8. Zqo2U6YZFnoSBkwZ
    Zqo2U6YZFnoSBkwZ
    AhncmkQq5nmeDTnw
    mBKRtc2D2KhIIsZC

    • Remove the three screws holding in the DVD tray

  9. DqYtpU6jdfhrunSe
    DqYtpU6jdfhrunSe
    LKaoBLQFTdxUwCqn

    • Remove the power cord and first two ribbons by pulling them directly out of their sockets.

  10. D3YTSktepbNhirB2
    D3YTSktepbNhirB2
    Ax41HKhvA4ISKRSN

    • Gently lift the DVD tray off of the motherboard.

  11. xb2KqFLgvoDsIGUq
    xb2KqFLgvoDsIGUq
    3yPSo6WLqu3B3Gga

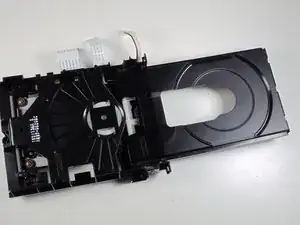

    • Spin small gear shown right to begin opening the tray. There should be relatively little resistance in the gear.

  12. VtWTEPFMbJAi1ydK
    VtWTEPFMbJAi1ydK
    RNyWrKLasyJFT6Tl
    krRH3yTB2kOHmncm

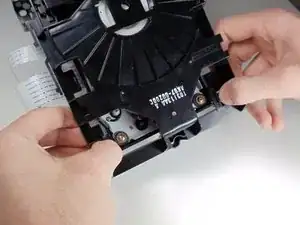

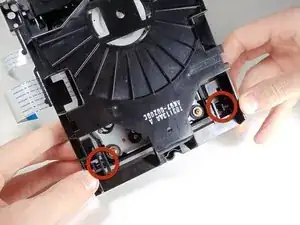

    • Use your fingers to pull the shown tabs towards the sides of the tray, releasing the internal tray that contains the laser.

    I came THIS FAR on my Samsung DVD Player model no. -511/XAA i can’t find the 2 Tabs on side on Tray to Release the Internal Tray ?

    gree2825 -

  13. rmxRmvdwOgLQcok2
    rmxRmvdwOgLQcok2
    CRglpAnSc1icPqCl

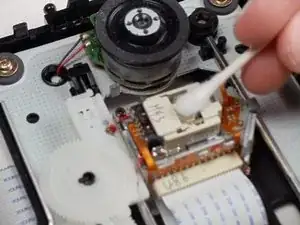

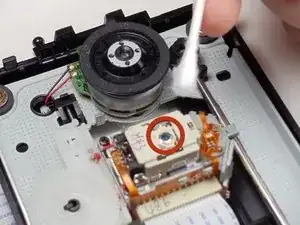

    • Use the cotton swab to wipe off lens

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Mitchell Hart

Mitglied seit: 21/01/11

897 Reputation

4 Kommentare

Thank you Mitchell for your clear, concise directions and photos. I was able to dismantle my Samsung DVD-VCR player Model DVD-V2000. It recently quit playing DVD’s, showing a “No Disc” message. It will play CD’s just fine. I cleaned the laser and reinstalled but still no DVD, just CD’s will play. I like the machine and may look into a replacement DVD assembly if I can find one for a reasonable price. Otherwise I’ll upgrade to a new combo unit with the latest bells and whistles. Best wishes, Bill

sherlockbill -

I successfully fixed the "No Disc" issue on a DVD/VCR model DVD-V5000. Your guide helped and it was basically the same process. I used a foam tip (well a makeup applicator to be more precise) instead of a cotton tip, because it is less likely to leave anything behind like cotton strands. All works now, thanks!

bmtankard -

Hello Mitchell,

Can I use this procedure to clean the laser of a Samsung D530 dvd player?…..mine also does it’s own thing and generally doesn’t respond to command same as the other users .

Thank you

Brian

Brian Hepke -

Hello Mitchell, i tried this procedure on an LG 8600c DVD player, basically same procedure and managed to get to lens cleaned it and reassembled everything but now DVD tray doesn’t want to come out and obviously I get the NO DISK message as I cannot load and DVDs. Can you help please ?

Jennifer Farrugia -
