The following instructions will lead you through connecting bObsweep's circuit plugs, external covering, and main brush before future use.
Werkzeuge
-
-
Flip Bob over and remove the 7 screws around which hold the cover together.
-

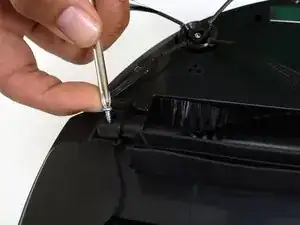

Remove the main brush. Unscrew the holder, and lift the brush out. Reminder: Keep this screw separate from the others so you can use it later to reinstall.
-
-
-

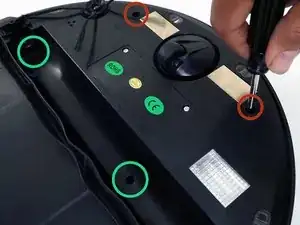

There are two screw holes inside the brush compartment: one in the centre, one on the left end. Remove both and keep aside for reassembly.
-
There are five more screws around bObsweep's edges. Two are installed at the top and bottom, and one on the right end of the main brush.
-
-
-

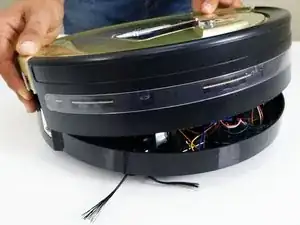

Flip bOb back over so you can see the screen. Lift the cover up to reveal bObsweep’s main board.
-
Detach the power inlet from the cover. Grip and slide it out.
-
-
-

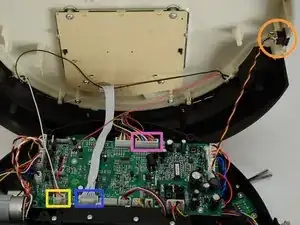

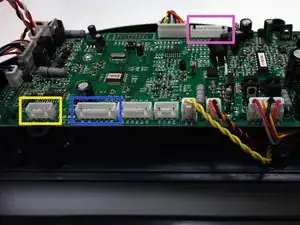

Remove three circuit plugs from the motherboard. Pinch the small white tab on the side of each circuit plug and pull straight up to release each from the motherboard.
-
1. On the bottom left corner: a small connector with red, black and white wires.
-
2. One thick white wire that attaches on the right side of the previous connector.
-
3. On the top edge of bOb’s motherboard: a wide multicoloured connector.
-
Place the cover aside and begin your repair.
-
-
-
Attach the widest circuit plug with multicoloured wires, on the top right edge of the motherboard.
-
Attach the smallest circuit plug in the lower left corner of the motherboard.
-
Attach the all white circuit plug to the bottom of the motherboard, in the centre of the row.
-
Slide the power inlet back into the space on bObsweep’s cover.
-
Put bObsweep's top back on, and align the edges precisely.
-
-
-
Use a phillips head screwdriver to reinstall the six or seven screws you removed at the start of the repair, so the cover is sealed together.
-

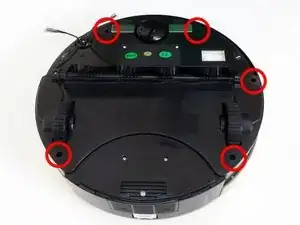

There are 5 along the edges of bObsweep's underside.
-

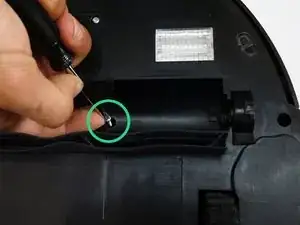

Plus one or two more in the screw holes inside the brush compartment.
-
-
-

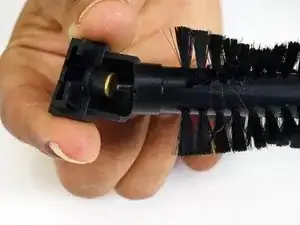

Attach the end piece first.
-

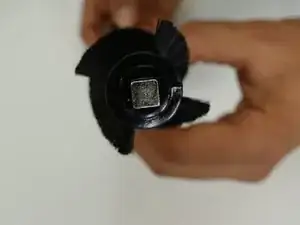

Put the square end in the square space inside bObsweep, then lower the brush in place.
-
Install the screw securely.
-
Follow these steps after completing any internal repairs on your bObsweep.
