Cobra 29 LTD Classic Fuse Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

The fuse is part of the power cable. It burns out under high electrical current to prevent damage to the radio. The power cable should be disconnected from the power source before starting this guide.

  1. ePvXXqIskEeDt3rE
    ePvXXqIskEeDt3rE
    wuRcDdttwaNHEL4g

    • Turn the power switch, the leftmost knob, counterclockwise to off.

  2. MHaoPyusxO1fdHUM
    MHaoPyusxO1fdHUM
    PLAWU6BBUOJJmhdN

    • Turn the device around and firmly pull the power cable plug to remove it from the radio.

  3. 2dC1QlA4xGSVmhjv
    2dC1QlA4xGSVmhjv
    EmGpfAQQFX2Clogc

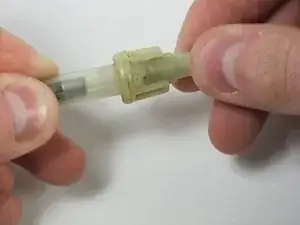

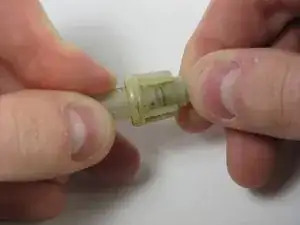

    • Simultaneously push the fuse container together and rotate counterclockwise.

    What size fuse do you use and does it matter what kind of fuse you use

    Mark Ingram -

  4. bURnvGgtthBVaPpW

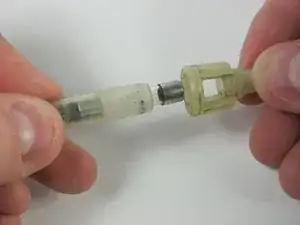

    • Pull the two halves apart.

  5. WUd5hYB6m2yqIodY
    WUd5hYB6m2yqIodY
    PKLL1skARj3FgAWo

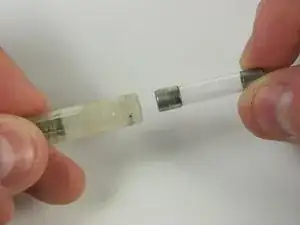

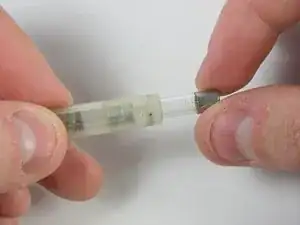

    • Remove the fuse from the case.

Abschluss

To reassemble your device, follow these instructions in reverse order.
