Cobra 29 LTD Classic Internal Speaker Replacement

Schwierigkeitsgrad

Difficult

Schritte

18

Zeitaufwand

30 - 45 Minuten

Einleitung

The internal speaker is located inside the device and it is attached to the bottom cover. Perform the guide on a flat non-conductive surface to avoid electrical shock and damage to your device.

Some steps in this guide require soldering. For information on how to solder, see the soldering guide.

  1. ePvXXqIskEeDt3rE
    ePvXXqIskEeDt3rE
    wuRcDdttwaNHEL4g

    • Turn the power switch, the leftmost knob, counterclockwise to off.

  2. MHaoPyusxO1fdHUM
    MHaoPyusxO1fdHUM
    PLAWU6BBUOJJmhdN

    • Turn the device around and firmly pull the power cable plug to remove it from the radio.

  3. Rsn2uDHEhUtmHkln
    Rsn2uDHEhUtmHkln
    JMnkVOonFSrMAb6l

    • Unscrew the securing cap counterclockwise from the antenna connector.

  4. xCMkIZv3kItGLEIj
    xCMkIZv3kItGLEIj
    eThimSUNgTCN3jmT

    • Gently pull the antenna cable to remove it from the back of the radio.

  5. TbH6kKQA3BroPpVy
    TbH6kKQA3BroPpVy
    HwqDymUIUSdhDRwb

    • Unscrew the cap counterclockwise on the microphone plug to disconnect the cable.

    My mike will.not key

    Keith Laws -

    My microphone will not recieve or get out

    Keith Laws -

  6. uvDgaS4RJVJc1q4r

    • Gently unplug the microphone plug.

  7. 1QqXCYEtwBq11JEs
    1QqXCYEtwBq11JEs
    im6UkjSF66Z5BW5n

    • Unscrew the top four 6.0mm Phillips head screws counterclockwise on the left and right side of the device using a #1 Phillips head screwdriver.

  8. bEmV2uVGSqnuurUP
    bEmV2uVGSqnuurUP
    hQhavRwWx3BUYcyv
    Ab4SWKuCXjOoljyb

    • Gently life and remove the top cover.

  9. NYhaMtYtjiUSwFKM
    NYhaMtYtjiUSwFKM
    5OCAxwRhpnNR2Wgr
    fOaF1GqUuLdZIqqF

    • Gently set down on a hard, flat, non-conductive surface to minimize risk of shock or breaking your radio.

    • Carefully flip the radio over.

  10. WShpKPZ1CRywkmxO
    WShpKPZ1CRywkmxO
    h3oUWcBPkRCuGMpa

    • Unscrew the four 6.0mm Phillips head screws counterclockwise on the left and right side of the device that connect the remaining cover, using a #1 Phillips head screwdriver.

  11. ypKnXmBmKSavRBUP
    ypKnXmBmKSavRBUP
    SUYDw4PfMNtKRP2T
    mYutrwNXQ2aXquyY

    • Watch out for the wires connected to the speaker. These short wires will not allow you to move the cover very far.

    • Gently lift and remove the case cover.

  12. sFm2NoJs5bpoPrKH
    sFm2NoJs5bpoPrKH
    2QFvWXPsuIU22Kxa
    rIWjglE1bfAKOvGB

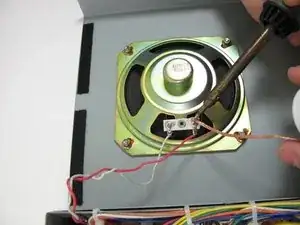

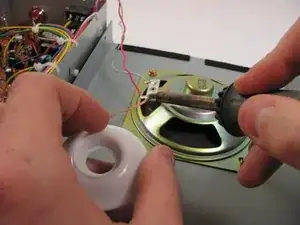

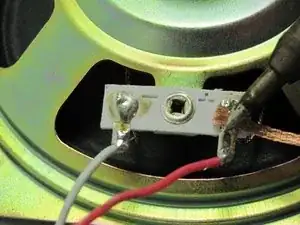

    • De-solder the red wire that is connected to the internal speaker, with a soldering iron and the desoldering wick.

    • During reassembly you will need to resolder the components back together.

  13. Ped4DtkprgKTHxOQ
    Ped4DtkprgKTHxOQ
    fLHRwLmrUaQSS4Pm

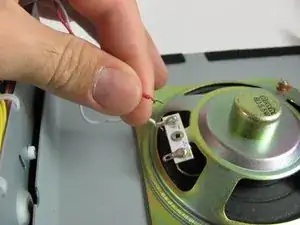

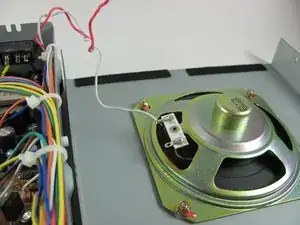

    • The wire may still be hot, so let it sit for 30 seconds before continuing.

    • Remove the red wire and make sure it is out of the way.

  14. HQwCBT66QUeOdEVA
    HQwCBT66QUeOdEVA
    R1TKDpFvkWjJJfNW

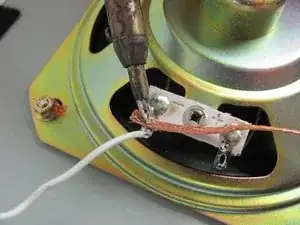

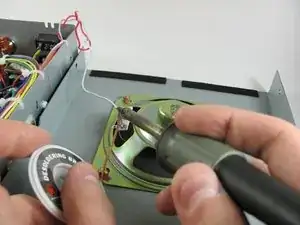

    • De-solder the white wire that is connected to the internal speaker, with a soldering iron and the desoldering wick.

    • During reassembly you will need to resolder the components back together.

  15. wJlxIfJbfqSHpZnV

    • The wire may still be hot, so let it sit for 30 seconds before continuing.

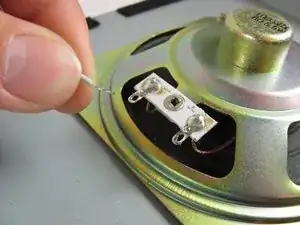

    • Pull the white wire out and set it aside.

    • The cover with the internal speaker should be completely separate from the device at this point.

  16. 6MajrxbkcJtVFl4W
    6MajrxbkcJtVFl4W
    W24OAtfH4PpkZsPA
    m1NwbMuErWRvhTmV

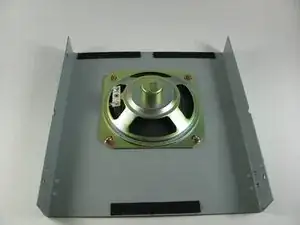

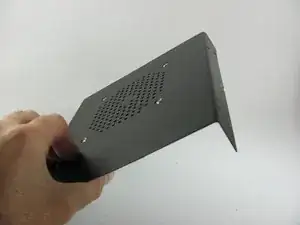

    • Gently flip the cover over.

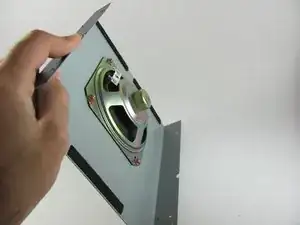

    • The main body should be set aside on a non-static and flat surface. The cover with the internal speaker should now be by itself.

  17. NZvqwAVwCd1bgGQc

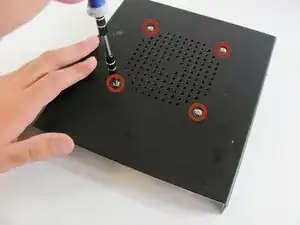

    • Unscrew the four 6.0 mm screws counterclockwise that surround the grate with a #1 Phillips Screwdriver.

    • When removing the four screws, the speaker may detach before you flip over the cover.

  18. AO4yxPVob35m4UTQ
    AO4yxPVob35m4UTQ
    1RkASB3a4jVXBkBI

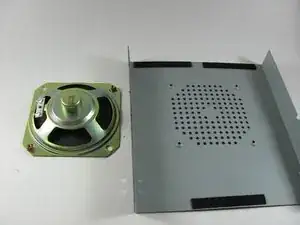

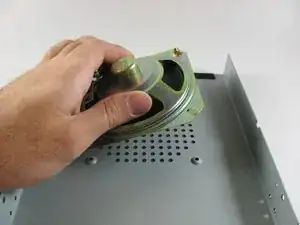

    • Flip the cover over and remove the speaker from the cover.

    • The nuts should remain attached to the speaker by lock-tight glue, however some might fall off.

Abschluss

To reassemble your device, follow these instructions in reverse order.
