Cobra 29 LTD Classic Knobs Replacement

Geschrieben von: Matt Williams
  • Kommentare: 2
Cobra 29 LTD Classic Knobs Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

5 - 10 Minuten

Einleitung

Whether your knobs are broken or you want to put a decorative sticker on your front panel, sometimes you need to get the knobs off of your radio. This guide will instruct you on how to use plastic opening tools to safely remove the knobs.

  1. ePvXXqIskEeDt3rE
    ePvXXqIskEeDt3rE
    wuRcDdttwaNHEL4g

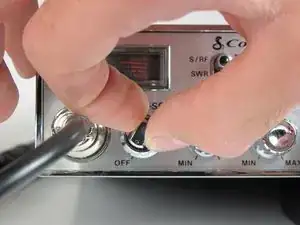

    • Turn the power switch, the leftmost knob, counterclockwise to off.

  2. MHaoPyusxO1fdHUM
    MHaoPyusxO1fdHUM
    PLAWU6BBUOJJmhdN

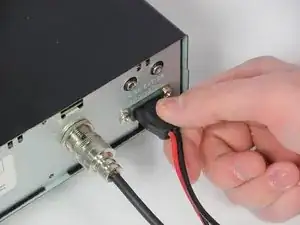

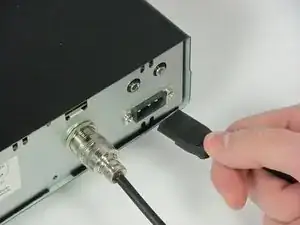

    • Turn the device around and firmly pull the power cable plug to remove it from the radio.

  3. TbH6kKQA3BroPpVy
    TbH6kKQA3BroPpVy
    HwqDymUIUSdhDRwb

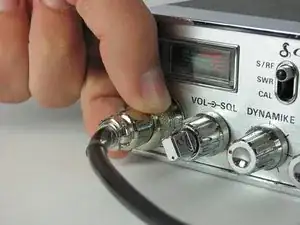

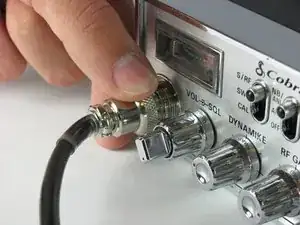

    • Unscrew the cap counterclockwise on the microphone plug to disconnect the cable.

    My mike will.not key

    Keith Laws -

    My microphone will not recieve or get out

    Keith Laws -

  4. uvDgaS4RJVJc1q4r

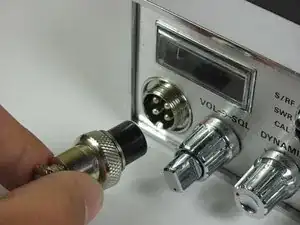

    • Gently unplug the microphone plug.

  5. oLMrQHQKD5vtVKLT

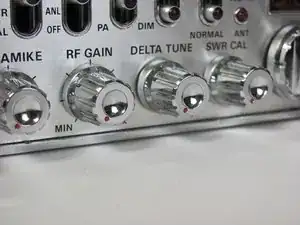

    • Gently turn the middle four knobs counter-clockwise until they no longer move.

    • The middle four knobs are held in place by friction and do not have a way to keep them in the correct position. When reassembling the middle four knobs, make sure to line up the mark on the knob with the left-most mark on the front panel.

  6. lNt2cE5NMxRf2ytH
    lNt2cE5NMxRf2ytH
    AeYJCjFsDgLZ3Ot4

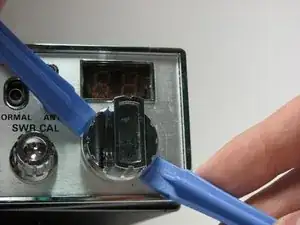

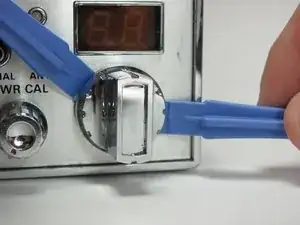

    • Insert two plastic opening tools behind the tuning knob.

    • With some force, pry the knob off of the radio.

    • Two opening tools are needed so that you don't break the knob or connector by applying uneven force.

  7. U3dN2rtgXBrM1ti1
    U3dN2rtgXBrM1ti1
    CV6swkfhXZN1Ga2O
    jfLebF6D1AjWXxKv

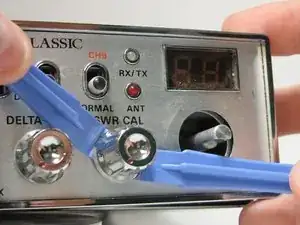

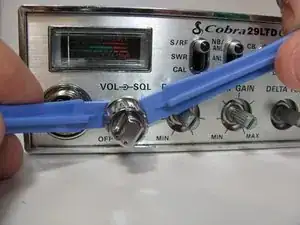

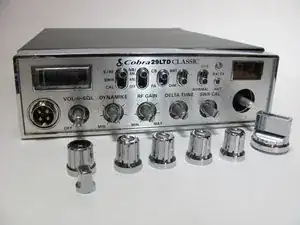

    • Repeat the above procedure with the remaining knobs.

    • The final knob will have a power knob on the end of it. When reassembling, put the power knob on last.

Abschluss

To reassemble your device, align the buttons and push them on.
