Cobra SPX 5300 Buttons Replacement

Geschrieben von: Fanny Auad
  • Kommentare: 0
Cobra SPX 5300 Buttons Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

7 - 10 Minuten

Einleitung

Use this guide if the buttons of your Cobra SPX 5300 aren't working correctly.

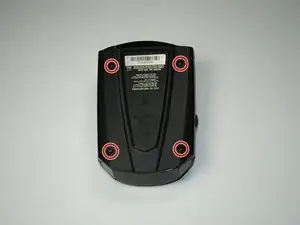

  1. XlwqXpZDjPunEatF
    XlwqXpZDjPunEatF
    eQDPk3gdqt2YITML

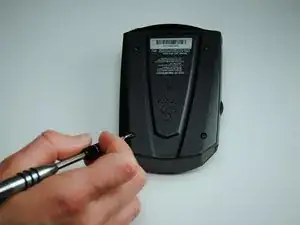

    • Remove the four 9.5 mm Phillips #0 screws from the back of the device.

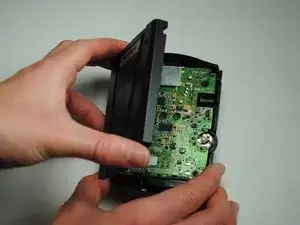

  2. YVQZIquXSLEtGFAM
    YVQZIquXSLEtGFAM
    eJnDfLTqM3fTo1xE

    • Pull the black plastic back case off of the device.

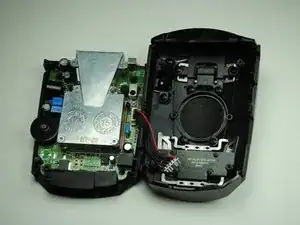

  3. eDnd1jveGsFaLqJ1

    • Lift up the motherboard and lay it flat next to the device.

    • Be careful not to sever the wires. The buttonboard is connected to the motherboard by the wires.

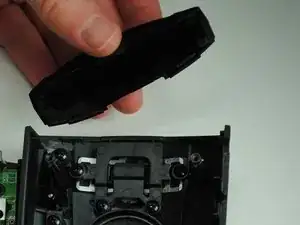

  4. DAL6qIMhXESf2eBb

    • Remove the windshield bracket mount.

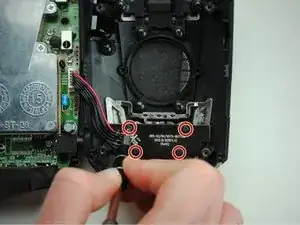

  5. TFNYoVwPVpPE1fRy

    • Remove the four 4.8 mm Phillips #00 screws from the buttonboard.

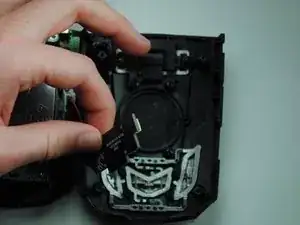

  6. V16ehJHEEjV15mhk

    • Lift buttonboard to expose silver button plate.

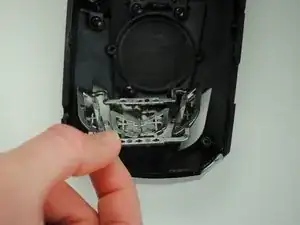

  7. GyqKbXTXlXIUVamP

    • Remove the silver button plate by gripping one of the corners and pulling up.

Abschluss

To reassemble your device, follow these instructions in reverse order.
