    • Remove the four 1cm screws, two on each side, of the DVD player with the Phillips #1 screwdriver.

    • Remove the five 1cm screws on the back of the DVD player with the Phillips #1 screwdriver.

    • It is not required to remove the other seven screws in the middle between the I/O ports.

  2. Z1XQBs4yrLYKQ1PJ
    Z1XQBs4yrLYKQ1PJ
    rSsKmMPQfidyqHP6
    4WqbWMJaTlIA52TF
    • Position the DVD player so that the back is facing you

    • Grab underneath the sides of the DVD player and lift the front of it upwards.

    • Carefully pull the top of the casing off

  3. g5MhhnEwlKuJHfIp
    g5MhhnEwlKuJHfIp
    1MZjKjwgoeXv13EH
    • Gently pinch the 3-pin white adapter of the wire connecting the power cord to the circuit board.

    • Remove the wire from the circuit board.

  4. TXdQXaMXbyWGgqVK
    TXdQXaMXbyWGgqVK
    exUSWIh2f4qBW35D
    • Position the DVD player so that the side with golden circuit board, where the power cord was plugged into, is closest to you.

    • Remove the black wire with the 6-pin white adapter, which is adjacent to the other three pin adapter wires on the golden circuit board.

  5. UOCT4N2sphkqgVcT
    UOCT4N2sphkqgVcT
    GLaPQpCmyXYPXrec
    AkhIV3L3cSQloqHF
    • Position the DVD player so that the back panel is facing you.

    • Remove the three wires with the white pin adapters from the golden circuit board.

  6. OJEWHnyRlvSRN4yg
    OJEWHnyRlvSRN4yg
    JIufAXWegYXttrAT
    Jr6CT1QfsCpWLHsq
    • Remove the four half inch screws, located at each corner of the golden circuit board, using the Phillips #1 screwdriver.

    • Place the blue plastic tool opener underneath the side of the circuit board and carefully remove it from the DVD player.

  7. MIqDHCY6D4OLboFT
    MIqDHCY6D4OLboFT
    frfxEbZTWrLmaHFr
    uQElyvvnKppAGsng
    • Position the DVD player so that the front is facing you.

    • Using the tweezers and the blue plastic opening tool, disconnect the ribbon cables from the green circuit board where the I/O ports are attach to.

  8. OGpDuGFPFFsWFLNv
    OGpDuGFPFFsWFLNv
    sFgLImC2YrrgHS3r
    uRQh6wZZeEjY1ffg
    • Remove the three wires with the white pin adapters from the green circuit board that you just disconnected the ribbon wires from.

  9. XbaaFCibKe5BVKhq
    XbaaFCibKe5BVKhq
    5xktsRtfhPUheDIX
    vGTGsQCwTwAWEwQW
    • Remove the seven 1cm screws located on the back panel of the outer casing, in between the I/O ports, with the Phillips #1 screwdriver

    • Grab the sides of the back panel and remove it from the DVD player.

  10. aLMZVIHbqssWNpBG
    aLMZVIHbqssWNpBG
    DjoIMMFsrcNyStBc
    • Remove the two 1cm screws that are circled in red.

    • Place the blue plastic tool opener underneath the side of the circuit board and carefully remove it from the DVD player.

  11. SQQLSg2IIKKeBBGo

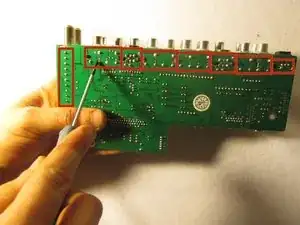

    • De-solder the electrical components contained in the red rectangles from the green circuit board, which is the second one you removed.

    • Each red rectangle contains the electrical components for a specific group of I/O ports

Abschluss

To reassemble your device, follow these instructions in reverse order.
