Coby DVD209 DVD Laser Reader Replacement

Geschrieben von: Yufay Chow
  • Kommentare: 0
Coby DVD209 DVD Laser Reader Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 - 20 Minuten

Einleitung

  1. Mep5sCPurCGvLAxo
    Mep5sCPurCGvLAxo
    w2eMOT6pFgYbwcQ2
    mRXrooqlb3ZYNXQU

    • Press the eject button to view the laser inside.

    • Using the blue plastic tool and the tweezers, remove the ribbon cable.

  2. r2WOeFJJHJp1nxYA
    r2WOeFJJHJp1nxYA
    jYvFoQDNUFPwjyR5
    uIQIpUHMSni3d2kf

    • Remove the six 1cm screws on the bottom of the device with the Phillips #1 screwdriver.

    • Do not lift the top of the DVD player too quickly because there are wires attached on the inside.

    • Pry the top of the device open from the right side where the buttons are located.

  3. VhUZUXCvDsi1R3AF
    VhUZUXCvDsi1R3AF
    a6iYqnmpgALnVQLl
    SSXOcsroJ1LNpon4

    • When pulling the ribbon cables out, make sure not to pull by the wires, as this can cause damage to them.

    • Pinch the plastic adapter with two fingers to remove the wires circled in red from the circuit board.

  4. R5oubBY1YlcRGkNl
    R5oubBY1YlcRGkNl
    udMf3XNDKWh4K2Qw

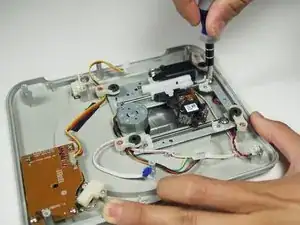

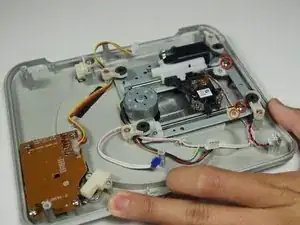

    • Remove the two 6.35mm screws circled in black with a #1 Philips head screwdriver.

    • Remove one 4mm screw circled in red with a #1 Philips head screwdriver.

  5. rtDOKe2XOi61dENp
    rtDOKe2XOi61dENp
    aHMaXALK4rFkqK3K
    ClqYFSxrsttATRl5

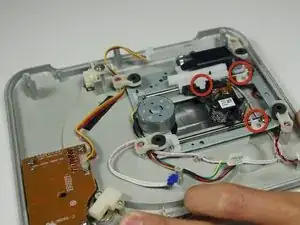

    • There are three small 4.5mm springs that can be easily lost. Be careful when lifting up the railing assembly to make sure you don't lose them.

    • The location of the springs are circled.

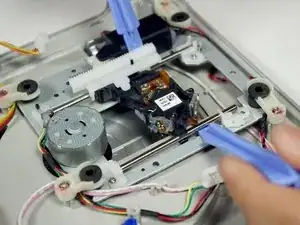

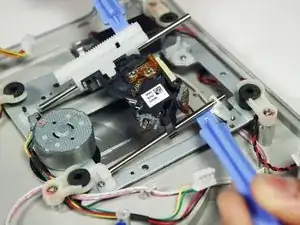

    • Using two plastic tool removers, lift the two rails up at an angle. Keep the rods angled as shown.

    • The rail at the top of the picture is 82mm and the rail at the bottom of the picture is 65mm.

  6. v5xra5YSlLyATDHL
    v5xra5YSlLyATDHL
    GBByImytDIRN3FfQ

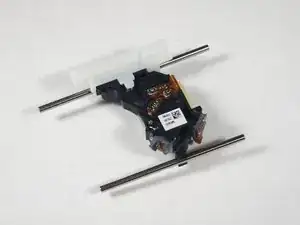

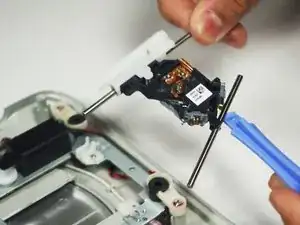

    • Be careful not to lose the spring at the top of the laser.

    • Lift the laser assembly out of the fixture.

  7. XSLL6vYOqSuxc1Vo
    XSLL6vYOqSuxc1Vo
    41DMcUDXsS6Pvn1m
    EkCstgJljCVXHcLM

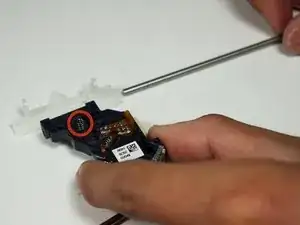

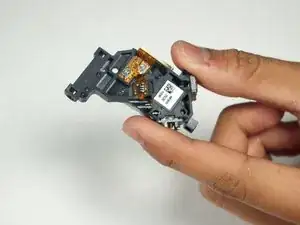

    • Remove the rails from the disk reader.

    • Once the top rail is removed, the white gear will come off and under it will be one of the springs.

Abschluss

To reassemble your device, follow these instructions in reverse order.
