Einleitung

  1. Mep5sCPurCGvLAxo
    Mep5sCPurCGvLAxo
    w2eMOT6pFgYbwcQ2
    mRXrooqlb3ZYNXQU
    • Press the eject button to view the laser inside.

    • Using the blue plastic tool and the tweezers, remove the ribbon cable.

  2. r2WOeFJJHJp1nxYA
    r2WOeFJJHJp1nxYA
    jYvFoQDNUFPwjyR5
    uIQIpUHMSni3d2kf
    • Remove the six 1cm screws on the bottom of the device with the Phillips #1 screwdriver.

    • Do not lift the top of the DVD player too quickly because there are wires attached on the inside.

    • Pry the top of the device open from the right side where the buttons are located.

  3. VhUZUXCvDsi1R3AF
    VhUZUXCvDsi1R3AF
    a6iYqnmpgALnVQLl
    SSXOcsroJ1LNpon4
    • When pulling the ribbon cables out, make sure not to pull by the wires, as this can cause damage to them.

    • Pinch the plastic adapter with two fingers to remove the wires circled in red from the circuit board.

  4. WAkOfZWSaLPYroTA
    WAkOfZWSaLPYroTA
    USQEeSxJH1B1fBT6
    GX2nQWtt2KeCmMrv
    • Position the DVD player so that the power and AVI ports are facing you.

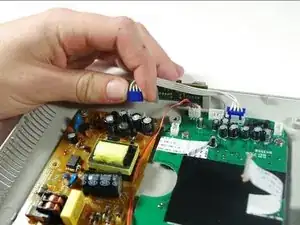

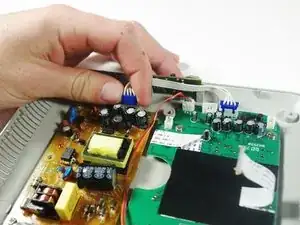

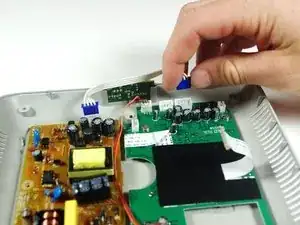

    • Pull the white cable with the blue adapters off of the circuit boards.

  5. DfKRUPDnQAACPG15
    DfKRUPDnQAACPG15
    RudorIafnqqumkGs
    RTCjgefeFmeFTJkJ

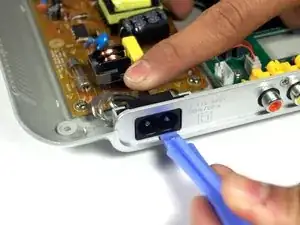

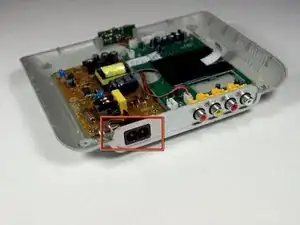

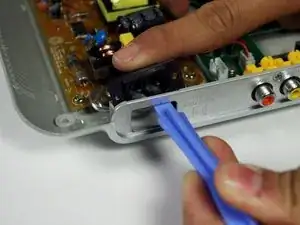

    • Using the plastic opening tool and your finger, push on the black tab on the inner part of the power port and lift the bottom outer portion of the power port with the plastic opening tool simultaneously.

    • Lift the power port out of the its slot.

  6. oHbZIVOdCGIo5oGm
    oHbZIVOdCGIo5oGm
    hgsAoPoVK4TACVPJ
    PDtLtZykb4qCDxvq

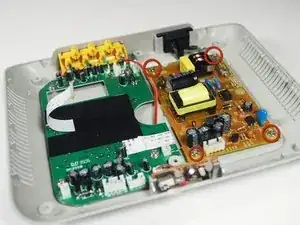

    • Remove the four 5mm screws circled in red.

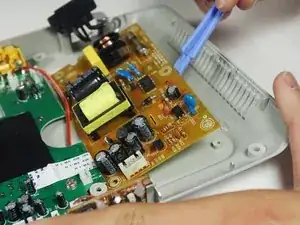

    • Place the blue plastic tool opener underneath the circuitboard and lift up gently.

  7. wxwpLAhXnpfrTpGo
    wxwpLAhXnpfrTpGo
    gPyElrWZ2o2nsIHQ
    NNJGhsKYLJMwfgQS

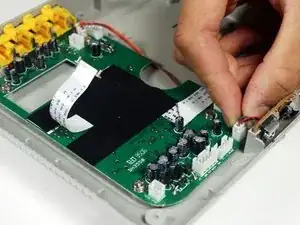

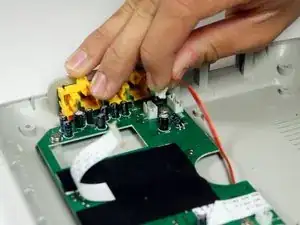

    • Unplug the two, 3-pin ribbon cables, which are attached to the circuitboard.

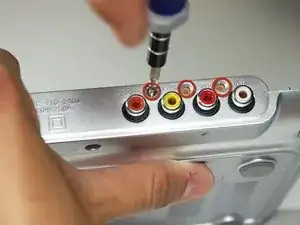

    • For the other circuit board (the one connected to the AVI ports) there are three 6.35mm screws to remove on the outside of the device.

  8. EZanTN4boew6IGIb
    EZanTN4boew6IGIb
    AeyqXOgSCxGHCLIs
    FZgN2GKcUBbgRIfE

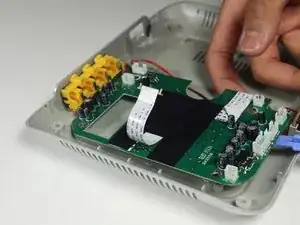

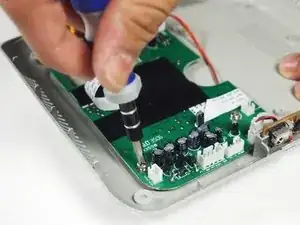

    • Remove the four 5mm screws circled in red.

    • Place the plastic opening tool underneath the circuit board, and lift up genttly. As you lift up, slide the circuitboard in a direction away from the AVI ports.

  9. TUw1HsMVpTcTEr4q
    TUw1HsMVpTcTEr4q
    XHYfrhyAXLo6sXiR

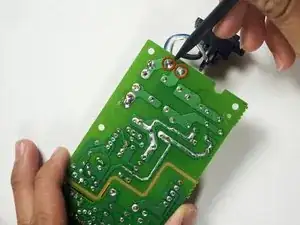

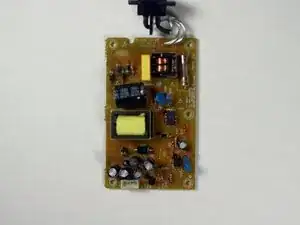

    • On the circuit board with the Power Port, de-solder the circled areas on the back to remove the Power port.

  10. uyunX6fFXvEOp5np
    uyunX6fFXvEOp5np
    oHHZ2HfiCt6oT6MX

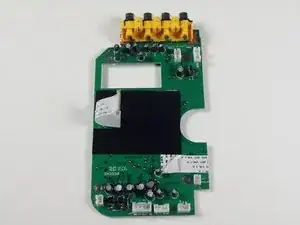

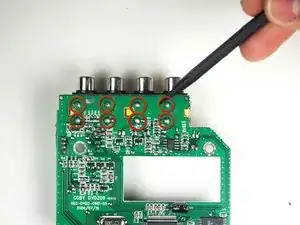

    • On the circuit board with the AVI Port, de-solder the circled areas on the back to remove the AVI Port.

Abschluss

To reassemble your device, follow these instructions in reverse order.
