Coby KYROS MID7125 Side Lock Button Replacement

Geschrieben von: Benjamin Foley
  • Kommentare: 1
Coby KYROS MID7125 Side Lock Button Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

20 Minuten

Einleitung

The side lock button on your device is an essential part to turn it on or unlock the device after you have locked it. This guide walks you through step by step instructions on how to replace this piece.

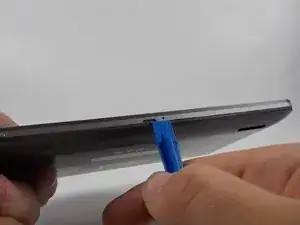

  1. tUbu1Ysa1vEZykVy

    • Begin by removing back panel using the large opening tool.

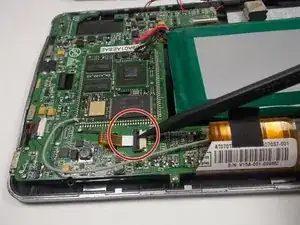

  2. 3VRKNkPHeJPVAyIA
    3VRKNkPHeJPVAyIA

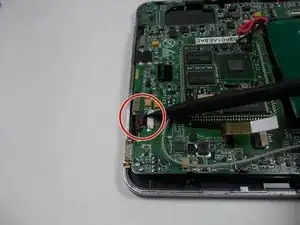

    5oIFTQiWlGghFKGC

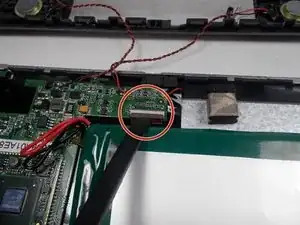

    gWCcAhbTCUVEeCGU

    • Remove the connection of all of the ribbon cables connected to the motherboard of the device using the Plastic Spudger.

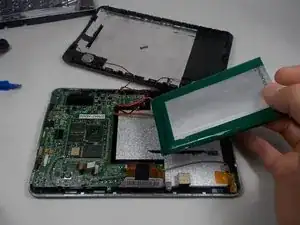

  3. Wk2yfjbQaIAOZFFq

    • Use plastic Spudger to remove the battery off of the panels and and leave it unconnected until the device is being put back together.

    • Review Battery Replacement for details on how to remove battery.

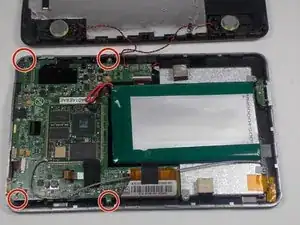

  4. hOPnT4fNWmwc55NQ
    hOPnT4fNWmwc55NQ

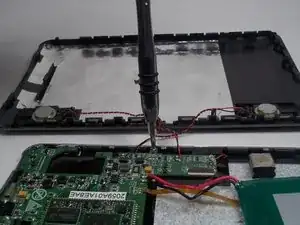

    MN42BUYhQUfy3wRY

    • Using the philips head screw driver size PH0, unscrew the screws holding the mother board to the device.

  5. khqpQYykQVahuqjm

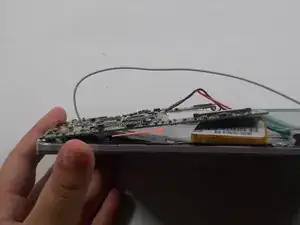

    • Using the plastic Spudger, pop the mother board out of place to expose the broken button piece.

    • Be sure to not pull the mother board out to much, some of the soldered wired connections may break.

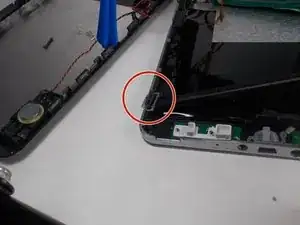

  6. vtQXQsrGatZBdFqu

    • Use the plastic Spudger to remove broken power button, and then pop in new power button after removal.

    • Reverse steps 1-5 to reassemble.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Benjamin Foley

Mitglied seit: 20/10/16

125 Reputation

Ein Kommentar

For people wondering: Yes, this does work on a MID7120, because the MID7120's board is similar to the MID7125's board. Also, where can I get switches similar to these? My MID7120 is missing the switch so I can't turn it on.
