Coby Kyros MID7012 Speaker Replacement

Geschrieben von: Daniel Ulrich
  • Kommentare: 0
Coby Kyros MID7012 Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

Keine Schätzung

Einleitung

Be careful not to crack the screen or the faceplate when removing from the tablet.

  1. QhTKLcsvcNPQtiuH
    QhTKLcsvcNPQtiuH
    XXNBSLINjxfQOs4x
    cbG6IVdNrKYrdGZc

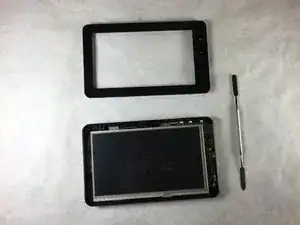

    • Wedge the metal spudger in between the faceplate and the body of the tablet.

    • Carefully pry the faceplate away from the body of the tablet.

  2. ZEPibk6kpRLET2bx

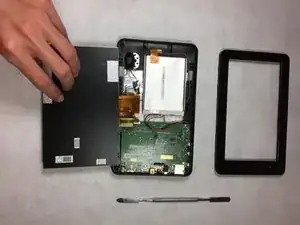

    • Carefully lift the screen and set it face down on a soft surface to not scratch it.

  3. yCcu3gXruAKVeFNV
    yCcu3gXruAKVeFNV
    1dQKuHFTSjU6H3A1
    LCkLmDsJxgSihgP1

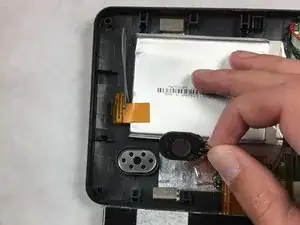

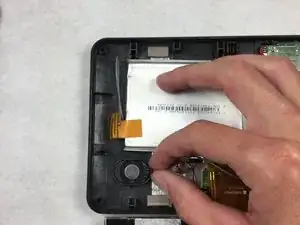

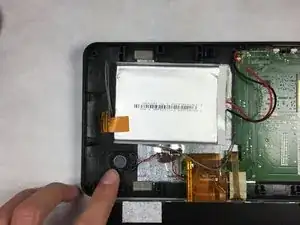

    • Lift the speaker out of the speaker housing.

  4. JpcaC2PYrDEWBZdW
    JpcaC2PYrDEWBZdW
    rtfgcuwr4PdnIkOg

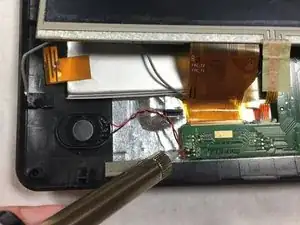

    • Remove the positive and negative speaker wires by heating up the solder on the motherboard.

    • Here are some tips on how to Solder.

Abschluss

To reassemble your device, follow these instructions in reverse order.
