Coby Kyros MID9742 Digitizer Replacement

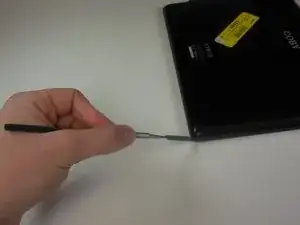

Use a spudger to remove the four rubber screw covers from the four back corners of the tablet.

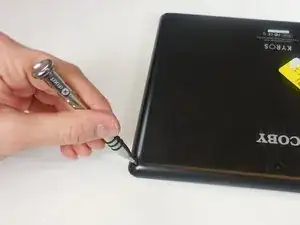

Place the PH00 screwdriver and use it to remove the four 0.5 cm screws from each corner of the tablet.

Place a metal spudger tool in between the front and back panels of the tablet and begin to pry the base from the front panel by moving the metal tool around the perimeter of the tablet.

Using the PH00 screwdriver unscrew and rotate the plastic tabs that are holding the screen in place.

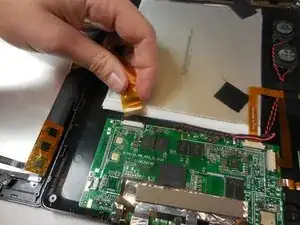

Before removing the screen from the cover, dissconnect the large gold ribbon cable by gently sliding the black tab out until it clicks.

Gently pull the ribbon cable from the port.

Remove the screen from the device.

Gently pull on the black tab connecting the ribbon cable to the back of the tablet.

Remove ribbon cable from port to free the digitizer.
