Einleitung
The purpose of this guide is to show step-by-step instructions on how to replace the circuit board of a ColecoVision game controller.
Werkzeuge
-
-
Place the controller with the back panel up (buttons down).
-

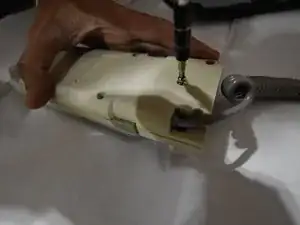

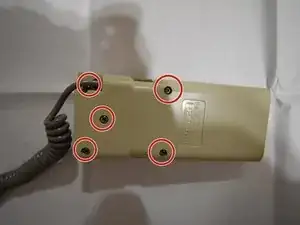

Remove the five 15mm screws on the back with a Phillips #1 screwdriver.
-
-
-
Turn the device around.
-

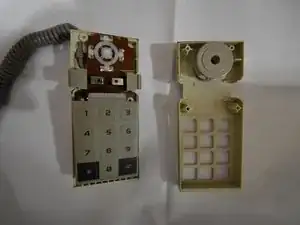

Separate the front panel from the rest of the controller and set aside.
-
-
-

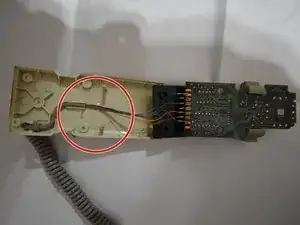

Remove the tape and wiring holding the wires in place.
-

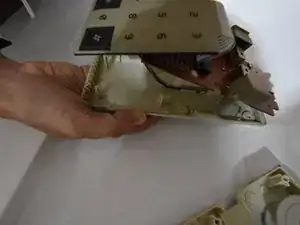

Carefully lift the circuit board out of the controller.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
