Einleitung
The purpose of this guide is to give step-by-step instruction on how to replace the motherboard on a ColecoVision.
Werkzeuge
-
-
Start by laying the console face down.
-

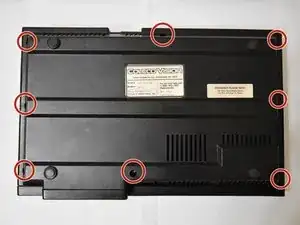

Remove the eight 15mm Phillips #1 screws from the bottom of the device.
-
-
-
Flip the console back over.
-

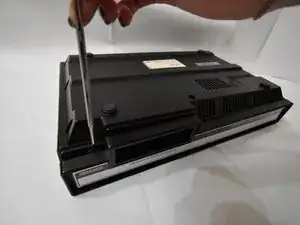

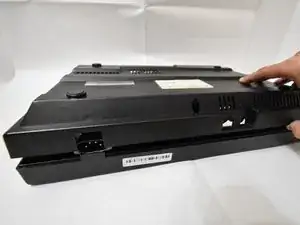

Lift the front panel off. I would reccomended using a metal spudger along the rim of the top to safely remove it and set it aside.
-
-
-

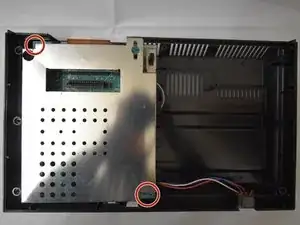

Remove the two 15mm Phillips #1 screws holding the casing in place.
-
Carefully lift the casing from the motherboard.
-
-
-

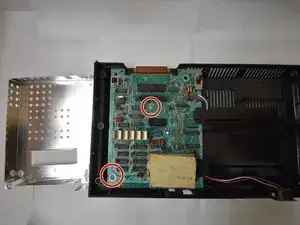

Remove the center Phillips #1 screw near the cartridge slot.
-
Remove the second Phillips #1 screw near the RAM chips.
-

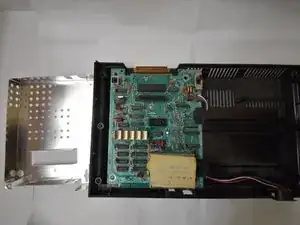

Carefully lift and remove the motherboard.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
