Coleman Rechargeable Fluorescent Twin Tube Battery Replacement

Geschrieben von: Sean
  • Kommentare: 3
Coleman Rechargeable Fluorescent Twin Tube Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

5 - 10 Minuten

Einleitung

Power not reaching your motherboard? Does the lantern not illuminate even though its been charged? Check out this guide on how to remove and replace the battery!

  1. RPTuBBKUJycYQIQ6
    RPTuBBKUJycYQIQ6
    4fvLSu5sqJhxRfSU

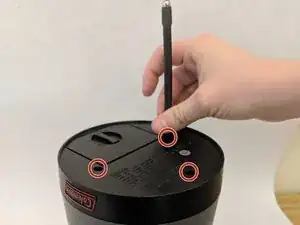

    • Carefully turn the lantern upside down.

    • Remove the three 1.2 mm Phillips #0 screws from the base of the lantern.

  2. nVLTFtxR3He43wqd

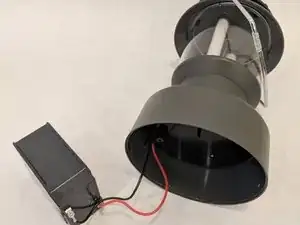

    • Carefully pull the bottom of the lantern to remove the base from the device.

  3. IVqb2FQLZU4wdTbX
    IVqb2FQLZU4wdTbX
    eXxxoFwh6nZl54Av

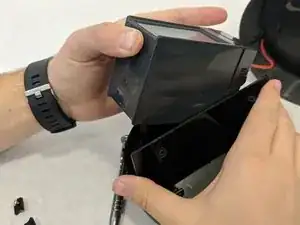

    • Gently pull the battery out of the slot and away from the base.

    • The battery may be held into place by adhesive strips.

    very hard to pull out, then what.

    kathleen harless -

    is in too good

    kathleen harless -

  4. XeiElGYbHOByJuTi
    XeiElGYbHOByJuTi
    RAKjvu3EB1YrFCdY
    ZkeBQCf4cWjXiCVv

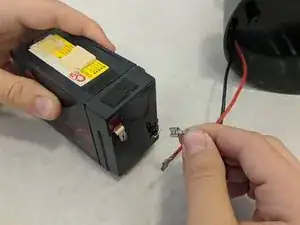

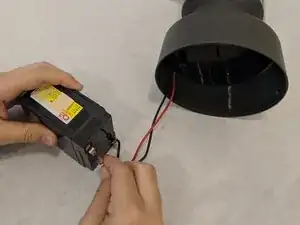

    • Carefully detach the negative wire from the battery terminal first.

    • Next, detach the positive wire from the battery terminal.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Sean

Mitglied seit: 17/09/18

265 Reputation

Ein Kommentar

Sean, I’m facing a dead battery in my Coleman twin tube fluorescent lantern also. Your directions are spot on except my battery seems to be glued in with super glue! I’ve tried a heat gun and all my strength but my battery won’t come loose. I find it hard to pry under the battery because of the shape of the plastic partitions around the battery. How did you get the battery unstuck?

BilMcKelvy -
