Coleman Rechargeable Fluorescent Twin Tube Lantern Power Switch Replacement

Geschrieben von: Mathew Merrick
  • Kommentare: 2
Coleman Rechargeable Fluorescent Twin Tube Lantern Power Switch Replacement

Schwierigkeitsgrad

Very easy

Schritte

8

Zeitaufwand

1 Minute

Einleitung

Is your switch unable to move due to a foreign liquid? Does the switch feel like its seated improperly? Check out this guide on removing and replacing the switch.

  1. RPTuBBKUJycYQIQ6
    RPTuBBKUJycYQIQ6
    4fvLSu5sqJhxRfSU

    • Carefully turn the lantern upside down.

    • Remove the three 1.2 mm Phillips #0 screws from the base of the lantern.

  2. nVLTFtxR3He43wqd

    • Carefully pull the bottom of the lantern to remove the base from the device.

  3. IVqb2FQLZU4wdTbX
    IVqb2FQLZU4wdTbX
    eXxxoFwh6nZl54Av

    • Gently pull the battery out of the slot and away from the base.

    • The battery may be held into place by adhesive strips.

    very hard to pull out, then what.

    kathleen harless -

    is in too good

    kathleen harless -

  4. XeiElGYbHOByJuTi
    XeiElGYbHOByJuTi
    RAKjvu3EB1YrFCdY
    ZkeBQCf4cWjXiCVv

    • Carefully detach the negative wire from the battery terminal first.

    • Next, detach the positive wire from the battery terminal.

  5. Ul1IXAXKqEjIB3ko
    Ul1IXAXKqEjIB3ko
    VH3aqcRp2fvvEVGl

    • Remove the single 1.2 mm Phillips #1 screw on the bottom of the lantern.

    • Remove the plastic barrier.

  6. FCqXNDMxQ5GCqtXn
    FCqXNDMxQ5GCqtXn
    fdiXQ3BeoGJMvZCX

    • Unscrew the single 1.2 mm Phillips #1 screw holding the motherboard to the plastic lantern housing.

  7. 2NQBCrwatkkgLB2F
    2NQBCrwatkkgLB2F
    nvpoPWCJsOYTgrEp
    JZRdT3I6wKsEjlpS

    • Gently grab the main board by the exposed PCB.

    • Pull the main board straight out of the housing.

  8. MloU1ThIFqWpprVF
    MloU1ThIFqWpprVF
    O4aN4CoYoPC3kGBD

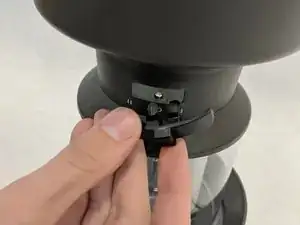

    • Remove the switch by pushing down on the ends while simultaneously pulling it out of the slot.

    • When removing the switch, make sure to depress the inner clips when removing from the device. Be careful, do not force the switch from the base of the lantern.

Abschluss

To reassemble your device, follow these instructions in reverse order.
