Coleman Rechargeable Fluorescent Twin Tube Main Power Board Replacement

Geschrieben von: Mathew Merrick
  • Kommentare: 2
Coleman Rechargeable Fluorescent Twin Tube Main Power Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 - 15 Minuten

Einleitung

Have you troubleshooted everything else and nothing is working to fix the device? Replacing the main power board might be your last resort.

  1. RPTuBBKUJycYQIQ6
    RPTuBBKUJycYQIQ6
    4fvLSu5sqJhxRfSU

    • Carefully turn the lantern upside down.

    • Remove the three 1.2 mm Phillips #0 screws from the base of the lantern.

  2. nVLTFtxR3He43wqd

    • Carefully pull the bottom of the lantern to remove the base from the device.

  3. IVqb2FQLZU4wdTbX
    IVqb2FQLZU4wdTbX
    eXxxoFwh6nZl54Av

    • Gently pull the battery out of the slot and away from the base.

    • The battery may be held into place by adhesive strips.

    very hard to pull out, then what.

    kathleen harless -

    is in too good

    kathleen harless -

  4. XeiElGYbHOByJuTi
    XeiElGYbHOByJuTi
    RAKjvu3EB1YrFCdY
    ZkeBQCf4cWjXiCVv

    • Carefully detach the negative wire from the battery terminal first.

    • Next, detach the positive wire from the battery terminal.

  5. Ul1IXAXKqEjIB3ko
    Ul1IXAXKqEjIB3ko
    VH3aqcRp2fvvEVGl

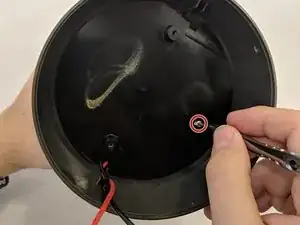

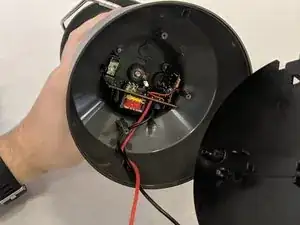

    • Remove the single 1.2 mm Phillips #1 screw on the bottom of the lantern.

    • Remove the plastic barrier.

  6. FCqXNDMxQ5GCqtXn
    FCqXNDMxQ5GCqtXn
    fdiXQ3BeoGJMvZCX

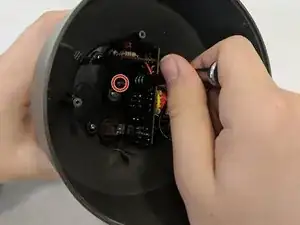

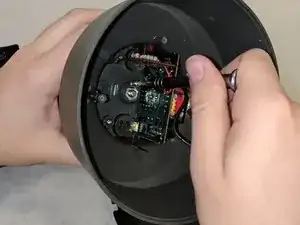

    • Unscrew the single 1.2 mm Phillips #1 screw holding the motherboard to the plastic lantern housing.

  7. 2NQBCrwatkkgLB2F
    2NQBCrwatkkgLB2F
    nvpoPWCJsOYTgrEp
    JZRdT3I6wKsEjlpS

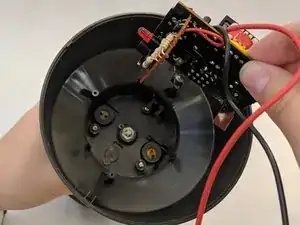

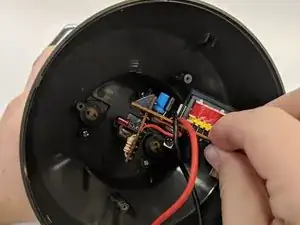

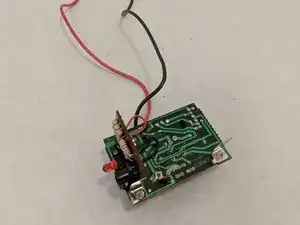

    • Gently grab the main board by the exposed PCB.

    • Pull the main board straight out of the housing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
