Einleitung

If you press a button and the button does not move or if people cannot hear you talking while the talk button is pressed down, the buttons may need to be cleaned or replaced.

  1. hukvoDmosZklhTUx
    hukvoDmosZklhTUx
    Bubb2BUkNqvD2kjC
    fT4IN2SMwwZSdwEI
    • Look for the release button on the back of the radio.

    • Press the button and pull down on the battery at the same time. The battery will come free.

  2. uKPVIP6mGuVIKWAv
    • Twist the antenna counter-clockwise to unscrew it from the antenna jack.

  3. 3xcZAA1pIWGBurUu
    • Pull up on the dials to remove them from the underlying pegs.

  4. 2BOKuBBCP4YqJoci
    2BOKuBBCP4YqJoci
    xwyCbQ5ZAET6ka2y
    AQ5anyrcAmObSuEj
    • Using a T15 Torx screwdriver, unscrew the two screws.

    • Using a plastic opening tool, pry the internal case from the external case.

  5. MbrVFet2h1oRZ4uF
    MbrVFet2h1oRZ4uF
    cTCuDOnAEXtLujZO

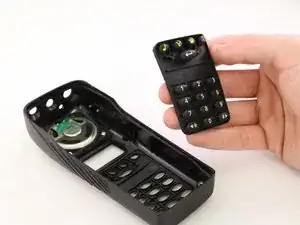

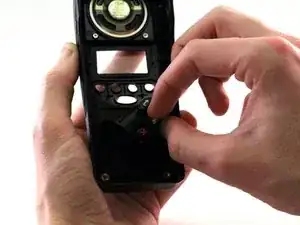

    • Grip the corner of the button pad and gently peal it away from the faceplate.

    • Clean off any sticky residue and/or replace the buttons.

Abschluss

To reassemble your device, follow these instructions in reverse order.
