Einleitung
If your device has received water damage or experienced a similarly devastating event, the motherboard may have become damaged or even destroyed.
This guide will take you through the necessary steps to access and replace the motherboard.
Werkzeuge
-
-
Look for the release button on the back of the radio.
-
Press the button and pull down on the battery at the same time. The battery will come free.
-
-
-

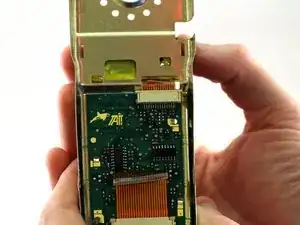

Using a T15 Torx screwdriver, unscrew the two screws.
-

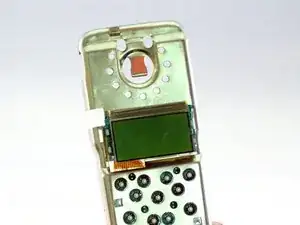

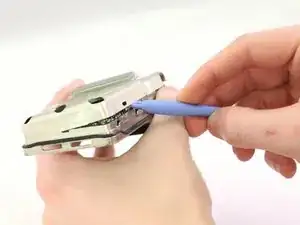

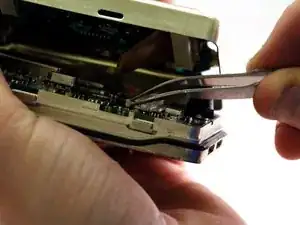

Using a plastic opening tool, pry the internal case from the external case.
-
-
-

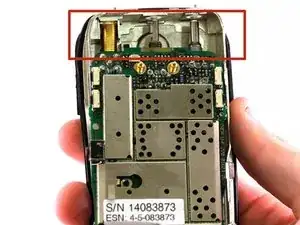

Remove the rubber O-rings from the antenna jack, volume switch, and channel switch.
-

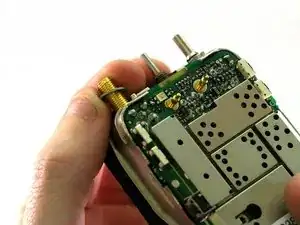

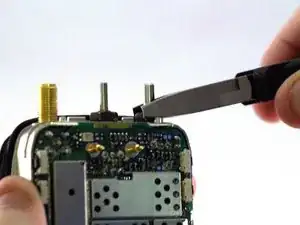

Once the rubber O-rings have been removed, use small needle nose pliers to unscrew the nuts on the antenna jack, volume switch, and channel switch.
-
-
-

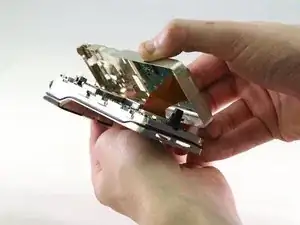

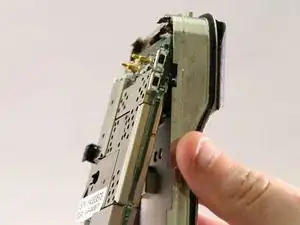

Using any convenient hand-placement, pull the motherboard away from the case.
-
The antenna jack, volume dial, and channel dial are attached to the motherboard. Be sure to pull the motherboard downward so they clear their respective slots in the case.
-

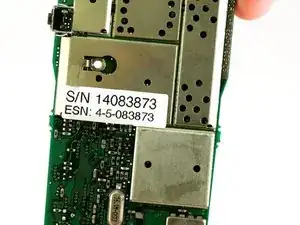

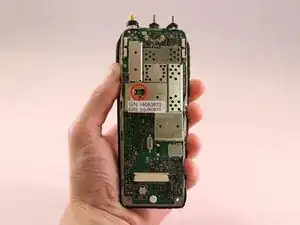

Lift the motherboard completely free of the case.
-
To reassemble your device, follow these instructions in reverse order.
