Einleitung
Speakers will sometimes rupture from extended periods of high volume. Speakers may also malfunction due to old age. Without a speaker, many devices can not be used. This guide helps you replace the speakers for the ComNet Ericsson Panther 600P.
Werkzeuge
-
-
Look for the release button on the back of the radio.
-
Press the button and pull down on the battery at the same time. The battery will come free.
-
-
-
Using a T15 Torx screwdriver, unscrew the two screws.
-
Using a plastic opening tool, pry the internal case from the external case.
-
-
-

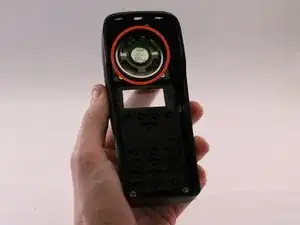

Locate the device's speaker inside the front panel of the exterior case.
-

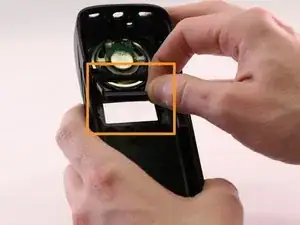

Locate the display and speaker stabilizer.
-
Lift the stabilizer up from the bottom and pull the stabilizer out of case.
-
-
-

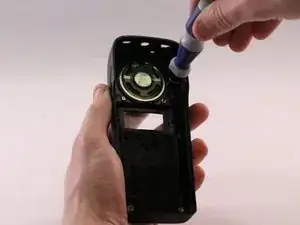

Locate the two 3.75mm screws holding the speaker to the exterior case.
-

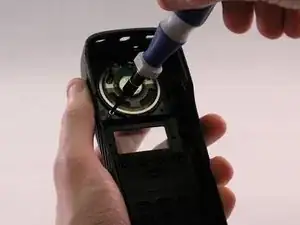

Using a T15 Torx screwdriver, unscrew the 3.75mm screws.
-
-
-

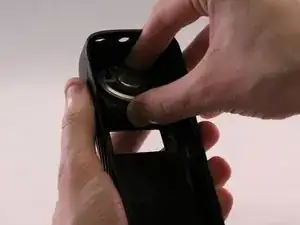

Lift up on the bottom of the speaker to detach the speaker.
-

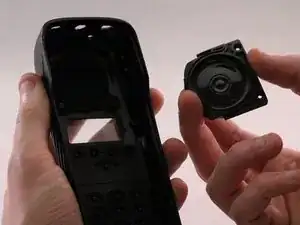

Pull the speaker out of the case.
-
To reassemble your device, follow these instructions in reverse order.
