Comfort Zone CZ6C Fan Blades Replacement

Schwierigkeitsgrad

Easy

Schritte

2

Zeitaufwand

5 Minuten

Einleitung

Replacing your fan blade is simple and requires tools found around your household.

  1. g1LFlNVckSXPhQt2
    g1LFlNVckSXPhQt2
    3A6IsKfhUSuumEZS
    VLCOJwE6GMVKpMfT

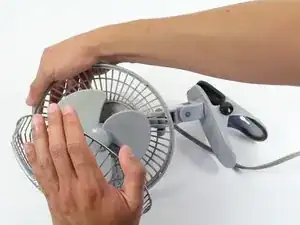

    • The metal cage is kept in place by three plastic tabs on the plastic body. Focus your pulling around these tabs to make the job easier.

    • In order to remove the metal cage, place one hand firmly on the back plastic body and your other hand on the metal cage.

    • Now work your way around the edge of the fan cage and pull it away from the plastic body.

  2. OLTW1CYST3rO4TJc
    OLTW1CYST3rO4TJc
    QTKnUPkbZdxfrb6l

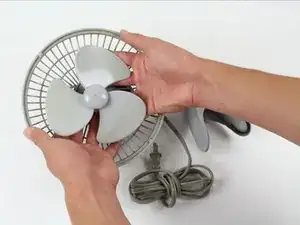

    • To remove the fan blade, reach behind it and slowly pull it towards you.

    • If the fan blade axle has any hair or dirt, then clean it with a cloth to avoid further fan blade blockage.

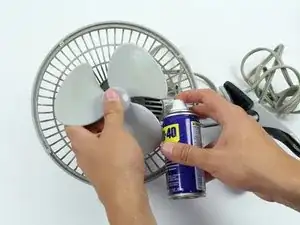

    • If you are having difficulty removing the fan blade, then generously apply WD-40 to the fan blade axle.

Abschluss

To reassemble your device, follow these instructions in reverse order.
