Commodore 64 3AG fuse Replacement

Geschrieben von: Silvanus Clarke
  • Kommentare: 1
Commodore 64 3AG fuse Replacement

Schwierigkeitsgrad

Very easy

Schritte

5

Zeitaufwand

1 Minute

Einleitung

A 3AG fuse is a glass - bodied fuse designed to break an electric circuit if the current exceeds safety levels in a Commodore 64 device

  1. hTQKhSEIXuTeobMx
    hTQKhSEIXuTeobMx
    XArRRoj5GSlHOVU1
    CWZVFKBPIdlcBgER

    • 1. Remove three 6.75mm ph2 screw heads from the casing

  2. FZosRpMYQtTTP6vx
    FZosRpMYQtTTP6vx
    fBemOm4g5hUsUWtJ

    • 2. Split the case of the C64 open by pulling up on the case towards you

    • Do not pull too hard that you break the clips.

    Good advice, but is there a reliable way of keeping the clips intact?

    coryengel -

  3. CJDBm6X2CZMH4EdE
    CJDBm6X2CZMH4EdE
    mmAkonZ2srkMUrQi

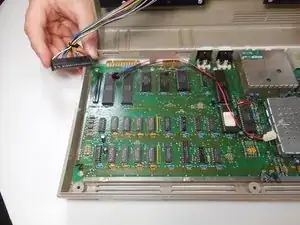

    • 1. Detach the multi-colored wire bundles that's connected to the motherboard

    • In this picture, the power indication LED (connected to the black and red wires) is not fastened to the keyboard panel, yours might be different.

  4. g1nIBMdNELuMkUQc

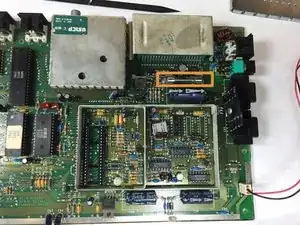

    • 2. Find the 3AG fuse located next to the joystick ports and On/Off switch

  5. ixauR1JchxPYwREY
    ixauR1JchxPYwREY
    KGSJy3WI3trRShDU

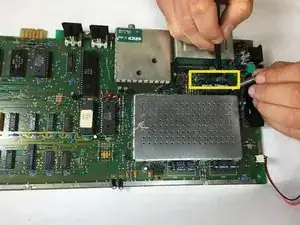

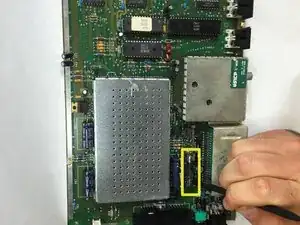

    • 3. Using the ifixit splugger, prop out the 3AG fuse from the clip.

    • * Replace the 3AG fuse by inserting the new fuse and letting it pop into the clip

Abschluss

To reassemble your device, follow these instructions in reverse order.
