Commodore 64 VIC Chip Replacement

Geschrieben von: Silvanus Clarke
  • Kommentare: 3
Commodore 64 VIC Chip Replacement

Schwierigkeitsgrad

Very easy

Schritte

5

Zeitaufwand

1 Minute

Einleitung

The Video Interface Controller (VIC) is is the graphics chip for the C64.

  1. hTQKhSEIXuTeobMx
    hTQKhSEIXuTeobMx
    XArRRoj5GSlHOVU1
    CWZVFKBPIdlcBgER

    • 1. Remove three 6.75mm ph2 screw heads from the casing

  2. FZosRpMYQtTTP6vx
    FZosRpMYQtTTP6vx
    fBemOm4g5hUsUWtJ

    • 2. Split the case of the C64 open by pulling up on the case towards you

    • Do not pull too hard that you break the clips.

    Good advice, but is there a reliable way of keeping the clips intact?

    coryengel -

  3. OyAZvKGHFDfwRoQM
    OyAZvKGHFDfwRoQM
    4KJtF5upUZLCqxHM

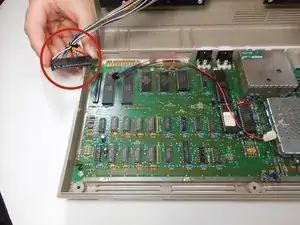

    • 1. Detach the multi-colored wire bundles that's connected to the motherboard

  4. ltjDsGRSalahkZ1x
    ltjDsGRSalahkZ1x
    rAMTNvfRtwqmZJPT

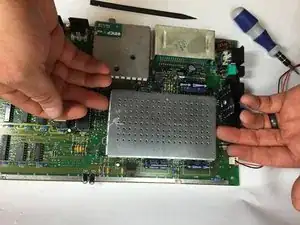

    • 2. Without using any tools prop up the metal VIC plate with both hands to expose the VIC chip.

  5. BG2LZPy651EO53rY
    BG2LZPy651EO53rY
    njc4DvRFyIbgDyVd

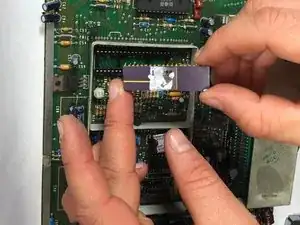

    • 3. Use a Phillips screwdriver to pry up the VIC chip. Then, use your hands and with small pressure pull it away to remove it from the motherboard.

    • You can insert a new VIC chip by making it clip back in on the board

    Carful with that removal, you can easily bend legs or put too much stress on the chip itself. Also much preferred to use a *flat* screwdriver and make sure to not bruise any traces on the motherboard. The proper way to do it is to also remove the metal frame around that area, then use a chip removal tool if available - or at least be able to lift the chip carefully from both sides evenly.

    Bård Larsen -

Abschluss

To reassemble your device, follow these instructions in reverse order.
