Compaq Evo N1000v Fan Replacement

Geschrieben von: Alex Hernandez
  • Kommentare: 6
Compaq Evo N1000v Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

29

Zeitaufwand

Keine Schätzung

Einleitung

A guide on how to remove the Fan.

  1. IVp4JMGehWTGhukw

    • Flip the laptop over with the rear panel facing forward.

  2. 26AHyZ1XSHKnZYXF

    • Using a TR8 Torx screwdriver, remove the two T8 Torx screws that secure the LED cover to the base enclosure.

  3. UXcadkOxJwyrQcPb

    • Flip the laptop back over with the front facing forward. Open the screen.

    This step could likely be removed.

    H. Nye -

  4. YTd2GKBUeVY3eFqc

    • Locate the F1 and F2 keys near the top left corner of the keyboard.

    This could be where to tell users to flip the computer over and open it if that is deemed necessary.

    H. Nye -

  5. ikVXSlZLmHrBqjhT

    • While holding the F1 and F2 keys, insert a spudger between the keys into the notch in the LED cover. Lift up.

  6. QOjYJBvPVIjoO3RJ

    • Locate the Scroll and Pause keys near the top right corner of the keyboard.

  7. e1JGuqmvftoRZdBG

    • While holding the Scroll and Pause keys, insert a spudger between the keys into the notch in the LED cover. Lift up.

  8. imX4T24lhWwLlnSM
    imX4T24lhWwLlnSM
    3P1QWubE5kGIHTcC

    • Insert a spudger between the F7 and F8 keys. Lift up to remove the LED cover.

  9. 1FM6LFQ5cZehHxCE

    • Lift the back edge of the keyboard and pull towards the screen.

  10. ZxNSGAtyuYFKaXEf

    • Pull the cable and lift up to release.

  11. XAn6bZu5VxKJSFcn

    • Remove the keyboard.

  12. rBv2sx4hKqGtnZbX

    • Disconnect the cable connecting the fan to the system board.

  13. OLgSLcT1SuJvEgWT

    • Remove the four screws in the copper plate.

  14. ow1IEixJxdMiNOVA

    • Remove the heat spreader by pulling the whole assembly up and out of the computer.

  15. fnSYUS5I3iBBLMG4

    • Close and Flip the computer bottom side up with the rear panel facing forward.

  16. OlareLOhdkyG132N

    • Using the TR8 Torx screwdriver, remove the six Torx screws shown in the picture.

  17. q2sOKmiLL1WPgBMI

    • Remove the battery

    • Remove the screw from the metal support on the case edge with a Torx screwdriver.

    • Flip the computer top side up with the front open and facing you

    I suggest adding a step showing how to remove the battery, and how to identify the palm rest for those who need extra help.

    H. Nye -

  18. i1i3YqCuoCOkHSxe

    • Lift up the palm rest from the front edge and swing it towards the screen.

    I suggest adding a picture of the palm rest from the top.

    H. Nye -

  19. R4qgLUuoixJqGRGM

    • Locate the first connector. Disconnect by firmly pulling up.

  20. o2AdYEgQRgBQQSIL

    • Locate the second connector. Remove by firmly pulling up.

  21. IDGY2SNmW4UAPY2v

    • Remove the palm rest.

  22. wAabE4DcjXPYZS6s

    • Turn the base bottom side up.

  23. edbCtJs2SrvEZaPS

    • Remove the two TM 2.5mm x 8.0mm screws that secure the top cover to the base.

  24. tddjdIQCfVcRHHHM

    • Turn the base top side up with the front facing forward.

  25. SITkYwfroI2vrhK1

    • Remove the three TM 2.5 mm x 5.0 mm screws that secure the top cover to the base.

  26. fXKg5nchPPBK4BMc

    • Lift the top cover straight up about one inch, then slide forward until the microphone cable is exposed.

    • Disconnect the microphone cable from the system board.

  27. 2jBWSvtniFEsGXUf

    • Remove the top cover from the base.

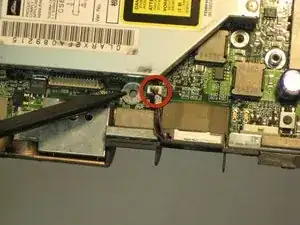

  28. 5ZUJPsh5ADxCNOrj

    • Disconnect the fan cable from the system board.

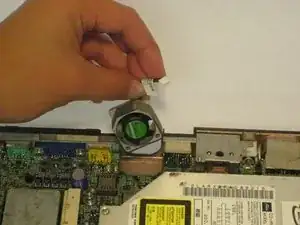

  29. eOTQufouB5OmIEEK

    • Remove the fan from the base.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Alex Hernandez

Mitglied seit: 14/04/10

46 Reputation

2 Kommentare

Remove battery FIRST before you do anything. Then remove all the screws on the back of the computer. The you can go to the front and follow all the steps afterward.

iam765 -

Please DO NOT firmly remove any connectors. Most connectors have locks. In step 20 you can see the two different colors of the connector the bottom is black and the top (the lock) is brown. Each side of the lock sticks out further than the connector. One side at a time pull back on the lock. Connection should come out with no force. to reconnect, seat connection and push lock back in place. If any issues try unlocking and re-seat connection.

iam765 -
