Compaq Mini 110 Screen Replacement

Geschrieben von: alea
  • Kommentare: 3
Compaq Mini 110 Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

18

Zeitaufwand

5 Minuten

Einleitung

Maybe it's cracked. Maybe you brought a magnet too close to it. Either way, the screen needs replacing and here's how to do it.

  1. UEO2dgYZuXY26kga
    UEO2dgYZuXY26kga
    OQXLIULYvAEBPODy

    • Locate the battery and the battery tabs on the bottom of the Compaq Mini.

  2. RdlPGLxVTtaASjCc
    RdlPGLxVTtaASjCc
    OX5g1TPXCnFxRtp3
    y5MmE6QnMyP32gUg

    • Push both tabs inward simultaneously and slide the battery out.

  3. RJxM1ofXbg2xtJ1t
    RJxM1ofXbg2xtJ1t
    fHmRypnOTH3pUmvv

    • Use a Philips #0 screwdriver to unscrew the two screws covering the memory compartment on the bottom of the laptop and remove the cover.

  4. bvUCyTyIolx2GMul

    • Push out the side tabs simultaneously and pull out the old RAM module.

    • When inserting a new RAM stick, be sure to evenly insert the gold pins in the same orientation that the old module was removed. While sliding the module in, press the side tabs in place.

  5. LQJJaaLrtsHACFmh
    LQJJaaLrtsHACFmh
    hkhchQLUL1bboxsk

    • Remove the rubber pads located on the corners of your Compaq Mini.

    • There may be junk underneath it. This is residue left from the glue that held on the rubber pad. Just scrape it away to find the screw.

  6. MBTstphaPTO1lHfF
    MBTstphaPTO1lHfF
    QoMVqYB5ljVU3dpj

    • Unscrew all the corner screws. There are four total, one under each rubber pad.

  7. ImDeQUmZRYrnZFZU
    ImDeQUmZRYrnZFZU
    gGIFLba5r4scdKOl

    • Unscrew the screw for the bottom case located in the RAM compartment.

    Falta um passo, pois nos modelos COMPAQ MINI 110, existe um parafuso que segura o teclado, que se encontra bem escondido dentro da cavidade que encaixa a bateria.

    Amilcar Correia -

  8. uKu121iFiAVHyMVK
    uKu121iFiAVHyMVK
    mrVDbgkVZlFeDkJh

    • Remove the three screws in the silver tabs at the back of the keyboard.

    • These are located at the back of the base under the screen.

    • Lift the keyboard away from the laptop.

    3 screws in red circles are actually on metal tabs in the battery compartment, 1 deeper than the other 2. There is a keyboard symbol for each of the 3 screws.

    Step 8B: Lift out keyboard by pushing upwards on the 2 accessible metal tabs. This is the most difficult step. Lack of Quality Control during assembly may prevent the kevboard from lifting out without breaking!!

    John -

    This step may be performed after battery removal. Use care when removing ribbon cable: the white clips holding the black plastic "keeper" are fragile. Reassembly possible without white clips; however, jostling may cause the ribbon to come free.

    Jason L -

  9. BSfNAxtD63UkTMAr

    • Remove the three screws holding the panel in place.

  10. 6gQ5xO6mu1b4tSuB
    6gQ5xO6mu1b4tSuB
    vo1PGkfSIHdEbfqh

    • Pull up on the tab to remove the hard drive.

  11. KycdKCpHmpmtMr1Q

    • Remove the eight screws that are from the plastic top cover.

  12. sffApSROfGlhjnVI
    sffApSROfGlhjnVI
    gb51MbRLb1SJhP6X
    BaAvM5m4xQgErJr2

    • Pry up the top plastic cover using a spudger.

    • These two tabs under the screen need to be pushed in with a spudger.

  13. Dwsc6UKjJC22jAkk
    Dwsc6UKjJC22jAkk
    yeqwNmGLFREgoKsx

    • Remove the cable by carefully pulling it up.

    • Be careful when lifting up the cover because the track pad is still attached.

  14. akiraxYSi6RSrCk2
    akiraxYSi6RSrCk2
    u4TOlDDHnTNNZRZW
    bL2VPgExA1QSubBy

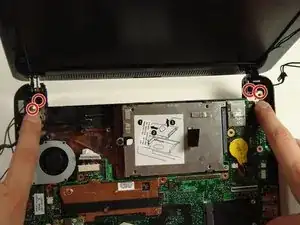

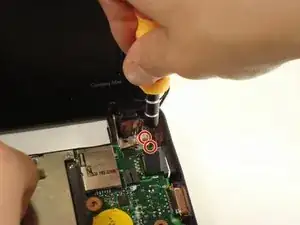

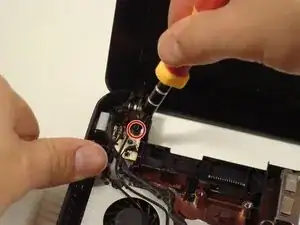

    • Remove the four screws that keep the bottom of the hinges attached to the base.

  15. MbksS3EnmpkhqrFq
    MbksS3EnmpkhqrFq
    HvKPIRKMCWWI1Jaj
    aSafaBOLBsm3bL2J

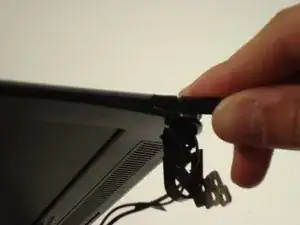

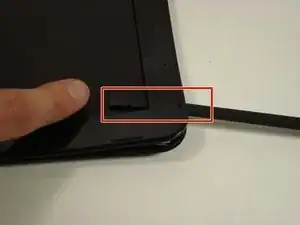

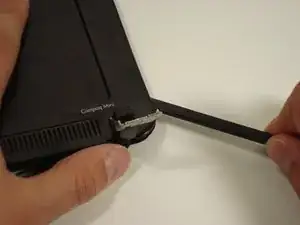

    • Pry off the top plastic cover of the display assembly.

    • The spudger may go all the way through to the screen-side of the cover. This is not a problem and won't damage anything.

    • There is adhesive tape holding the cover on.

  16. NKNJZgYcbVZse2Rm
    NKNJZgYcbVZse2Rm
    YNKpEKnToriEEBAx
    JtGK31Jh1qFVt5bY

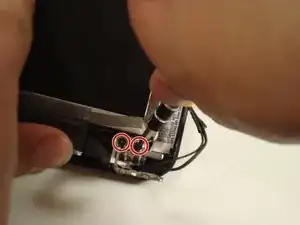

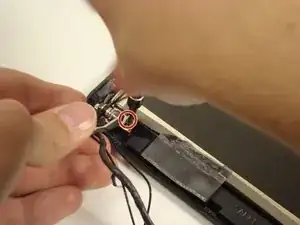

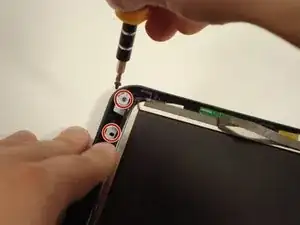

    • Remove the 4 screws keeping the screen on the plastic assembly.

  17. IxMwCbYnHyNcImrU
    IxMwCbYnHyNcImrU
    DBPbEUVjDA3lDAlF
    CEJq4aPPOgNgQejf

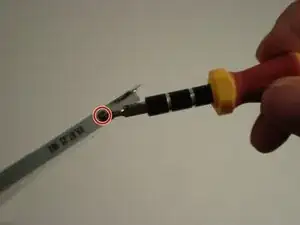

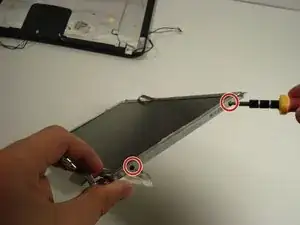

    • Take the screen off the metal connectors by unscrewing each side. Each side has 2 screws.

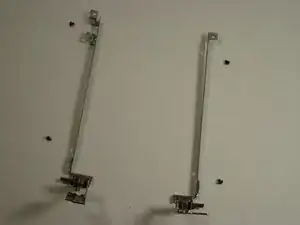

    • The last picture shows the metal connectors that attach it to the display assembly.

  18. bLIdCCjN3NaKglCq
    bLIdCCjN3NaKglCq
    TP15A3FnxTW2X5bv
    JtsUJOlE1bKibDnu

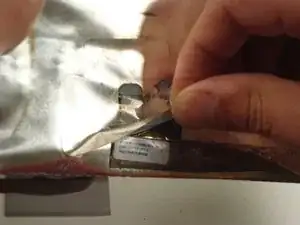

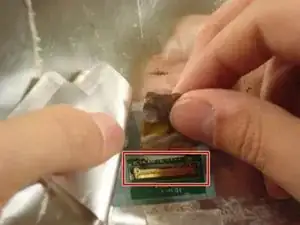

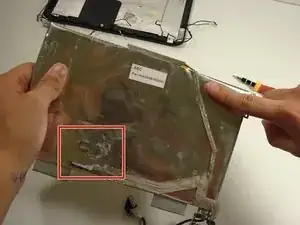

    • Detach the cable from the screen. It is connected under the foil flap.

    • The large wire on the back of the screen is for both the webcam and the microphone, as well as the screen.

Abschluss

To reassemble your device, follow these instructions in reverse order.
