Compaq Presario CQ58 Cooling / FAN system cleaning

Schwierigkeitsgrad

Difficult

Schritte

Zeitaufwand

20 - 30 Minuten

Einleitung

If your system overheats, in this video we will show you

how to disassemble / take apart Compaq Presario CQ58, clean the Cooling / Fan System and change the thermal Compound / Grease.

Please SUBSCRIBE to my channel ツ

Werkzeuge

Schritt 1

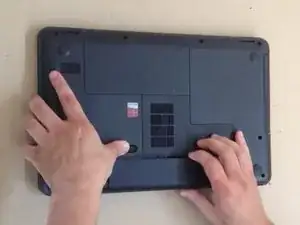

Switch-off the laptop and remove the battery.

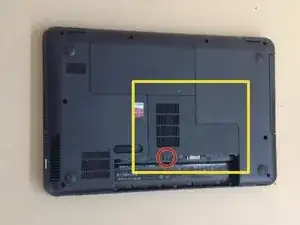

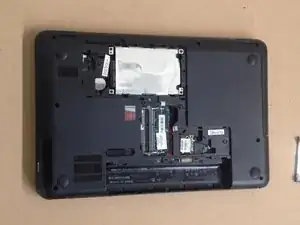

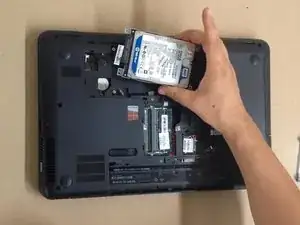

Remove the memory cover.

Schritt 3

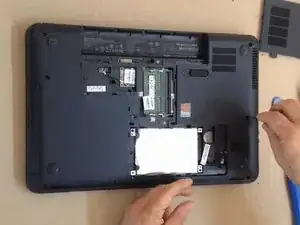

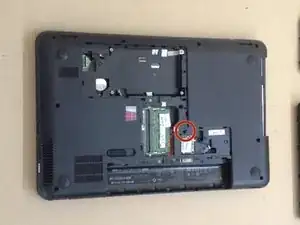

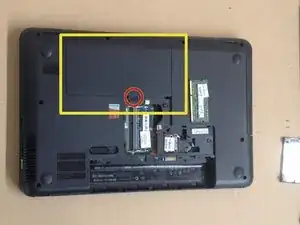

Near to the WiFi card you can see one screw hole with a keyboard symbol. This screw holds the Keyboard.

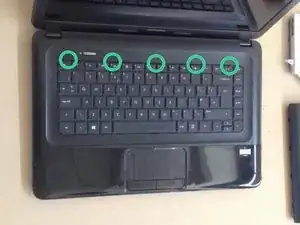

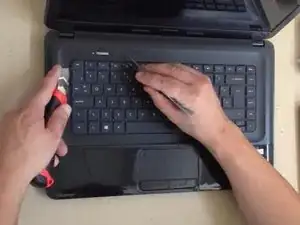

To remove the Keyboard, you must open 5X locking clips.

Schritt 4

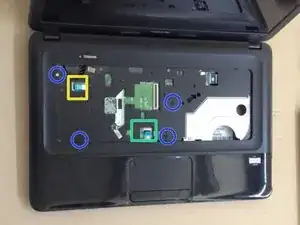

Under the Keyboard there are:
4x M2.5x5.0 screws
Mouse flex cable connector
Power On button flex cable connector.

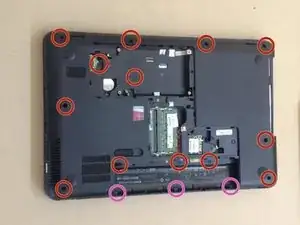

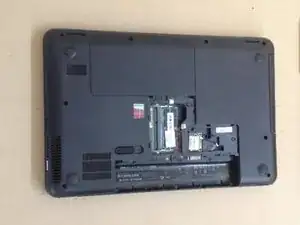

Unscrew the screws on the bottom side of the laptop:
13x M2.5x5.0
3x M2.5x3.0

Schritt 5

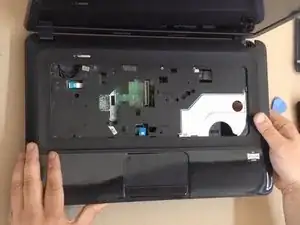

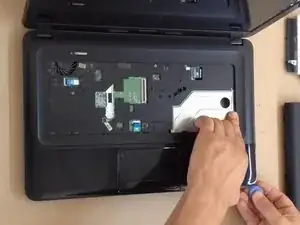

Use a plastic tool to separate and remove the upper case.

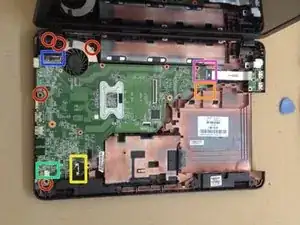

Unscrew 5x screws and disconnect:
LCD Display cable
Additional USB board cable
Power jack cable
Loudspeaker cable
SATA HDD cable

Schritt 6

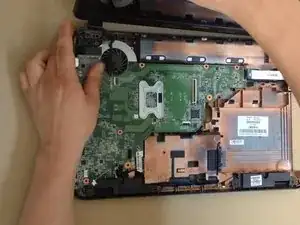

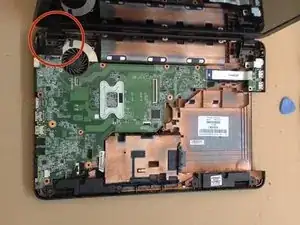

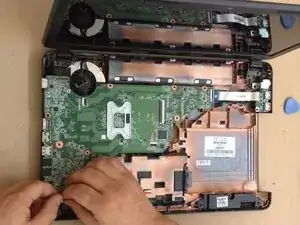

Move a little the LCD display hinge.

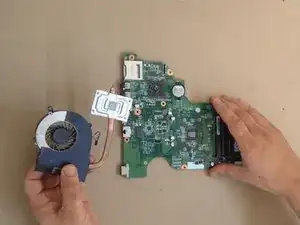

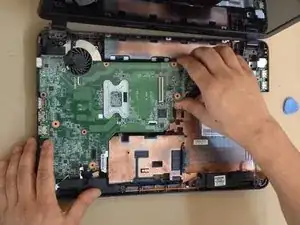

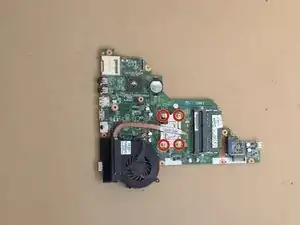

Remove the board by starting from the right side.

Schritt 8

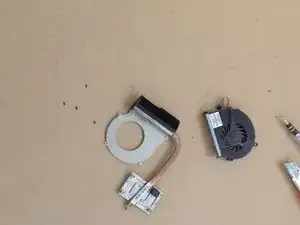

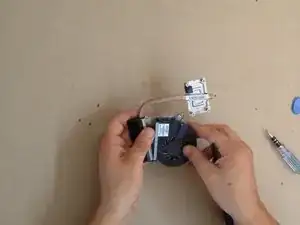

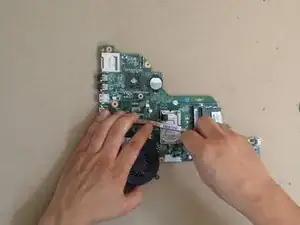

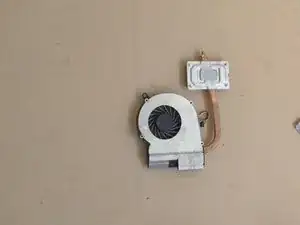

Open the fan and clean the dust from inside with a soft brush.

Schritt 9

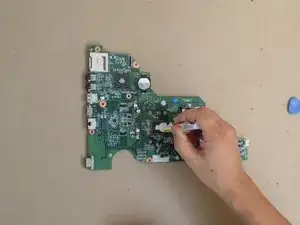

Clean the old thermal compound (from the CPU and from the heat-sink system).
Put a new thermal compound and start with reassembling.

Schritt 10

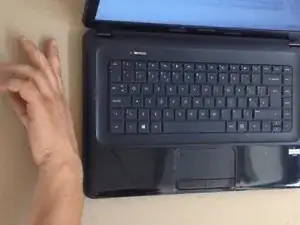

When you start the system, check that fan is working.
Did you do it successfully?

I wish i knew about ifixit 2 years ago when i had this laptop.This article was awesome.

AndreyMei -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

ZFix

Mitglied seit: 09/12/13

188213 Reputation

7 Kommentare

A brilliant demonstration really clear and well photographed, only one problem how the !&&* do you get the screws undone mine seem fixed solid

please let me into the secret if there is one.

thanks for the demo anyway.

JF.

alma francomb - 01/07/16

Thanks for this!

My Son and I have just successfully removed, cleaned and replaced the fan in his laptop by following the instructions above.

Great work.

David Cooper - 14/10/16

Thank you a lot !!!!

lone guldbæk kvist - 13/01/18

I think i did something wrong? I completed all the steps but my fan (which is brand new) keeps making this scary loud wizzy noise instead of a hum and did i not tightem the screws enough or they to tight?? Please help!

Layla - 30/05/18

Please ensure the fan metal case is not bent and ensure the fan is properly mounted. If this doesn’t solve your problem, your new fan is defective.

Brendan -

I can’t remove the laptop fan screw because they are too small, what are other alternative if you don’t have one of those small screwdriver?

mkgabudi - 16/02/19

my CQ58 fan was just stuttering, not even a complete revolution. took laptop apart, barely any dust so replaced fan. Still nothing , just the same as before.

it did power up for a minute just once but then when i had put it all back together, with every screw back in, it went back to stuttering again.

3 times i’ve had this thing apart and no one seems to have had this issue on the net.

any suggestions before it’s thrown the length of the garden?

cliff pooley - 25/11/20
