Compaq Presario CQ58 HDD Replacement

Geschrieben von: ZFix
  • Kommentare: 5
Compaq Presario CQ58 HDD Replacement

Schwierigkeitsgrad

Easy

Schritte

2

Zeitaufwand

5 - 10 Minuten

Einleitung

If you want to change not working Hard Disk Drive (HDD) or you want to upgrade it, this manual will help you to do this.

  1. NXWGQYCfHsrWTUUt
    NXWGQYCfHsrWTUUt
    15sVjSTEhYOqFOLd
    a4XQ44GD4Ihhu1eF

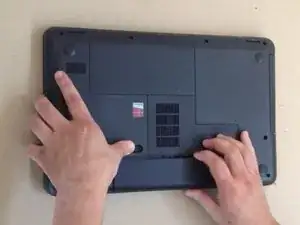

    • Remove the battery.

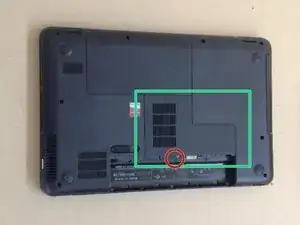

    • Remove the RAM Memory Cover.

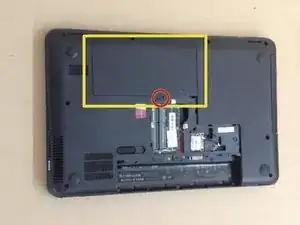

    • Remove the HDD Cover.

    good

    100% nice

    muhamad amin -

  2. c2JDAinGwCVNfTUI
    c2JDAinGwCVNfTUI
    YTKZIfIjfHSEXQMk
    s1CFkNUEUoKccpas

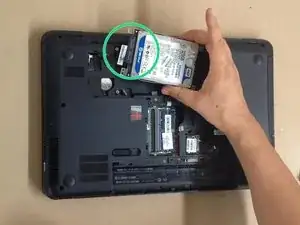

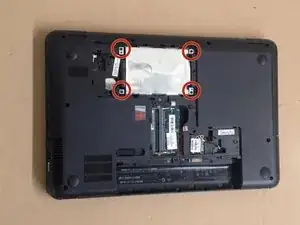

    • Remove the 4x screws and take out the HDD.

    • Disconnect the SATA cable.

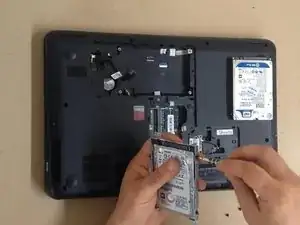

    • The Hard Drive is held in the HDD Caddy by 4x screws.

    • Did you do it successfully?

    i am looking for connector

    Shidhaye Parag -

    Hi, got some pats you are searching for by searching "HDD SATA connector for HP Compaq CQ58" on Google. The HDD SATA connector of this laptop can still be found nowaday.

    (I searched HP Compaq, because Compaq has been acquired by HP)

    Good day.

    Brendan -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

ZFix

Mitglied seit: 09/12/13

188213 Reputation

2 Kommentare

SSDs may not work. Tried two different ones already on one of these (a Crucial and an A-Data), and no luck. Not sure if it has to do with missing BIOS/UEFI options, or a whitelist of parts in said firmware.

Michael Adams -

thanks for this info!

Michael Auß -
