Compaq Presario CQ58 Keyboard Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

2 - 5 Minuten

Einleitung

How to change the Keyboard on a Laptop HP Compaq Presario CQ58.

  1. 6DOjfUlpliiIJlcp
    6DOjfUlpliiIJlcp
    OBvIWsCbVDHXQrVh
    2Ebf1HEFagFjmGVS

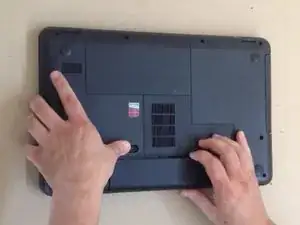

    • Remove the Battery.

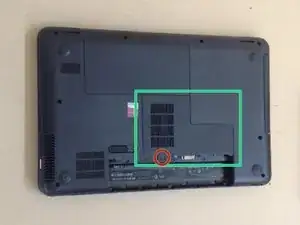

    • Remove the RAM Memory Cover.

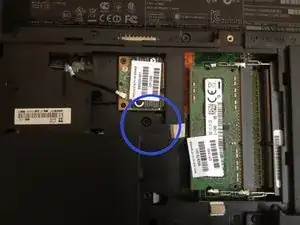

    • Under the cover you ca find one screw with keyboard symbol next to him. This screw is held the Keyboard.

  2. Jj2baVNitiSkQYdK
    Jj2baVNitiSkQYdK
    IE6yeNYfbUGULAow
    R5NFLau2tVSqD2xG

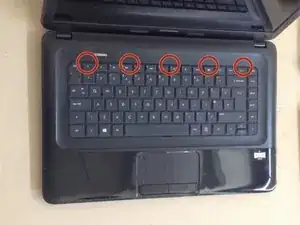

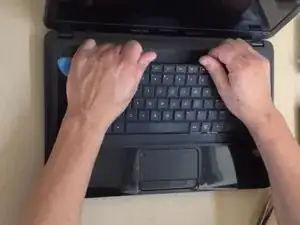

    • The Keyboard is held by 5X locking clips.

  3. LudAGLlgmZSLPk2F
    LudAGLlgmZSLPk2F
    C6V6Hy4EKWSFB42K

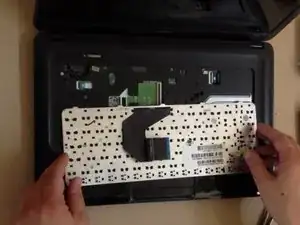

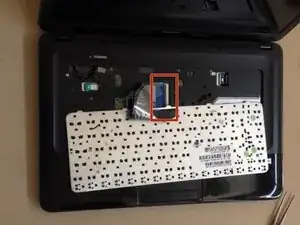

    • Disconnect the Keyboard Flex cable and install the new Keyboard.

    • Did you do it successfully?

    bonsoir j’ai reussis avec succes de remplacer mon clavier malgres deux touches qui sait decoller que j’ai remis en place avec un peu de difficulté mais sans gravité. Cordialement

    gilbert renner -

Abschluss

To reassemble your device, follow these instructions in reverse order.
