Compaq Presario CQ60 WiFi Card Replacement

Geschrieben von: Mike B
  • Kommentare: 0
Compaq Presario CQ60 WiFi Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

2 Minuten

Einleitung

  1. WSyC6euWgVd3IsQ5
    WSyC6euWgVd3IsQ5
    sFs5ELXArsLFFwV5
    BJR3jxij54XCuhrj

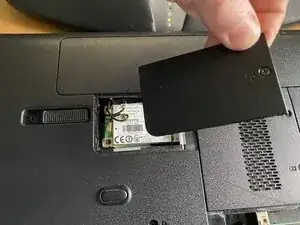

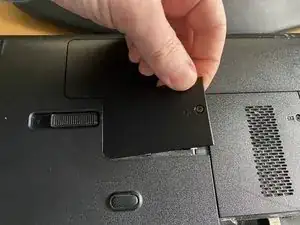

    • Loosen phillips screw

    • Lift and remove cover

  2. CDRSWTSVZMBOf5mA
    CDRSWTSVZMBOf5mA
    pJXXPMC62TQ1aqA4

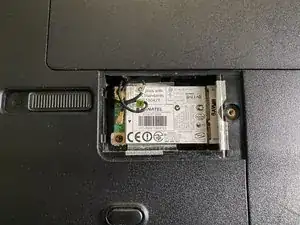

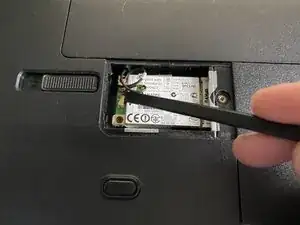

    • Using a spudger, remove the lower aerial cable

  3. QiJdHdRKPG1gx6In

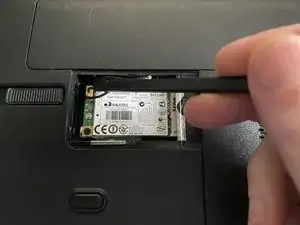

    • Remove the upper aerial cable

  4. POEaFYHelru2K1Yb
    POEaFYHelru2K1Yb
    RLUQYaCiUODHEUS2

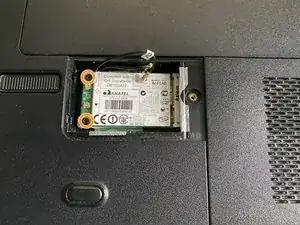

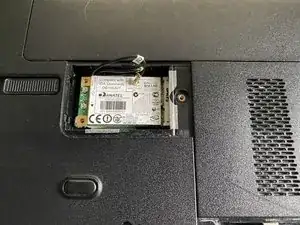

    • Remove 2 M2x3mm phillips screws

  5. ipM4ZLmJjCoPSsiQ
    ipM4ZLmJjCoPSsiQ
    tD6AwbltNmLshgZf
    GJZ5bHuWvaqk3q5Q

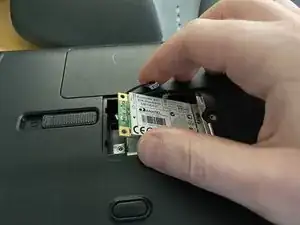

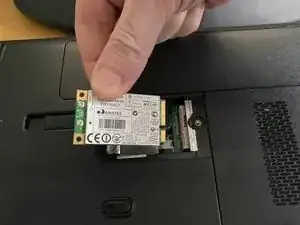

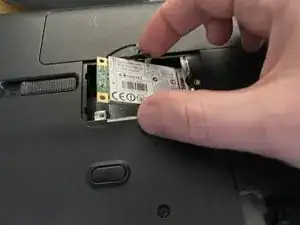

    • Lift card and screws end using spuder

Abschluss

To reassemble your device, follow these instructions in reverse order.
