Compaq Presario CQ62-215dx CPU Replacement

Geschrieben von: Breana Thibodeaux
  • Kommentare: 1
Compaq Presario CQ62-215dx CPU Replacement

Schwierigkeitsgrad

Very difficult

Schritte

14

Zeitaufwand

30 Minuten - 1 Stunde

Einleitung

The processor or CPU is the brains of your Compaq Presario CQ62-215dx. Over time it’s functions are overloaded, leading to overheating due to poor power flow or even failing completely. CPUs burn out often, but some can also be replaced.

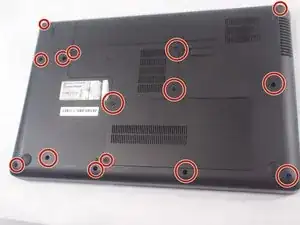

  1. ZoGMZX4oKh3g6Zbf

    • Turn the laptop upside down.

    • Remove all the 3.0mm Phillips #00 screws from the back cover.

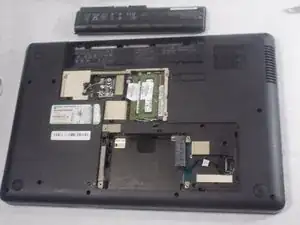

  2. wdldVKTO1naCOuiL

    • Remove the battery, RAM, and hard drive.

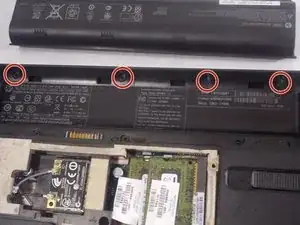

  3. xSjeNOv3iPeWQFGw

    • Remove four 1.2mm Phillips #00 screws under the battery.

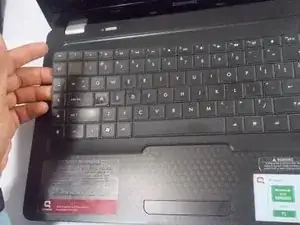

  4. ikVQSMmvbUJHTm1q

    • Turn the laptop over, and open the laptop cover.

    • Use a spudger or your hand to carefully remove the keyboard.

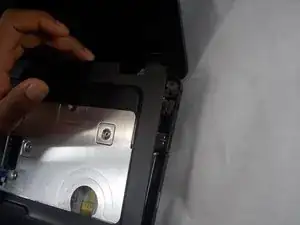

  5. NkJUrGheIxiSvodd

    • Use a spudger or your hand to lift the outside frame from the corner of the laptop.

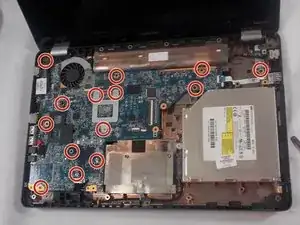

  6. Oq5tuBIJWxPKOdOB

    • Remove all the 1.2mm Phillips #00 screws from the motherboard and in the top corner that secures the fan.

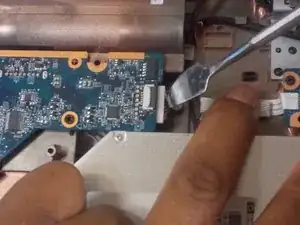

  7. OKAUU1XEOb3OXTkg

    • Unplug the wires connected to the motherboard with a spudger.

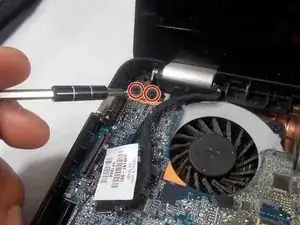

  8. T6LZ6kt5Uk2cnpNG

    • Remove the two 3mm Phillips #00 screws beside the fan.

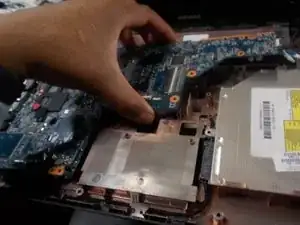

  9. cVjU6TfOcW263T2L

    • Lift the motherboard out carefully.

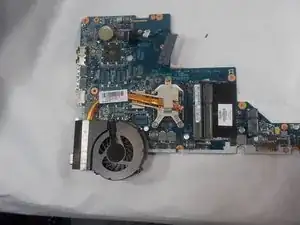

  10. 4ULXxqDEvhVq6SU4

    • When the motherboard is removed, flip it over, and you will have a view just like in the picture.

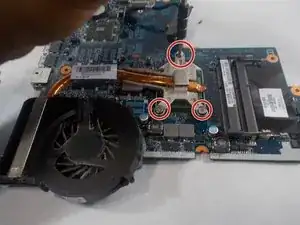

  11. ofma12fKfHJtLjkm

    • Use the Phillips #00 screwdriver to remove the three 2mm screws that connect the fan to the CPU.

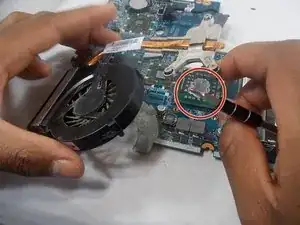

  12. TsLZpgm2DFCJXNa3

    • Remove the fan from the motherboard.

    • When reassembling, you will need to solder the fan back on to the CPU.

    How do i solder it back?

    Robert's got a quick hand -

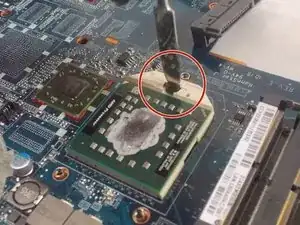

  13. B1nAQElwyZ6JRFGv

    • Use the metal spudger to twist the lock tab on the component.

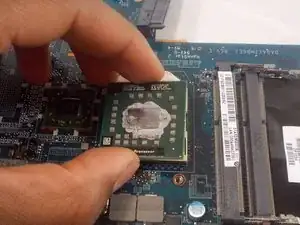

  14. XCcQhgsmuARPSORu

    • Remove current CPU and replace with new component.

Abschluss

To reassemble your device, follow these instructions in reverse order.
