Einleitung
Without a keyboard the computer becomes essentially unusable. In this guide, you will learn how to remove and replace the keyboard.
-
-
Shutdown the computer.
-
Remove all external devices.
-
Unplug the power, and any other cords, from the laptop.
-
Turn the laptop upside down, with the front towards you.
-
-
-
Slide the battery release latch to the left until the battery pops up.
-
Lift the front edge of the battery pack and swing it back to remove it.
-
-
-
On the optical drive there is small pin hole. Insert a paperclip or similarly sized object in the hole.
-
The Drive will pop a short way out of the computer.
-
-
-
Remove the 7mm Phillips #1 screw that secures the optical drive to the computer.
-
Grip the sides of the Optical Drive and slide it out until it is completely removed from the computer.
-
-
-

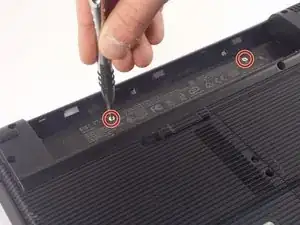

Remove the two 4mm Philips #1 screws that secure the switch cover to the computer.
-
Turn the computer display-side up with the front panel toward you.
-
Open the computer display as far as possible.
-
-
-
Insert a plastic opening tool into the slots located behind the [F5] key and lift the front edge of the switch cover until it disengages from the computer.
-
Insert a plastic opening tool into the slots located behind the [Insert] key and lift the front edge of the switch cover until it disengages from the computer.
-
Remove the switch cover.
-
-
-

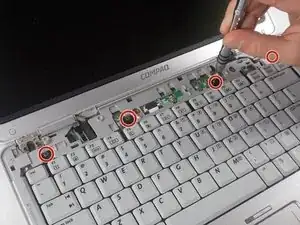

Remove the four 3mm Phillips #1 screws that secure the keyboard to the computer.
-

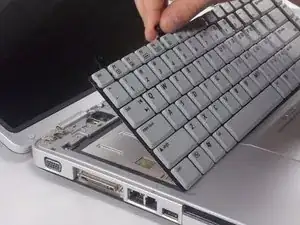

Swing the rear edge of the keyboard up and forward until it rests on the palm rest.
-
-
-

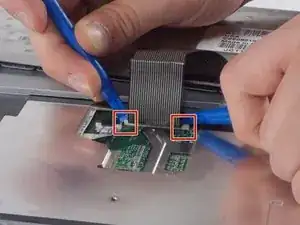

Use your fingernails or two plastic opening tools to push the white portion of the ZIF connector towards the hinge of the computer.
-
Remove the ribbon cable from the ZIF connector.
-

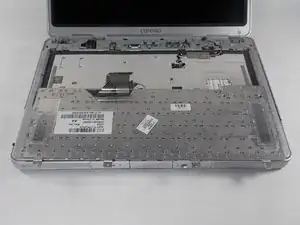

Remove the keyboard.
-
To reassemble your device, follow these instructions in reverse order.
