Compaq Presario v2000 Hard drive Replacement

Geschrieben von: Andrew
  • Kommentare: 1
Compaq Presario v2000 Hard drive Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

  1. YEGpddQJaJKUOLLf

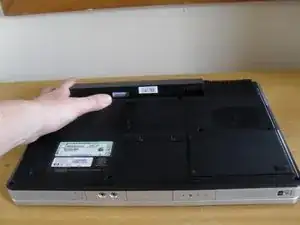

    • Remove the battery before starting

  2. GdgQOBNcyQQvndgr
    GdgQOBNcyQQvndgr
    POW4Xw2OMXoZLKqH

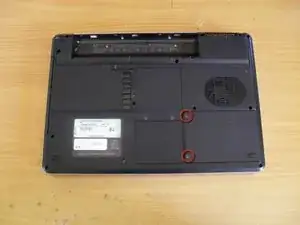

    • Loosen the two screw for the hard drive cover

    • The screws will stay attached the the cover

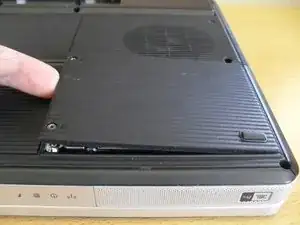

    • Lift the cover from the left side and remove

  3. Lx3y6LYm2xQJZhvA
    Lx3y6LYm2xQJZhvA
    j2HZfSUlAkeqMHlv

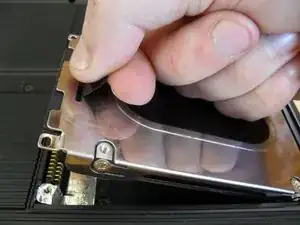

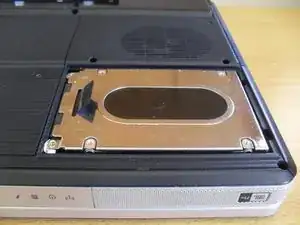

    • Lift the black pull tab on the hard drive

    • Lift the drive straight up out of the laptop

  4. SyDEMCxyaJUPI63Y
    SyDEMCxyaJUPI63Y
    QVMoNhdDBPNa1Ows

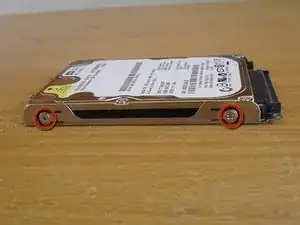

    • Remove the four screws on the sides of the drive (two on each side)

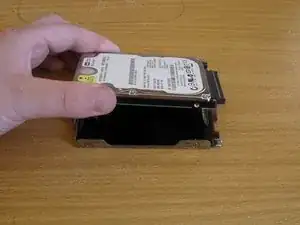

    • Remove the hard drive from the caddy

  5. WgG2Bwx6nOShl4Z2

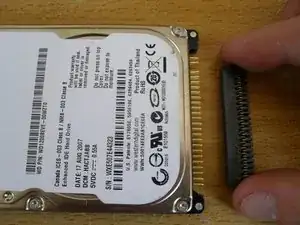

    • Pull the IDE connecter straight off the drive

    • Be sure to pull the connecter off straight so as not to bend the hard drive IDE pins

Abschluss

To reassemble your device, follow these instructions in reverse order.
