Compaq iPAQ Pocket PC 3830 Motherboard Replacement

Geschrieben von: Sedina Cavcic
  • Kommentare: 0
Compaq iPAQ Pocket PC 3830 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

Keine Schätzung

Einleitung

This guide is to help users replace the motherboard from the Compaq iPAQ Pocket PC 3830.

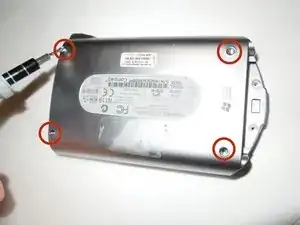

  1. 1X2Po62IpoFeKMuW
    1X2Po62IpoFeKMuW

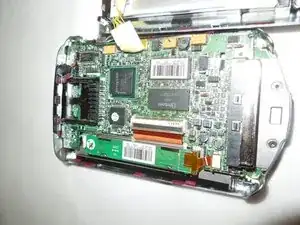

    qcRfI5uUpuTT3LNj

    • Remove the four 0.8mm Phillips #00 screws from the back cover.

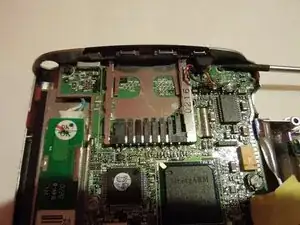

  2. BMKuiAMHcdXHXXPw

    • Remove the two screws on top of the motherboard and the two screws on bottom of motherboard

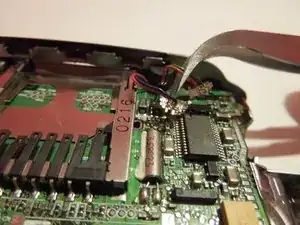

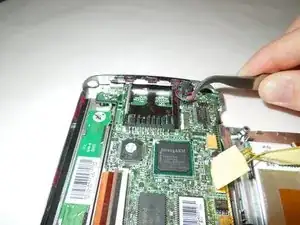

  3. h5Y6SYUSxdiARVdN
    h5Y6SYUSxdiARVdN
    hDVlmZdEQENFFocD

    • Detach the wires from their combs on the motherboard.

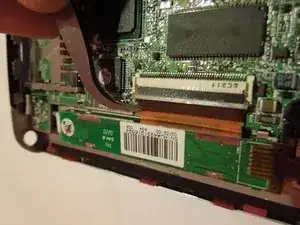

  4. OfLIwKuostVT4F21

    • Detach from comb that is located on motherboard.

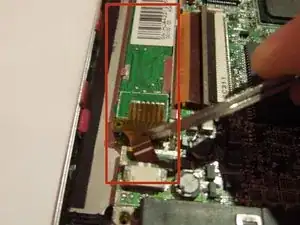

  5. eeFhkjMMOiNDBSsT
    eeFhkjMMOiNDBSsT

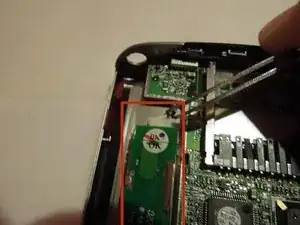

    vksconh1oeJ6GHWF

    • Remove the small piece from the motherboard.

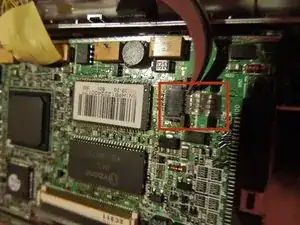

  6. uOT5TPbwVKYFEqXG

    • Use tweezers to remove last piece from the comb on the motherboard.

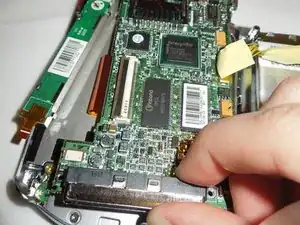

  7. IQUBlvCCCvGZdCSe

    • Remove the motherboard by simply lifting it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
