Conair Cord-Keeper 169XR Fan Grill Replacement

Geschrieben von: Candace
  • Kommentare: 1
Conair Cord-Keeper 169XR Fan Grill Replacement

Schwierigkeitsgrad

Moderate

Schritte

14

Zeitaufwand

20 - 30 Minuten

Einleitung

If you have dropped your hair dryer, the front grill may be dented or loose.

  1. byGDdI6RVJGHX1xo
    byGDdI6RVJGHX1xo
    cvb3U5JcJyZhkZmg

    • Unscrew the two 18 mm long Phillips #2 screws on the side of the hair dryer.

  2. lopLyh5iahJWWSVe

    • Be cautious of pieces that can possibly fall out when removing the face of the handle.

    • Once you have taken the screws out, take the top half of the handle off by lifting it off of the dryer.

  3. GHoIJX6WLWgQrXNb
    GHoIJX6WLWgQrXNb
    jOAqeLFSJbI66OqO

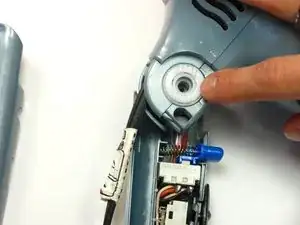

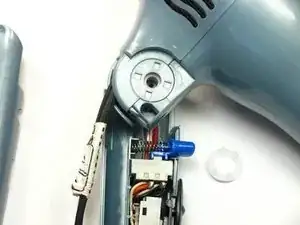

    • Remove the inner white disk piece by gently pulling it out with your finger nail.

  4. bfhKlv2BhKASNgEL
    bfhKlv2BhKASNgEL
    VIZUoNKHqiVlKW5J
    GaItvdYKQsJPsFJt

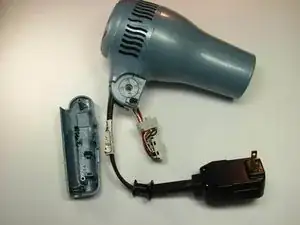

    • Gently remove the tan boxes (power supply) by wiggling them out of place and set them aside so you can take the back part of the handle off.

  5. 4QEGKZmncBlcbQDy
    4QEGKZmncBlcbQDy
    2dUcqXbhKwKgE46l

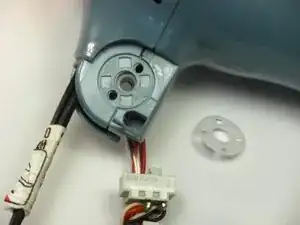

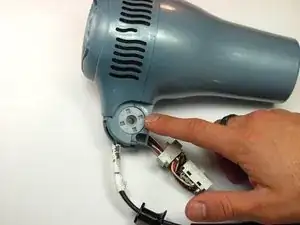

    • Remove the inner white disk piece from the base of the dryer head by gently pulling it out with your finger nail.

  6. 4XCFTVnYomTC1KfP

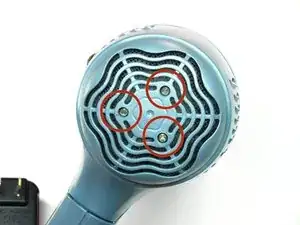

    • Unscrew the three 12 mm long Phillips #2 screws to remove the back of the hairdryer.

  7. efDHsNTmvnMBfNRQ

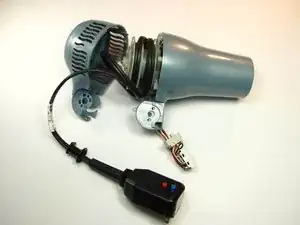

    • Once the three screws are removed, pop the back of the dryer off by wiggling it until it comes loose. This shouldn't take too much effort.

  8. aI6JXpEivQlC2kBD
    aI6JXpEivQlC2kBD
    etQ2NfFWwLIW4aXk

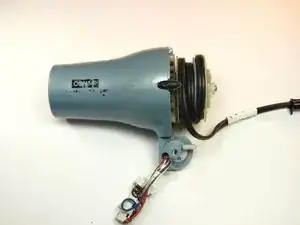

    • At this point, unwind the cord and lay it to the side so you can get to the screw in the middle easier.

    • Remove the single 12 mm long Phillips #2 screw in the middle of the cord track.

  9. lTei5FsQWKJppgSU
    lTei5FsQWKJppgSU
    wIvWHTNviTPDZiVF

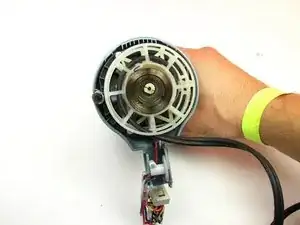

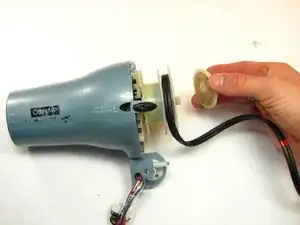

    • Take off the white cap that covers the heating coil. You will see a wound up piece of metal (cord retracting coil) underneath once the cap is removed.

  10. 1Txsl6OpEqqm433F
    1Txsl6OpEqqm433F
    pSNaohvN6VxAETi3

    • When removing the coil, make sure it stays wound up. It could very easily pop out, and you would have to wind it all the way back up and try to squeeze it back into the slot when you reassemble the dryer.

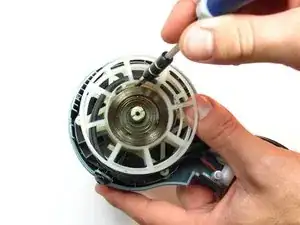

    • To remove the coil, use your screw driver to pop the coil out of the slot.

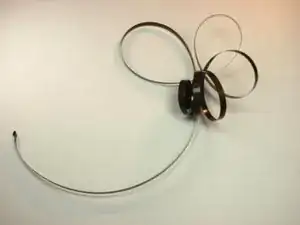

    • The second image is what the coil would look like if it came undone when you removed it.

    What is simplest way to rewind cord? Mine looked like the second image when I got that far with removing the parts. It was already a tangled mess. I am going to try and rewind. Where do the bent ends of the coil go? I have started with putting one in groved slot....but if even can get it wound tight enough....I don't see where the other bend would go. Thank you, Susan

    Susan Letham -

  11. 4FCbLpXeyipTiRaK
    4FCbLpXeyipTiRaK
    OIApHiIn4neWIk2C
    lMTpoctWbO5BUXYw

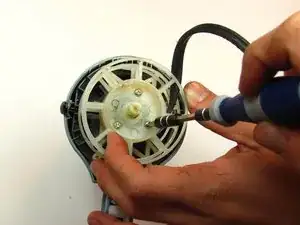

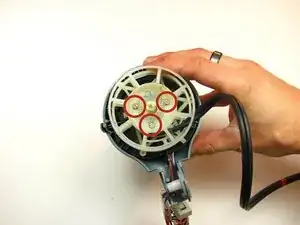

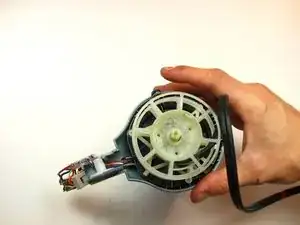

    • Once the coil is removed, unscrew the three 11 mm long Phillips #2 screws underneath to remove the retracting wheel.

  12. elLuF2iyMaROUFJp
    elLuF2iyMaROUFJp
    HUMhdv1hoHfENXwi

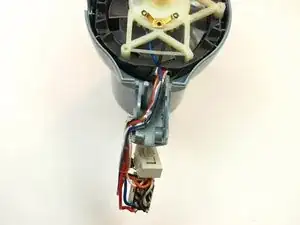

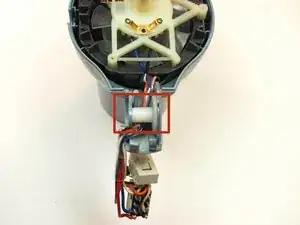

    • On the back of the dryer, remove this plastic piece so the wires don't get caught.

  13. j2f2nZtstMtAupvQ

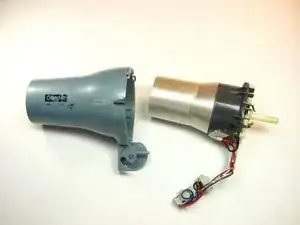

    • Once the cords aren't blocked by that white piece anymore, you can just gently pop the outer shell of the dryer head off.

  14. MDJEkDIqEtN5cHfS
    MDJEkDIqEtN5cHfS
    ERYWEmVDBPOmOSnw

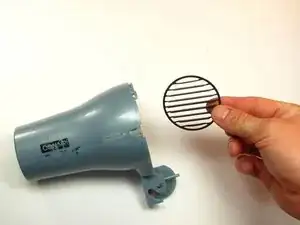

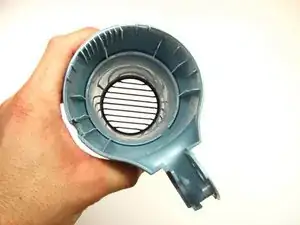

    • Once you have removed the inner parts of the dryer head, you can just pull out the front grill piece and replace it with a new one.

Abschluss

To reassemble your device, follow these instructions in reverse order.
