Conair Infiniti PRO Curling Iron Heating Element Replacement

Geschrieben von: Jonathon Bruer
  • Kommentare: 0
Conair Infiniti PRO Curling Iron Heating Element Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

20 - 30 Minuten

Einleitung

This guide will show how to replace the barrel heating element of your Conair Infiniti PRO Curling Iron. It requires the housing, power cord and motherboard to be removed beforehand.

  1. Xco6Bokn1KWQaPbY

    • Remove the Philips #1 28 mm.

    • Make sure device is unplugged and cool before attempting to replace parts.

  2. WKbdPC4dnmySlvTr

    • Remove the Philips #1 22 mm screws.

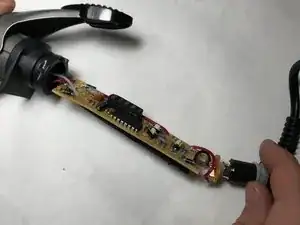

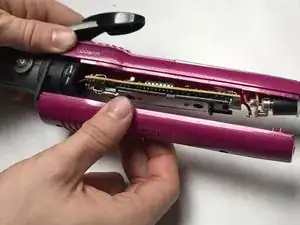

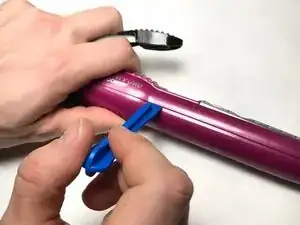

  3. xkUBTSub6UhloNtK
    xkUBTSub6UhloNtK
    xQ3DGVSON22FxIc5
    3If1pjddPQPaYu5x

    • Pry off the housing using a plastic spudger.

  4. 5hMKh6SWXigSChxp

    • Pull power chord out.

  5. LeFidDNQsSZEifM6

    • Heat up your soldering gun and desolder the red wire from the motherboard as shown.

    • Note the location of wire attachment.

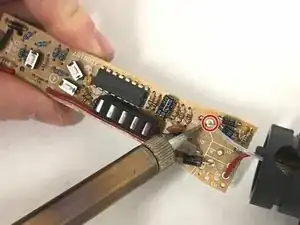

  6. sDprsVIRIfyNY61h

    • With your soldering gun, desolder the white wire from the motherboard as shown.

    • Note the location of wire attachment.

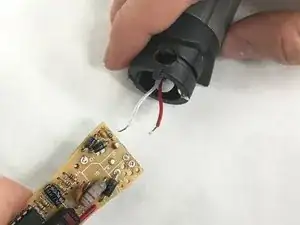

  7. 4GGwCPJJB4ElelNq

    • Once both wires are desoldered the motherboard can be removed.

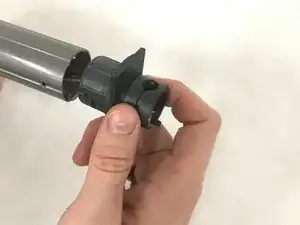

  8. 5HFYjysIariLV21P
    5HFYjysIariLV21P
    TFiiRgKgfaYVmYua

    • Remove the heating element mount. This will free up the heating element barrel for replacement.

Abschluss

To reassemble your device, follow these instructions in reverse order.
