Conair True Glow Lighted Mirror LED Bulb Replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

2 - 5 Minuten

Einleitung

Use this guide to replace a faulty or shattered light bulb in your Conair True Glow Lighted Mirror (model TGBE104XCLED).

The light bulb is a piece of hardware that is used to convert electricity into light, consisting of a source of illumination enclosed within a transparent or translucent shell, typically having a rounded shape. For this device, use an all-purpose fluorescent 8W (watt) LED light bulb.

If your bulb is shattered, make sure to wear proper clothing and eyewear before beginning this guide.

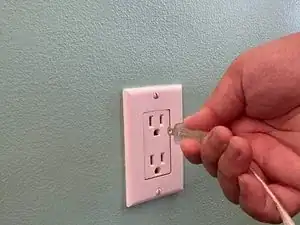

  1. SgnCLUOQMvVQ3JFW

    • Unplug and remove batteries to make sure the ring light does not turn on while repairing.

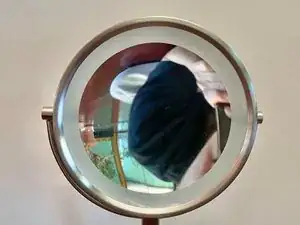

  2. JVcAFqZNiWJkuwAo
    JVcAFqZNiWJkuwAo

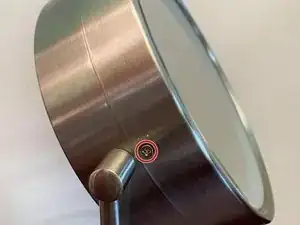

    U3kE5FdyayHAS6wI
    AARATQxGhZgnLQNw

    • Remove the two 2 mm screws on the side of the ring mirror (one on each side) using a Phillips #00 screwdriver.

  3. 1IynMMXuHgnRgX2V

    • Push the cover towards you and slide away from the rest of the mirror.

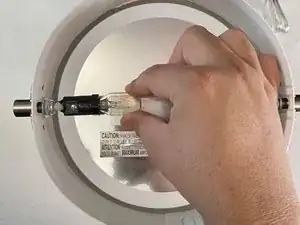

  4. da2U5khU2TE1HaNa

    • Using your hands, gently unscrew the old LED light bulb in a counter-clockwise direction.

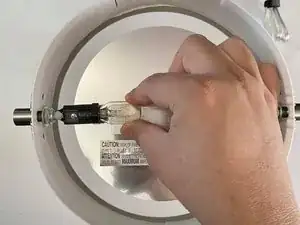

  5. F2prGMwHl5EIBZXx

    • Use your hands to screw in the new LED light bulb in a clockwise direction.

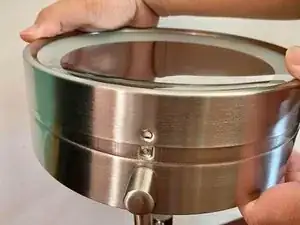

  6. XX11HL1cXUEYXRbs

    • Take the cover and push it back down in place.

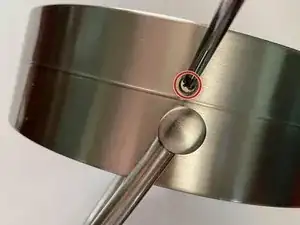

  7. HiKXKBfMo3pAdlDa

    • Screw in the two 2 mm screws on each side of the mirror using a Phillips #00 screwdriver.

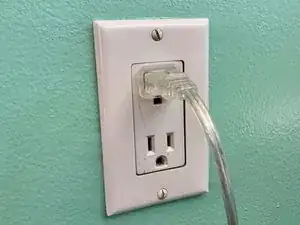

  8. 5POlUJAuDsyBIxWB

    • Plug the mirror in and reinsert batteries to turn it on.

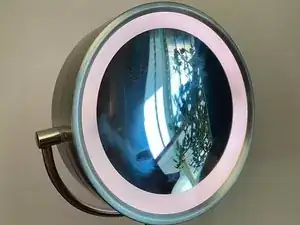

  9. ITuCuFyfmYttpoOF

    • Enjoy your fixed LED ring mirror light!
