Connect Four Electronic Handheld Speaker Replacement

Geschrieben von: Wil
  • Kommentare: 0
Connect Four Electronic Handheld Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

If your Connect Four Electronic Handheld does not make any sound, you may need to replace the speaker. This replacement guide will show you how to remove the back casing and remove the speaker. In addition, this guide will also show you how to re-solder the speaker wires.

  1. Fr2EuEkyVUKRoNKr

    • Make sure the Connect Four Electronic Handheld is off by allowing it to shut off automatically.

  2. I5tQRnou63qpFJpc
    I5tQRnou63qpFJpc
    MTENfwN2GhSGhj2w

    • Using a Phillips head screwdriver, remove the (9.1mm length) #2 screw in the middle of the battery casing.

    • Slide the cover off and remove the battery.

  3. qi6VnsCYIZgxOBDx
    qi6VnsCYIZgxOBDx
    U2ujSWZAAHaNCWTN

    • Using a Phillips head screwdriver, remove the four (7.1mm- length) #3 screws that hold the back casing in place.

    • Carefully remove the back casing.

    • When removing the back casing, make sure not to rupture the wires that connect the speaker to the circuit board.

  4. VGYveUU31VNywUxY
    VGYveUU31VNywUxY
    qDNRkCT6ENnf3jGH
    KjLAWX3BhllMIBDU

    • If the speaker is in working condition, but the wires are broken or disconnected, skip this step and move on to step 5.

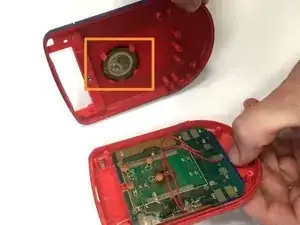

    • Locate the speaker on the back casing.

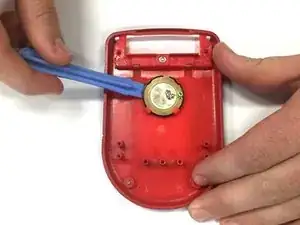

    • Using a spudger, wedge the speaker out of its place until it slides out.

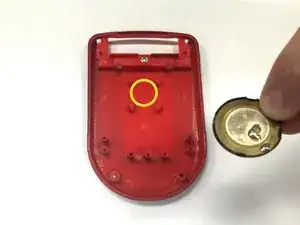

    • Take the replacement speaker and wedge it back into its space.

  5. dXJSQjYQ32WYCCF4

    • Using a soldering iron, solder both red wires to their appropriate connections.

    • Be extremely careful when using a soldering iron! Contact with the tip could cause severe burns.

Abschluss

To reassemble your device, follow these instructions in reverse order.
