Contour Roam2 Lens Unit Replacement

Geschrieben von: Jamie Maple

Kommentare: 3

Schwierigkeitsgrad

Difficult

Schritte

Zeitaufwand

30 Minuten

Einleitung

Follow this guide on how to replace the lens unit on your Contour Roam2 if your camera will not record properly or your lens is damaged or scratched.

Werkzeuge

Schritt 1

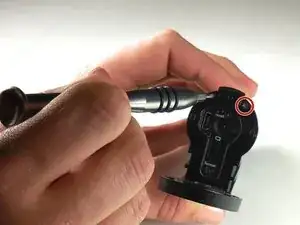

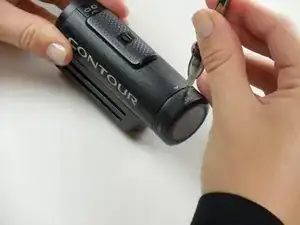

Using the phillips head screwdriver (PH000) locate and remove the 4.45mm (.175in) screw by the 180 degree graphic on the metal ring.
The screws in the camera are very small and can strip very easily. Apply consistent pressure when removing screws.

Schritt 2

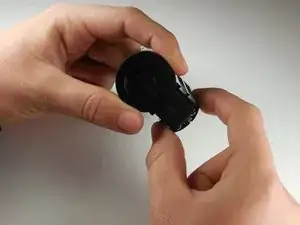

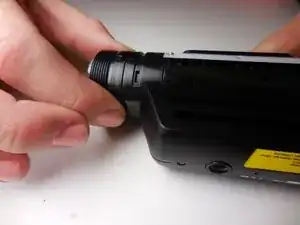

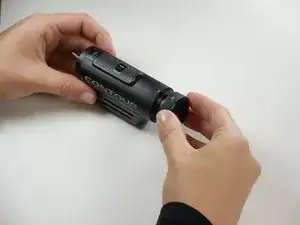

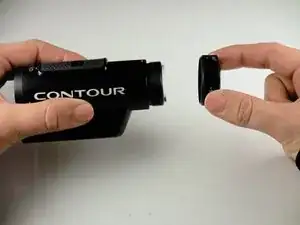

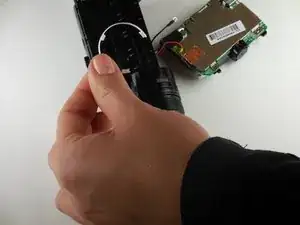

Rotate the metal ring counterclockwise until completely removed.

Schritt 3

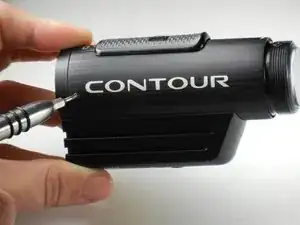

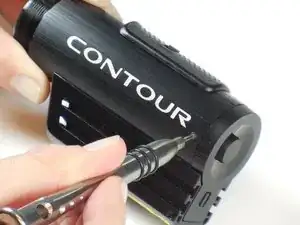

Using the phillips head screwdriver (PH000) remove the two 4.46mm (.175in) screws on each side near the back of the camera.

Schritt 4

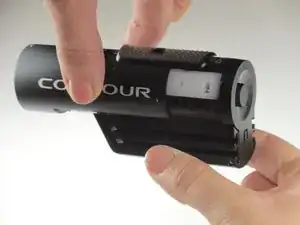

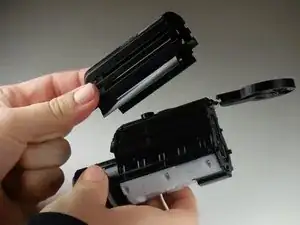

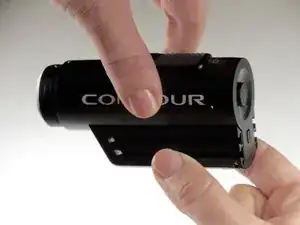

Grab the camera on both sides and slide the outer shell forward until completely removed.

Schritt 5

Lift the record slider out.
The record slider should come out easily no matter the position (forward or backward).

Schritt 6

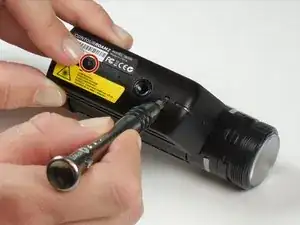

Using the phillips head screwdriver (PH000) remove the two 3.82mm (0.150in) screws on the bottom of mounting piece near the tripod screw-in.
The screws in the camera are very small and can strip very easily. Apply consistent pressure when removing screws.

Schritt 7

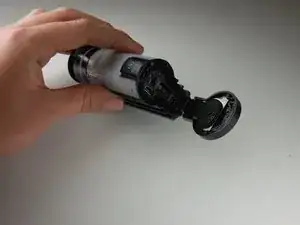

Open the back door by your thumb and index finger on sides of back door and pull upward.

Schritt 8

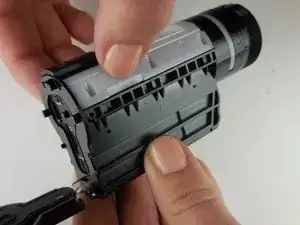

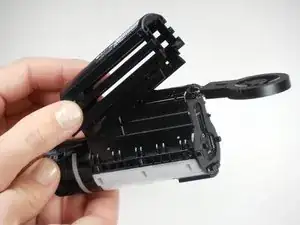

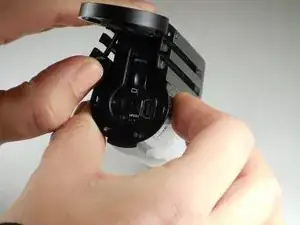

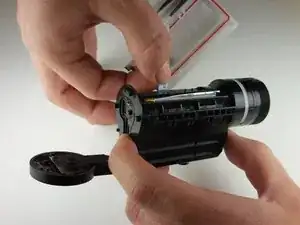

Using your thumb, pry sides outward on back of mount piece.
This will loosen mount piece for removal in proceeding step.
Side can be hard to pry outward. Using a flat tool such as a metal spudger, may help if your thumb is insufficient.

Schritt 10

Open the back door by your thumb and index finger on sides of back door and pull upward.

Schritt 11

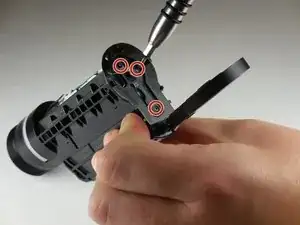

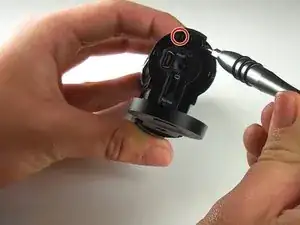

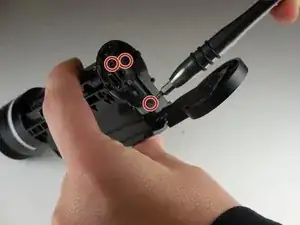

With the phillips head screwdriver (PH000) remove the two 3.31mm (.130inch) screws located at the top, above the reset button.

Schritt 12

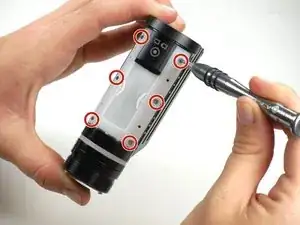

Also with phillips head screwdriver (PH000) remove the six 6.07mm (0.239in) screws along sides of large white piece.
The screws in the camera are very small and can strip very easily. Apply consistent pressure when removing screws.

Schritt 13

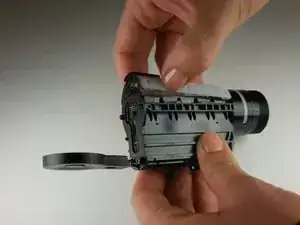

Locate notch on side of large white plastic piece.

Schritt 14

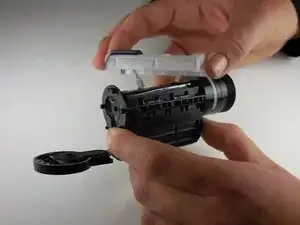

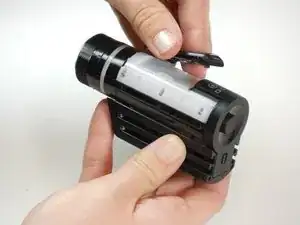

Remove white piece by pressing a fingernail in notch (located in previous step) and lifting up on white piece.

Schritt 15

The white piece is connected to logic board of camera by a ribbon connector.
To remove the white piece completely give a gentle pull on ribbon connector.

Schritt 16

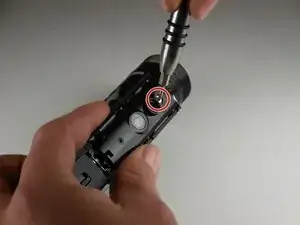

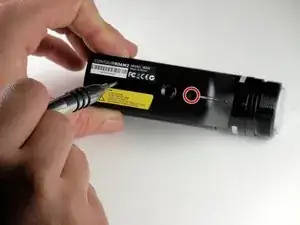

With a phillips head screwdriver (PH 000), remove the 5.54 mm (0.218 in) screw located next to the tripod screw-in.

Schritt 17

Using the phillips head screwdriver (PH 000), remove the remaining three 3.78 mm (0.1445 in) screws located on the back panel of the camera.
If you have not done so already, remove the microSD card.

Schritt 18

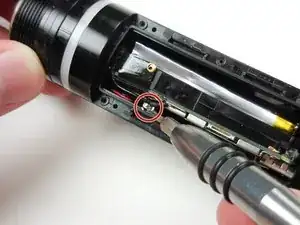

Using the phillips head size PH000 screwdriver remove 3.67mm (0.1445 inch) screw located on the side of logic board within the body of the camera.

Schritt 19

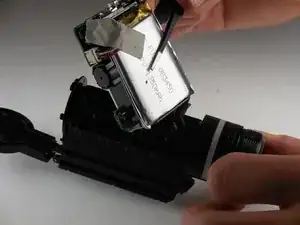

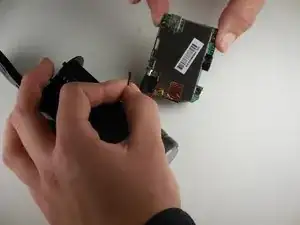

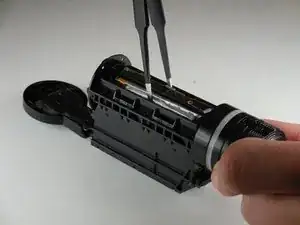

Using flathead tweezers, remove the logic board and the battery from the camera.

Schritt 20

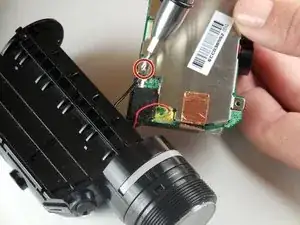

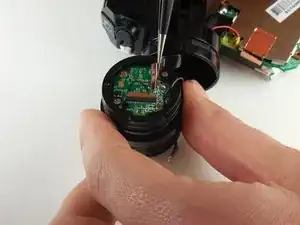

Using a phillips head screwdriver (PH 000), remove the screw connecting the lens unit to the logic board.

Schritt 21

Remove the semicircular white plastic strip near the lens unit.

Schritt 22

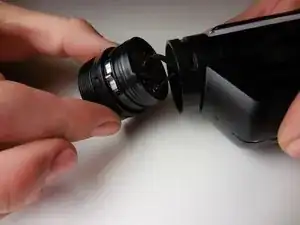

Twist lens unit until able to easily remove

Schritt 23

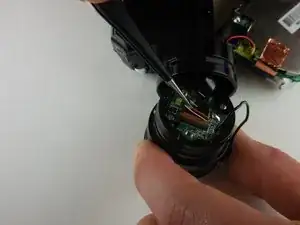

Disconnect the ribbon connector connecting the lens unit to the logic board.

Schritt 24

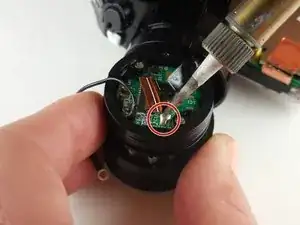

Remove the ribbon connecter from the lens unit by soldering.

Abschluss

To reassemble your device, follow these instructions in reverse order.
