Controller Plate/Buttons Replacement

Geschrieben von: Pieter Boersma
  • Kommentare: 2
Controller Plate/Buttons Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 - 20 Minuten

Einleitung

  1. ptGIE1Met3JVvHew

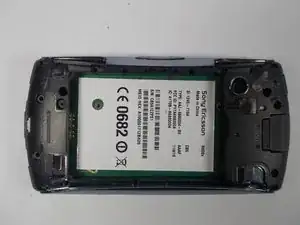

    • Follow the Prerequisite Guide on how to Replace the Battery to prepare the phone for disassemble. Remove, but do not replace the battery.

  2. g3GM3garUYg1yRej

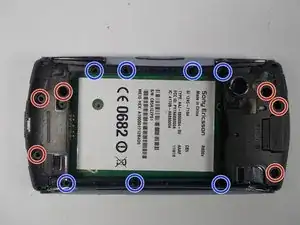

    • Remove all screws on the plastic case with a T6 Torx T-4 screwdriver, as shown.

    • Blue Circle: T6 Torx, Length 5mm

    • Red Circle: T6 Torx, Length 4mm

    • The screen and other parts are now loose and can easily fall off.

  3. u4mHCyjPJGg4KuLC

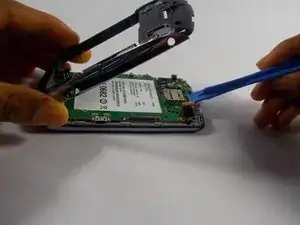

    • Separate the back cover from the phone. A plastic removal tool can be used here.

  4. FMGZDCKDxBLZxooK

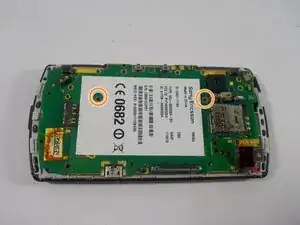

    • Remove the last two screws holding the motherboard to the device.

    • Orange Circle: 00 Philips head, Length 2 mm

    • The screen and other parts are now loose and can easily fall off.

  5. wIh4WOCcBYEaTZTX

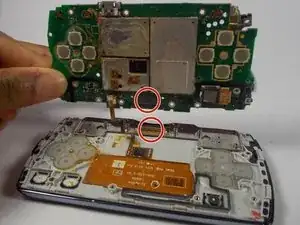

    • Gently pull up the motherboard. Some force may need to be applied.

    • Some wires on the reverse side are still attached.

    • Make sure to line up the plastic connectors highlighted by the red circles when re-assembling.

  6. C1scZmZpc3T1aR5s

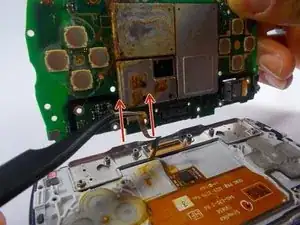

    • Break the break the data cable connection between the motherboard and the controller plate by gently pulling out the connecting wire with tweezers.

    • When the device is orientated as shown in the picture, apply the force parallel to the motherboard and away from the device, as depicted by the red arrows.

  7. H1QetryODJenRSw3

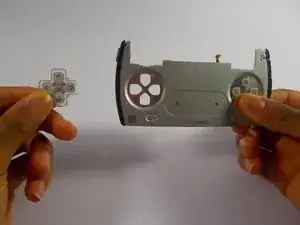

    • The entire controller plate should now be free from the phone. All the buttons can now be taken off by gently pressing them out.

    • If the touch-pad joysticks do not work, the entire plate needs to be replaced.

    where can I get the Sony Ericsson Xperia play slide flex ribbon can you help thanks

    Tye Reaney -

    Where can I get the Sony Ericsson Xperia play slide flex ribbon thanks

    Tye Reaney -

Abschluss

To reassemble your device, follow these instructions in reverse order.
