Coolpad Defiant Daughterboard Replacement

Geschrieben von: Elijah Gastin
  • Kommentare: 0
Coolpad Defiant Daughterboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

5 - 10 Minuten

Einleitung

Use this guide to replace the daughterboard in your phone.

  1. FjyRdmcxLUllEudZ
    FjyRdmcxLUllEudZ
    fVQl4XcnH1RnfuqF

    • Turn the phone with the back cover facing towards you.

    • Carefully remove the back cover by holding one corner of the case and carefully pulling it away from the phone.

    • The plastic case and inner components can break if not pulled carefully, so pull cautiously.

  2. LvGoLLxrZxw1aBfE

    • Remove the back cover from your device.

  3. MatgGWxgvI1BBWKX

    • Find the gap on the bottom of the battery.

    • With a tool or with your hands, pull the battery upward and set it aside safely.

    • Remember to return the battery once you are done, safely placing it in the correct position or as how you first saw it.

    • Be careful with old or damaged batteries and dispose of it appropriately

  4. MKma2Bc1VZgughX5
    MKma2Bc1VZgughX5
    HBNbNAnKYAigNdPj

    • Remove all fifteen screws using the Phillips #000 screwdriver.

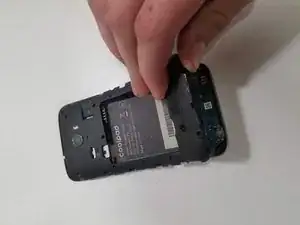

    • Remove the back panel after all screws are removed.

  5. Sqx3Tapodfn2Istl
    Sqx3Tapodfn2Istl
    tMXKx62BeMpLb3dR
    mEHQO4NZOnhBgicC

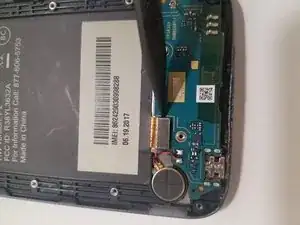

    • Disconnect the metal cable using the plastic spudger.

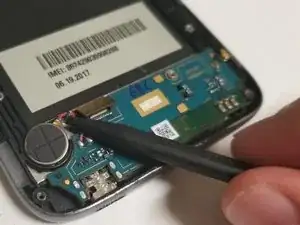

    • The remove the glued down speaker from the backing.

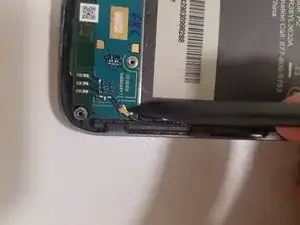

    • Disconnect the little black wire from lower logic board.

  6. DmpJwudq2x2MrElH

    • Using the plastic spudger remove the lower logic board because the only thing that is holding it down is glue.

Abschluss

To reassemble your device, follow these instructions in reverse order.
