Corsair Katar DPI Sensor Replacement

Geschrieben von: Margaret Loughren
  • Kommentare: 0
Corsair Katar DPI Sensor Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

5 - 10 Minuten

Einleitung

If the DPI (dots per inch) sensor inside your Corsair Katar mouse is not operating correctly, this guide will show you how to replace it.

  1. Gomf6h1ntJAswYs6
    Gomf6h1ntJAswYs6
    DH4TgqdDULXjmsFA

    • Unplug your mouse before starting.

    • Flip the mouse over so the bottom is facing up.

  2. sAPDavweVwYGGRWp

    • Remove the three skates on the bottom of the mouse using the plastic opening tools.

    • Skates will be very sticky.

  3. L2sCyOVNb6wQ2xMZ
    L2sCyOVNb6wQ2xMZ
    VZ3siD2owmXEs5oE

    • Use the JIS 0 screwdriver to remove the four 5 mm screws on the bottom of the mouse.

  4. OpMQYwOdujvupbiW

    • Detach the bottom of the mouse from the upper shell.

    • Remove the shell slowly so as not to damage the white DPI cable inside the mouse.

    • Use the plastic opening tool to detach the white DPI sensor cable from its port.

    • Alternatively, you can use your hand to remove the DPI sensor cable by wiggling it out of the port.

  5. IMBftgkbAxqDVbpE
    IMBftgkbAxqDVbpE
    LnRlDBJk5gdh2pvs

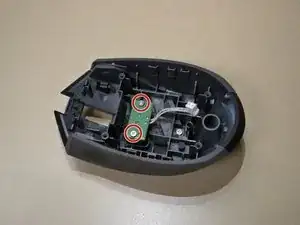

    • Use the JIS 0 screwdriver to remove the two 5mm screws holding the DPI sensor.

  6. f4KBgaSaLkkuXcB5

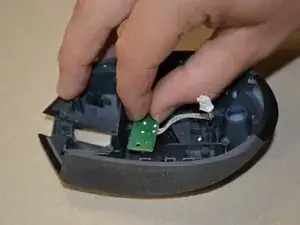

    • Lift the DPI sensor away from the mouse shell.

Abschluss

To reassemble your device, follow these instructions in reverse order.
