Corsair Void Pro RGB Battery Replacement

Geschrieben von: Gianna Nobili
  • Kommentare: 11
Corsair Void Pro RGB Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

Eventually, the battery for the Corsair headphones will need to be replaced. Luckily, replacing the battery is a relatively simple process that involves removing the panel covering an earmuff and unplugging the old battery.

Instructions for removing the battery all refer to the right hand earmuff.

  1. ajprhlKy4PdPQNoK

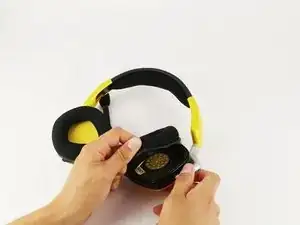

    • Carefully remove earmuff from headphones by getting a grip under the earmuff cushion and peeling up over the lip that keeps it in place.

  2. BIumAmJYynXU2jEk
    BIumAmJYynXU2jEk
    DmUAOBCER6IuhN1g

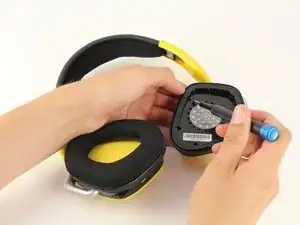

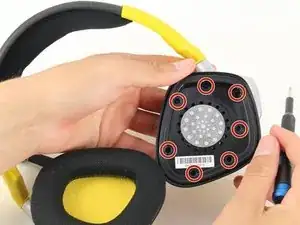

    • Using the Phillips #0 screwdriver, unscrew the seven 6.4 mm screws holding the black speaker cover in place.

    • If you are disassembling the lefthand earfmuff, there will be eight 6.4 mm screws to remove.

  3. yEdxnKLpjX3IH44q
    yEdxnKLpjX3IH44q
    LxTxTP6u1aaFSPYG

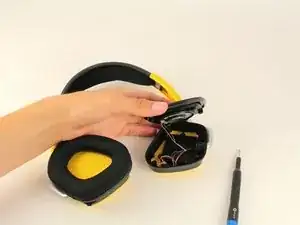

    • Remove and set aside the black panel, taking care to keep the wires attached.

    • The panel should lift up without much force. If the panel does not budge, carefully use the iFixit plastic opening tool to dislodge the piece.

  4. QoCnrohcQDMfJ4Ej
    QoCnrohcQDMfJ4Ej
    dZkYWdRpKBAEDtVS

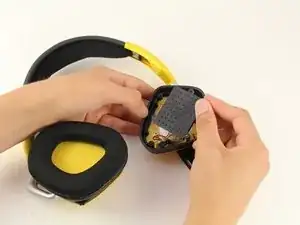

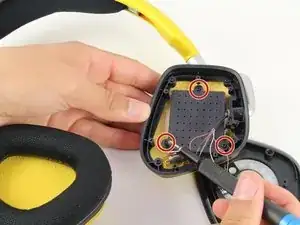

    • Using the Phillips #0 screwdriver, remove the three 6.4 mm screws on the black plastic panel with the grid of holes.

  5. kLwEGGGx1EIxwAT6
    kLwEGGGx1EIxwAT6
    G4CngFUGbdRNyqbE

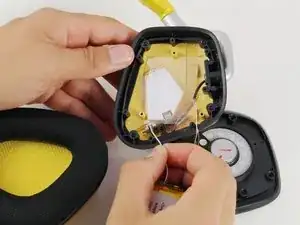

    • Carefully unplug the wire that connects the battery pack to the headphones.

    • This should not take too much force.

  6. WcYEqIFPpEOphwNP

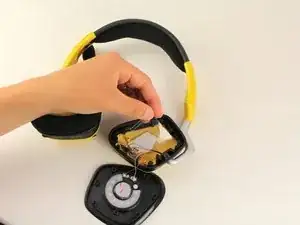

    • Remove the clear plastic covering and set aside.

    Hola Gianna, cómo estás?

    Te consulto: mis auriculares de repente dejó de funcionar bien el auricular izq (el del micrófono), se escucha muy bajo y cuando no hay sonido hay una especie de fritura de fondo aunque la PC esté apagada. Desarmé el auricular derecho para comprobar el estado de la bateria y veo que ésta está hinchada. Crees que la falla mencionada anteriormente, puede deberse a la batería en mal estado o nada tiene que ver una cosa con la otra? Desde ya muchas gracias y muy útil y clara la guía.

    Horacio -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Gianna Nobili

Mitglied seit: 15/04/19

827 Reputation

10 Kommentare

Someone knows where to find the charging connector for the headset or can it be changed for usb-c?

Vincent Poirier -

It can be charge with any other USB mini/micro cable like the one for android phones, prior to USB-C

Unless your model of headset only allows USB-C then yes use any USB-C

Cesar Ruiz -

Can someone please add a link to where you can buy this replacement battery - I would like to order a few.

Cesar Ruiz -

So the battery that I ordered from here is a 700mAh. The on that I ordered from the link here is an 700mAh. Time to send this back and shop again

Justin Bell -

Can u show how to change “Charging Port”??

Jason HKB -

Could anyone tell me the battery dimensions and which JST plugsize is used?

Velo -

How can anyone unscrew those screws? I stripped all of them with my phillips screwdriver, and could not unfasten them no matter what DIY tricks I tried. I laid a rubber band over the top, tried a flathead, even tried prying the panel open. Nothing worked. I can try pliers, but I’d have to cut holes around the screw heads to even reach them, and I don’t know if I can even do that without damaging anything underneath. Probably just going to have to save up my money and buy another wireless headset at this point.

Lee Adcock -

Great guide, was able to do this with little issue. Hardest time I had was getting the earmuff fitted back on.

Chris Eaton -

Does the battery pack use a standard JST connector?

Texus Noe -

consulta: mis auriculares (Corsair Void Pro RGB) de repente dejó de funcionar bien el auricular izq (el del micrófono), se escucha muy bajo y cuando no hay sonido hay una especie de fritura de fondo leve aunque la PC esté apagada. Desarmé el auricular derecho para comprobar el estado de la batería y veo que ésta está hinchada. Crees que la falla mencionada anteriormente, puede deberse a la batería en mal estado o nada tiene que ver una cosa con la otra? Desde ya muchas gracias.

Horacio -
