Corsair Void Pro RGB Volume Switch Replacement

Geschrieben von: Gianna Nobili
  • Kommentare: 0
Corsair Void Pro RGB Volume Switch Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

Learn how to replace the volume switch by following these steps. Replacing the volume switch does not involve many technical operations.

All steps for replacing the volume switch should be applied to the lefthand earcup..

  1. ajprhlKy4PdPQNoK

    • Carefully remove earmuff from headphones by getting a grip under the earmuff cushion and peeling up over the lip that keeps it in place.

  2. BIumAmJYynXU2jEk
    BIumAmJYynXU2jEk
    DmUAOBCER6IuhN1g

    • Using the Phillips #0 screwdriver, unscrew the seven 6.4 mm screws holding the black speaker cover in place.

    • If you are disassembling the lefthand earfmuff, there will be eight 6.4 mm screws to remove.

  3. yEdxnKLpjX3IH44q
    yEdxnKLpjX3IH44q
    LxTxTP6u1aaFSPYG

    • Remove and set aside the black panel, taking care to keep the wires attached.

    • The panel should lift up without much force. If the panel does not budge, carefully use the iFixit plastic opening tool to dislodge the piece.

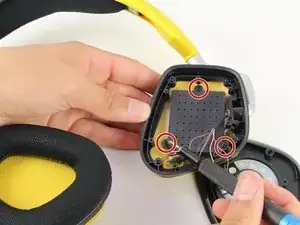

  4. fgdBP5WMo5quqEMZ

    • Using the Phillips #0 screwdriver, remove the three 6.4 mm screws on the black plastic panel with the grid of holes.

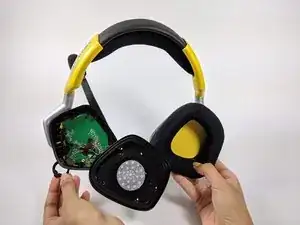

  5. 1hXco6FQlfGFLAoD

    • Pull the volume switch out and remove it from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
