Cowon iAudio U2 Microphone Replacement

Geschrieben von: Justin Proshka
  • Kommentare: 0
Cowon iAudio U2 Microphone Replacement

Schwierigkeitsgrad

Difficult

Schritte

4

Zeitaufwand

20 Minuten

Einleitung

When you turn your device on, you cannot record.

  1. kLujKNNtJTNlIxXP

    • Before starting the disassemble, make sure the device is powered off.

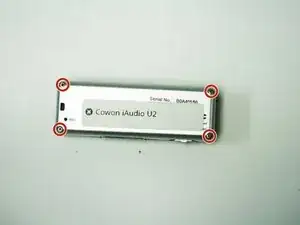

    • Unscrew the 4 screws using the PH000 drill bit from the iFixit toolkit.

    • Don't forget to place the screws aside in a safe location, perhaps use a magnetic board to store them. You will need the screws to put the device back together.

  2. mUbAFYClERK6k1aO
    mUbAFYClERK6k1aO
    XJYuHCjgrQ6aeDYr

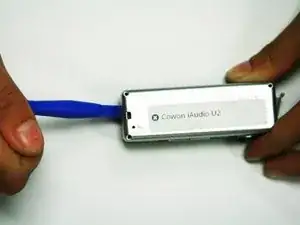

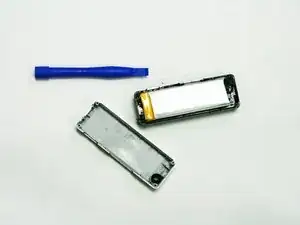

    • Use the plastic opening tool from the iFixit toolkit to separate the back from the front of the device. This can be done by wedging the opening tool in the crack where the two sides of the device cover meet.

    • After it is wedged in push down on the exposed end until the two sides come apart.

  3. eixhSubCfbjsZkN1
    eixhSubCfbjsZkN1
    OKGHmatrnCnqcvao
    K2SnNCX4sVlXIlTO

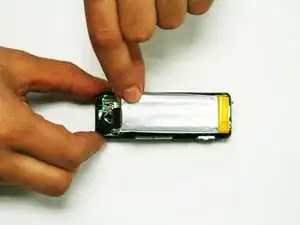

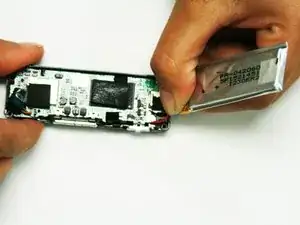

    • In order to get to the wires of the microphone you will need to peel back the battery.

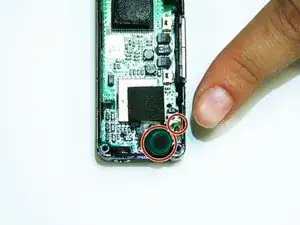

    • You will need to pull out both of the wires of the microphone connected to the motherboard in order to replace the microphone.

  4. HGb4iTQWGYwZtRTE
    HGb4iTQWGYwZtRTE
    FuqadmvG5RAC5sMP

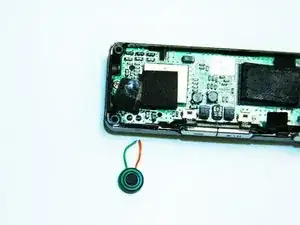

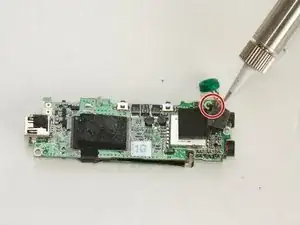

    • Next, you will need to take the new microphone and solder it to the motherboard using a soldering iron.

    • Note when using the soldering tool that the sliver bar may become too hot, so that is a part of the tool to avoid touching while in use.

Abschluss

To reassemble your device, follow these instructions in reverse order.
