Crank Arms Replacement

Geschrieben von: aaron thielk
  • Kommentare: 5
Crank Arms Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

Keine Schätzung

Einleitung

In this guide you will remove the crank arms and replace them with new ones.

  1. sV3RsZ1Eu6TFEWj6
    sV3RsZ1Eu6TFEWj6
    nEFtjLFgCo2NWhfr

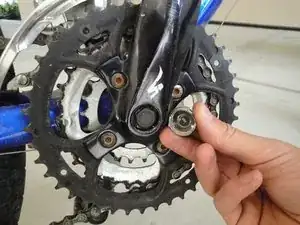

    • Take cap off the crank arm with flat head screw driver. It should just pop off.

  2. MgumZB2JyFkoNoHk
    MgumZB2JyFkoNoHk
    IPgqcKvNPlFCOxd6

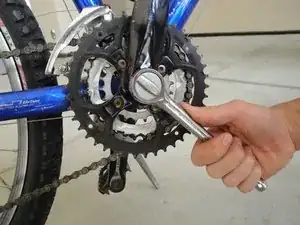

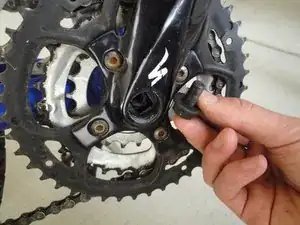

    • Use a socket wrench to take out the main bolt.

  3. 4ISAnfngKqcTmRnD

    • Attach the crank puller to the threads on the crank arm, hand tighten it in until it bottoms out.

    • Be careful not to strip the aluminum threading of the crank arm with the steel threading of the crank puller. Don't force anything.

  4. GgECVtXmUZk1imTT

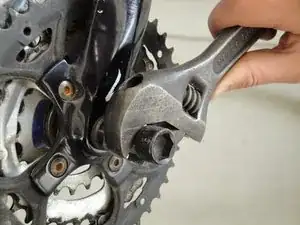

    • Use wrench to tighten the free end of the crank arm, pulling the crank arm off the bike.

  5. cPNwNYGrqqyXvjvy
    cPNwNYGrqqyXvjvy
    PyxHZX2kH2TC4VZ6
    V1V25TKOHbhOHtcV

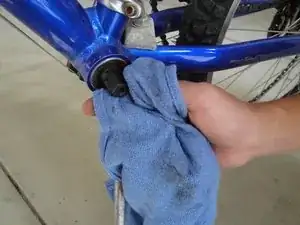

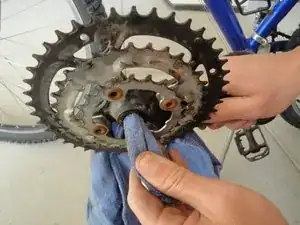

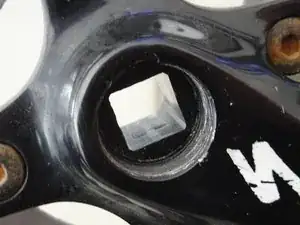

    • Clean the bottom bracket axle, crank arm, and sprockets with a rag.

  6. KQlxmgECTyxKCEis

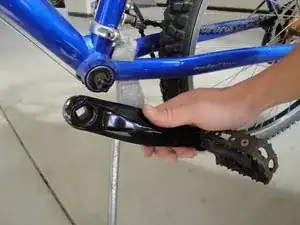

    • Slide the new crank arm on the the tapered square of the bottom bracket axle.

  7. 5Waf2jYxHCfxR2Ni
    5Waf2jYxHCfxR2Ni
    X225RM3ULaVGDuci

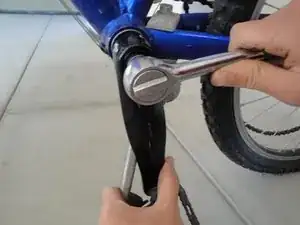

    • Use a socket wrench to tighten the main bolt.

    • It's easy to cross thread the aluminum crank arm with the steel crank puller. Be very careful to thread properly.

  8. BJlfEL6rvK3SXo2y

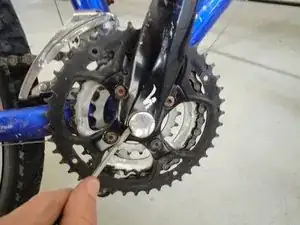

    • Replace the cap.
