Crayola Crayon Maker White Plastic Arm Replacement

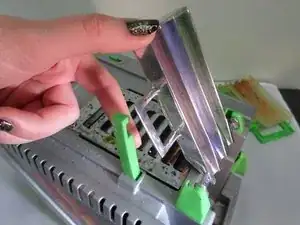

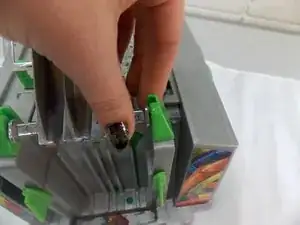

Press the green arm away from the melting tray. Remove the melting tray.

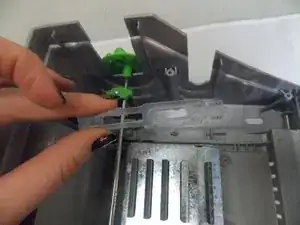

Pop the metal arms out of the green pivot support.

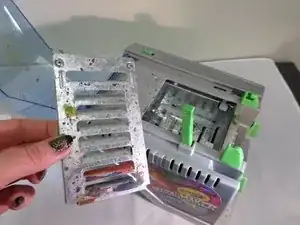

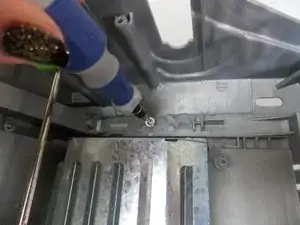

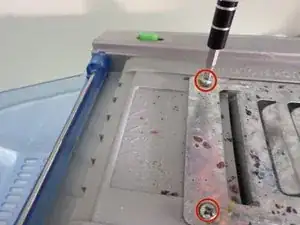

Remove the 2 screws (.75cm in length) currently securing the metal melting tray with a Phillips #2 screwdriver.

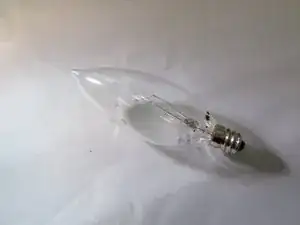

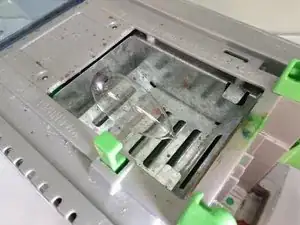

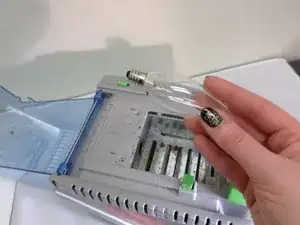

The light bulb should now be revealed. Unscrew the burned out bulb and replace with a new bulb.

Flip the crayon maker.

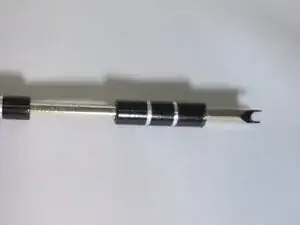

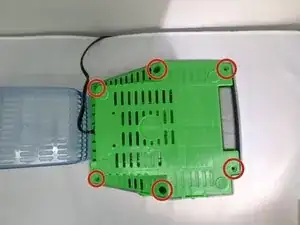

Remove six screws (2 cm in length) with a spanner.

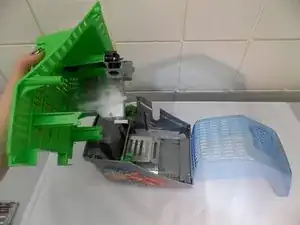

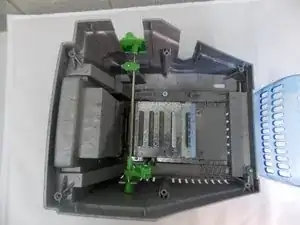

Remove the green base plate and set it aside.

Locate the clear plastic arm inside the control box.

If necessary, unscrew the plastic arm with a Phillips #00 Precision screwdriver and readjust the arm until the desired position is reached.

If the plastic arm is broken, contact Crayola for replacement parts.

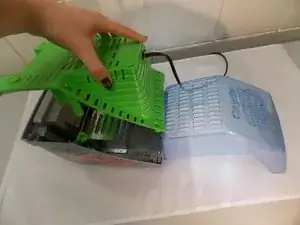

Remove the green base from the crayon maker and set aside.

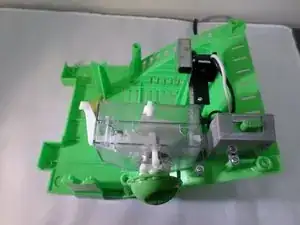

Locate the clear box.

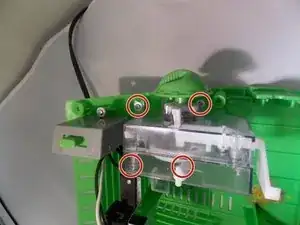

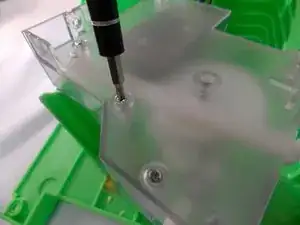

There are four screws (circled in red) that need to be removed with a Phillips #00 Precision screwdriver.

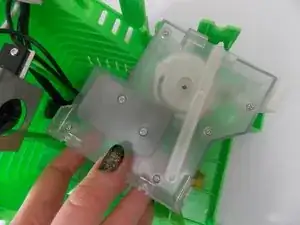

Remove five screws (1.5 cm in length) using a Phillips #00 Precision screwdriver and open the clear plastic box.

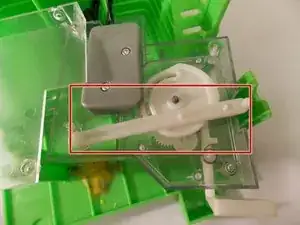

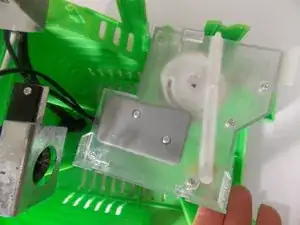

The plastic arm should be positioned as shown in the figure. Adjust the arm's position if necessary.
