Creality CR-10s 3D Printer Nozzle Replacement

Geschrieben von: Danny Braddock
  • Kommentare: 1
Creality CR-10s 3D Printer Nozzle Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

25 Minuten

Einleitung

Have you noticed your Creality CR-10s-3D Printer producing lower quality prints than usual? This problem could be due to a worn down nozzle. When continuously running a 3D printer, nozzle wear is imminent and requires eventual replacement. This guide will walk you through the steps of detaching the filament line, removing the nozzle housing, and finally replacing the nozzle itself. This guide requires no special expertise and only minor tool use.

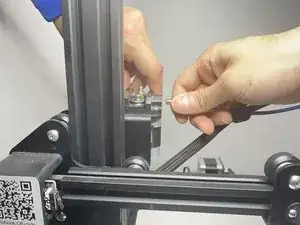

  1. qcPBslaPngMbVvgX
    qcPBslaPngMbVvgX
    VxWCwNNQ1JnpLVBV
    WVThTSQpkbnWUOjL

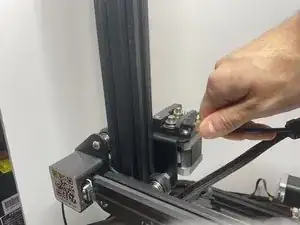

    • Before attempting any disassembly, ensure that the cables that connect to the printer's central computer are unplugged.

    • Carefully unthread the golden colored filament hose connector until it is completely detached.

    • Once the threaded hose connector is detached, squeeze the spring-enabled mechanism to release some filament.

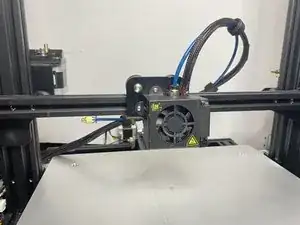

  2. 1DDPXRhkHDV4VJK5
    1DDPXRhkHDV4VJK5
    gTNpNO4LsfFDwOIK
    SOXbMhDtWgqBA6Gm

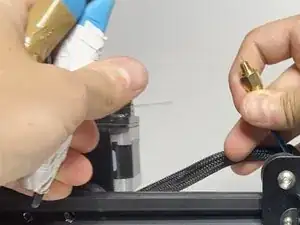

    • A line of filament is still connecting the hose to the body of the 3D printer.

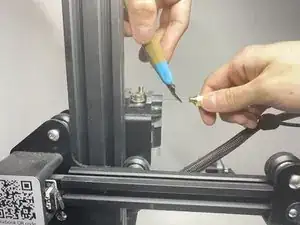

    • Using a cutting device, carefully cut the line of filament until the hose is independent of the printer.

    • When cutting the filament, cut it at a 45 degree angle. This ensures that when the filament is inserted in the new nozzle, the material does not clump inside when melted.

    • Once the filament is cut, place the detached hose out of the way but in a safe part of the printer, as to avoid sticking to another printer component.

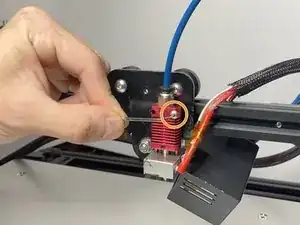

  3. bZAhr1KIcLet64KH
    bZAhr1KIcLet64KH
    2KDdKWCMXGsVQ5QE
    ABs5silMMSkCbikD

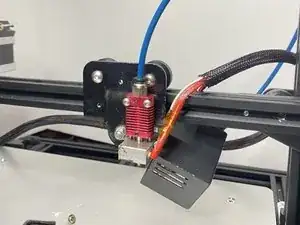

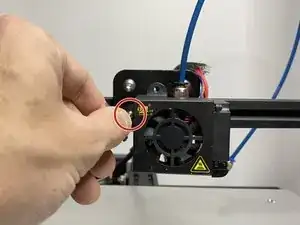

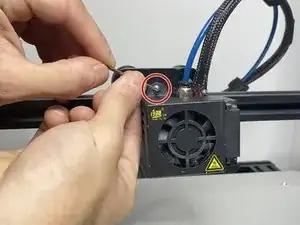

    • Using a 2 mm Allen key, unthread the two 5.5 mm screws from the nozzle fan casing. Unthread the top screw and then the side screw as shown.

    • While unthreading the screws, hold the fan casing with one hand so as not to allow it fall once completely detached.

    • Once the fan casing is detached, ensure that it's positioned in a way that doesn't damage the external wires and attachments.

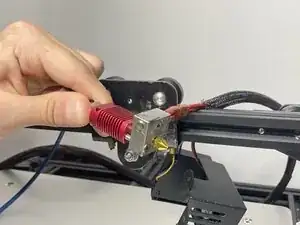

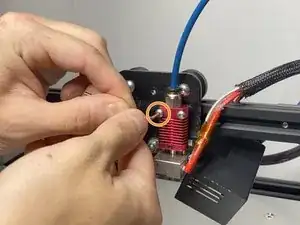

  4. v1ZlSDVXfLgttwYW
    v1ZlSDVXfLgttwYW
    Uq4JNimJvFpSElee
    lrTQSlfLo2UItoN5

    • Using the 2mm Allen key, unthread the two 17.5 mm screws that hold the nozzle assembly to the printer railing.

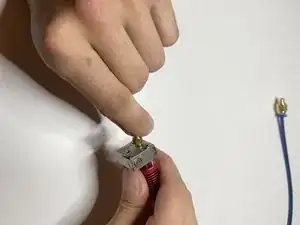

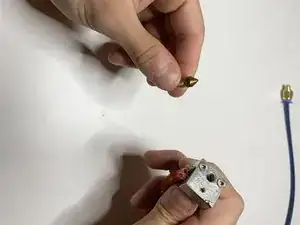

  5. DNUPZnAABYFwVXym
    DNUPZnAABYFwVXym
    v2LKSor2pipnRRmh
    HGLNqBGWkBZNnNvs

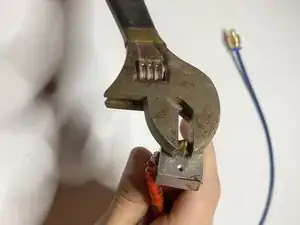

    • Using a crescent wrench, start to unthread the current nozzle from the nozzle assembly.

    • Once the nozzle is loose enough, unthreading by hand will speed up the process.

    • If this is the first time the nozzle is being replaced, it might be threaded onto the assembly very tightly. In this instance, firmly grasp the nozzle assembly to prevent it from slipping out of your hands. In the case that it is still too tight, gently clamp the assembly to a table or bench and unthread the nozzle.

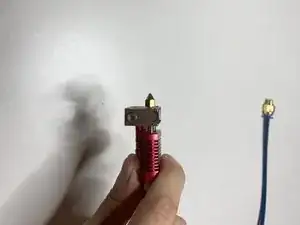

  6. oWdq5MGdHPaLssl1
    oWdq5MGdHPaLssl1
    JPEXFZFgQegExxWW
    vRAZbPCOJCgEBnfO

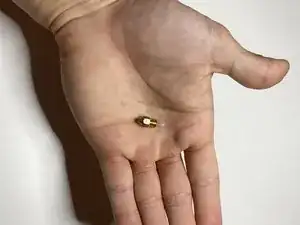

    • Once the nozzle is completely unthreaded, inspect the assembly for filament debris.

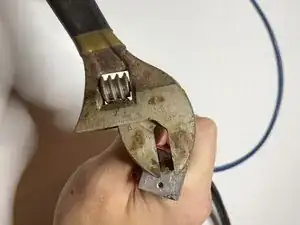

    • Start by threading the new nozzle into the assembly by hand. Using the same crescent wrench, tighten the new nozzle onto the assembly.

    • This completes the tutorial to replace a Creality CR-10s 3D printer nozzle!

Abschluss
  • To reassemble your device, follow these instructions in reverse order.
  • If you would like to ensure the nozzle replacement has been followed correctly, calibrate your 3D printer.

Tinte & Feder

Danny Braddock

Mitglied seit: 20/09/20

154 Reputation

Ein Kommentar

Old post, but …

In Step 5, if the nozzle just isn’t coming loose, hang the hotend (being VERY careful of the wires - they break if you look at them) so that it’s in free space. Then bring the nozzle to about 200°C. When it’s hot, grab the heat block (the part the nozzle is screwed into) either with a pair of pliers (plain old pliers, if you’re careful) … OR an “Ove Glov” and the nozzle should come out easily. With a 6mm box wrench or Spin Tight. (If you slip with a crescent wrench, throw the nozzle out.)
