Creative Nomad II Lock/Unlock Switch Replacement

Geschrieben von: Craig Fischer
  • Kommentare: 0
Creative Nomad II Lock/Unlock Switch Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

10 Minuten

Einleitung

  1. ruHZncIkjlcK6eoO

    • Using your thumb, slide down and remove the battery cover.

  2. WKYXjOXToQmAy4E5

    • Using your index finger, remove the old AA battery.

    • Install the new AA battery.

  3. Qa35RHpRToPvXSLm

    • Slide down the eject button.

    • Pull out the old SmartMedia Card.

    • Insert the new SmartMedia Card.

    • The notched corner of the SmartMedia card should go in the top left corner.

  4. kIVUCwHlCBuBQ6Ac

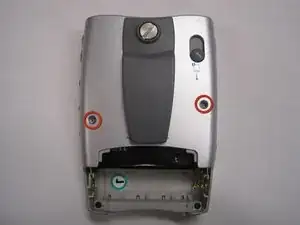

    • Using a Phillips #00 Screwdriver, remove the two 7.5mm screws from the sides of the back cover.

  5. LqGVPW6HoTb511c3

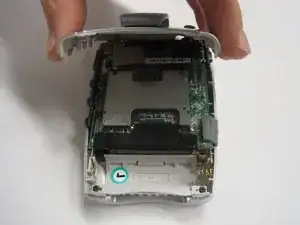

    • Lift the back cover off of the NOMAD II.

    • Remove the rubber USB port cover, the connected buttons along the left edge, and the plastic lock/unlock button on the upper right edge of the device.

  6. h2WfbpOCddkOwcWT

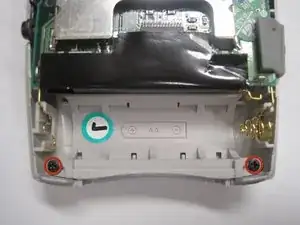

    • Using a Phillips #00 Screwdriver, remove the two 5.5mm screws from the sides of the battery compartment.

  7. rrvFixVfKmKm2jhN

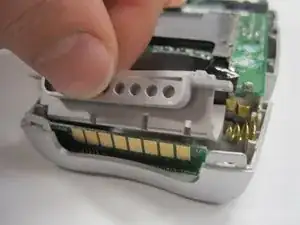

    • Carefully remove the battery compartment.

  8. lopm4ahEM4xSramb

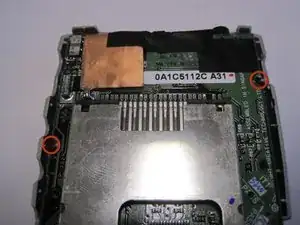

    • Using a Phillips #00 Screwdriver, remove the two 5.5mm screws on the left and right edges of the circuit board.

  9. FNiOJeOnZw6ZBJCZ

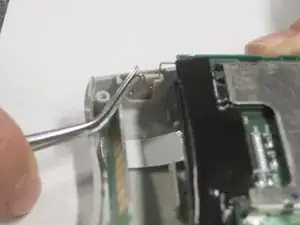

    • Using a pair of tweezers, carefully pry the metal loop on the left side of the battery compartment away from the case.

  10. 15sS1ZSoqLMoCQfZ

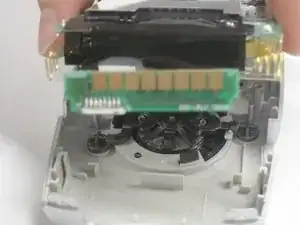

    • Pull the circuit boards out of the back cover.

    • During reinstallation, firmly press the top of the circuit boards into the cover until you hear a click.

  11. MARJjXhfmGFO5Lo1

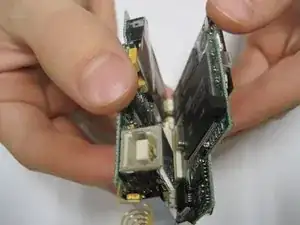

    • Gently pry the circuit boards apart.

    • This must be done with the USB port facing up, as shown.

  12. bZZBRis1buDsuMsD

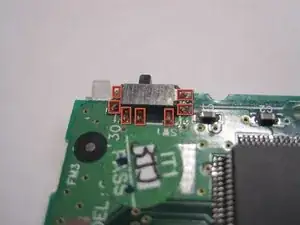

    • Desolder the seven solder joints which hold the lock switch in place.

    • Install the new lock/unlock switch.

Abschluss

To reassemble your device, follow these instructions in reverse order.
