Creative Zen Microphoto Screen Replacement

Geschrieben von: Emily Hill
  • Kommentare: 7
Creative Zen Microphoto Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

17

Zeitaufwand

15 Minuten

Einleitung

Use this guide to replace the screen of the Creative Zen Microphoto.

  1. GtP2EgVKQKuhTdwV

    • Slide off the back cover to reveal the battery.

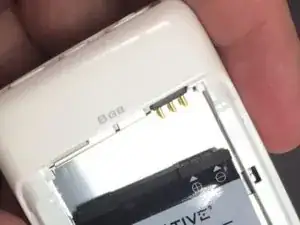

  2. gaX1nqBNFdnUPQCA

    • Removal of the battery may require some force.

    • Beginning with the notch directly beneath the battery, use the plastic opening tool to loosen the battery.

    • Once the battery is free, remove it from the device.

  3. EXStll2ISbc14OtV

    • Turn over the device.

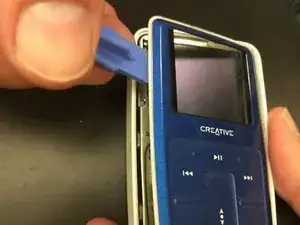

    • Use the plastic opening tool to separate the front and back covers.

    • Move the opening tool around the perimeter of the device until the front cover detaches.

    DO NOT DO THIS. Slide the metal panel under battery away from the battery contacts, then apply pressure at the bottom of the device on that panel while holding the sides. You can then jump directly to step 7 without ripping the touch panel cable off by tearing off the front panel

    Nick Burtinsky -

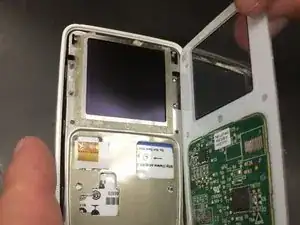

  4. clfYSvwjmMJfaDEj

    • Slowly detach the front cover from the rest of the device to reveal the interior.

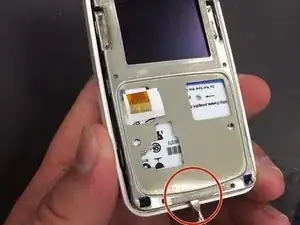

  5. PgYf1FSpvvYK22b1

    • Insert the flat-head screwdriver into the notch on the bottom of the device. Pry the main board and screen from the outer shell of the device.

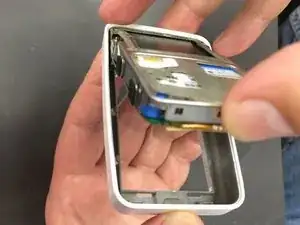

  6. 5qOhOXccbMANm4yT

    • The power button will come loose upon removal of outer shell. When reassembling, align power button properly.

    • Remove the main board and screen from the outer shell.

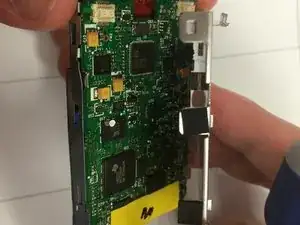

  7. v2iTtUMUIk5TYbwh
    v2iTtUMUIk5TYbwh
    pDUYa6ErHCmxBF53

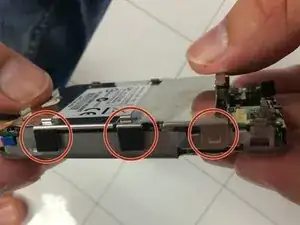

    • No tools are needed. The prongs (pictured) will release easily to remove the back cover.

    • Carefully remove the back cover.

  8. HWtFWPYhwGJNtXM4

    • Be gentle when removing the main board. The main board is attached to the front panel of the device by wires.

    • Using the flat-head screwdriver, carefully pry open the prongs on the sides of the device, and remove the main board from the screen.

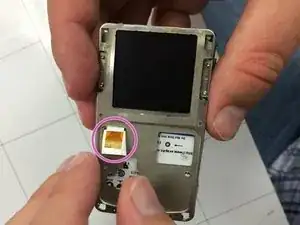

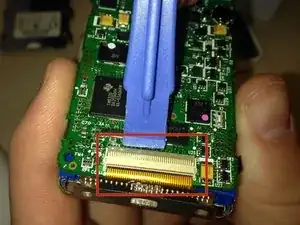

  9. YGPdHlpFQ4nu3Au1
    YGPdHlpFQ4nu3Au1
    YhkQtsI3MbhVYlNB
    pHxhACBxKyl5lZWw

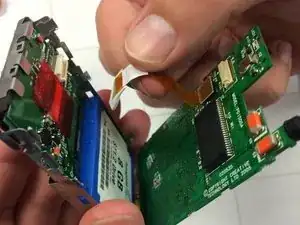

    • Do not damage the ribbon tab (pictured). It is vital to the device.

    • Push the ribbon tab (sticking out below the main screen) backward through the square hole to remove the main board of the device.

    • Once the wiring is removed from the front panel, release the hinge at the bottom of the device. To do so, gently pry underneath the clip (pictured) with a plastic opening tool. The clip will pop up, and the motherboard can be completely removed.

  10. RttOuNrwdBBUXVPE

    • With a set of tweezers, Carefully pull off the the bottom blue cover and remove it from the 8 GB hard drive.

    • DO NOT REMOVE THE TOP BLUE RUBBER COVER.

    Alternatively, save the hassle and just remove the drive completely since it’s now not attached to the motherboard, leave all covers and cable in place and gently push it out of the frame

    Nick Burtinsky -

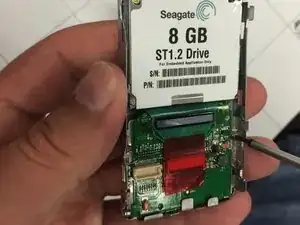

  11. Nj1naIXblS5jtMBf

    • Using a screwdriver, remove four Philip screws from the back of the screen.

    • Place the four screws in a small baggy for later reassembly.

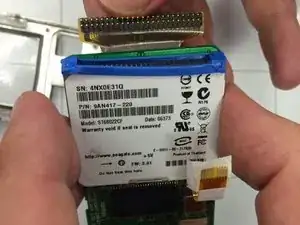

  12. PiSvNCpsaDbkToIe

    • Carefully pull out the gold piece from the top of the hard drive.

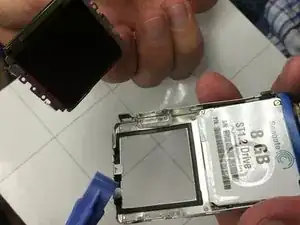

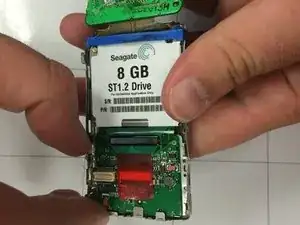

  13. kWHDbVfCw6aFXPkL
    kWHDbVfCw6aFXPkL
    fPUohTcZGxyRGGCl

    • Carefully use your thumbs to pull out the screen (that is below the hard drive).

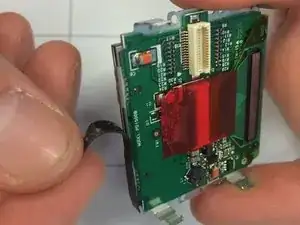

  14. YfZQuIYaZPfWbjbb

    • Look for a black strip on the side of the screen.

    • Remove the strip from the screen using your fingers or tweezers if needed.

  15. WoKS4BLxhvZCVKCo

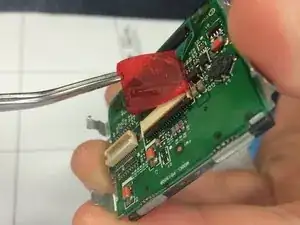

    • With tweezers, lightly pull down on red strip in the middle of the back of the screen.

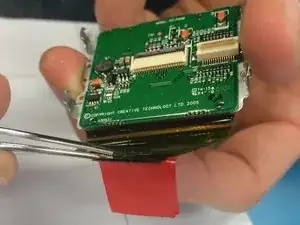

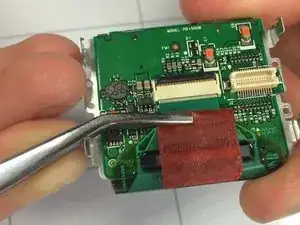

  16. MW2ZaiXS6uFe35Wg
    MW2ZaiXS6uFe35Wg
    pW4KhaIQ4bRS2OYl

    • With the tweezers, carefully pull the red strip off of the back of the screen.

    • DO NOT FULLY DETACH THE TAB FROM THE DEVICE.

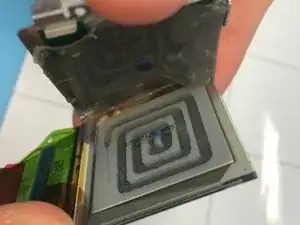

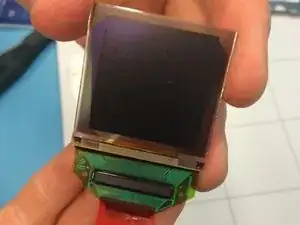

  17. Sn2vNJPWQkDnx1lW
    Sn2vNJPWQkDnx1lW
    AEyoaNNmCMSJfNKZ

    • Carefully lift up the two pieces of the screen to reveal the actual back of the screen.

    • Pull out the screen from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Emily Hill

Mitglied seit: 30/09/14

146 Reputation

5 Kommentare

Great way to destroy a Zen. Don’t pry the front off. Slide the metal cover under the battery down away from the contacts so that the tabs beside the battery contacts disengage, then press on the lower part of the battery compartment while holding the front. This keeps you from ripping the touch pad connector off and you can access everything with the front panel still glued on. Just proceed to remove the rear cover, then remove the motherboard, and you have access to the screen.

Nick Burtinsky -

Thank u very much.

Barbie Calzado -

I was just coming to comment this, I wish I had read the comments first. Along with not destroying the player, it's also so much easier. This seriously needs to be corrected.

ocddev -

Where can i buy a new screen for my zen microphoto?

Pedro Neves -

Seconded. Looking for a new screen. Anyone have any tips?

Cory Roberts -
