Einleitung

This guide will show you how to access the motherboard and speaker on your device.

  1. vBkKA6qvTorhXscK
    vBkKA6qvTorhXscK
    OyWcM6OJwhgnICuR
    eMBTI6kYHxkXhNDW
    • Push the black button and slide the battery casing to the left simultaneously, until the battery is completely separated from the device.

  2. 3o4iYWIpwQAl2R5l
    • Remove 2 screws (2.5 mm) on the top of the device using Phillips #0.

  3. XsaQgp3RBUYXGMqV
    • Remove 2 screws (2.5 mm) on the bottom of the device using a Phillips #0.

  4. 6PN3GkBQbTet53EU
    6PN3GkBQbTet53EU
    gk1b4TCUiGuFVc3a
    UXVAcvMNrqCN66SD
    • Use a spudger to get between the cover and the screen. Carefully lift the cover off of the screen without putting too much pressure on the screen.

    • When the cover has been lifted off the screen, use your hands to remove it from the device.

    • The button pad may fall off when the cover is removed.

  5. CDPtuGatOFWLEHh1
    CDPtuGatOFWLEHh1
    XpwySX3piXMCP63D
    l3ePYuCYHJDLpSnr
    • Use a spudger to separate the metal tabs that hold the screen in place on the right side.

    • The screen is still attached underneath with two ribbon cables. Lift it very carefully.

  6. MxPQy12ZyAyA5Uh2
    • Put the screen face down so you can see where the ribbon cables are attached.

    • Remove the red sticker that covers the ribbon cable connections.

  7. k5M3Vsn2KpwE4re6
    • Use a plastic opening tool to get underneath the black flap on the larger ribbon cable connection and lift it.

  8. gKYqfhJYrumKxkDv
    gKYqfhJYrumKxkDv
    rP2jA5CqBuYFcDDS
    VZ4q4tGHbLkxiYgo
    • Use a spudger to slide the two small gray tabs away from the ribbon cable connection.

    • Remove the screen from the device.

  9. tSWQnGARqbMSHT2F

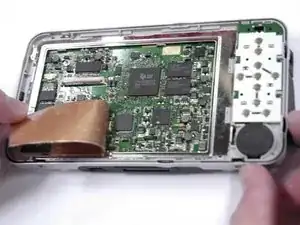

    • Peel the orange sticker off of the motherboard.

  10. dK6mtaGxaD3WlTWI
    dK6mtaGxaD3WlTWI
    LnYyjAUHhjeVFfyM

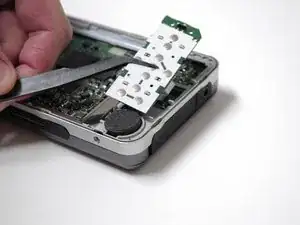

    • Lift the keypad from the left side and use tweezers to slide it out to the left.

  11. ey5i1GYXdsyBblWk
    ey5i1GYXdsyBblWk
    joqgyoCH6NQIoKOS

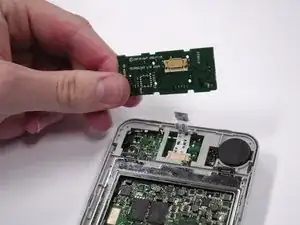

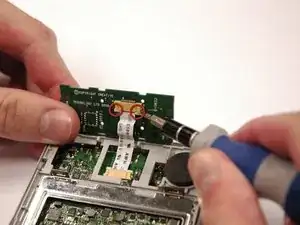

    • Use a small flat head screw driver to slide the white tabs away from the ribbon cable connection.

    • Remove the ribbon cable from the keypad.

  12. FpvfKVl5OUOkUGcD
    • Remove the 2 screws (3.5 mm) on the Compact Flash insert, located on the left hand side, with a Phillips #000 screwdriver.

  13. eBlkfDWujHjgmQd1
    eBlkfDWujHjgmQd1
    FcRWJXsAacUxLNAC
    • Remove the 5 screws (5.5 mm), circled in red, using a Phillips #0. Use a flashlight if necessary.

    • Peel off the sticker that says "Creative warranty void if broken" and remove the screw (5.5 mm) underneath with a Phillips #0.

    • Be careful, some of the screws are difficult to see and can be easily stripped.

  14. XqvkHnI1CSTQ2sRU
    XqvkHnI1CSTQ2sRU
    idj3PVIKqGkr4OeR
    akGQTsq1auUHSFPS
    • Carefully pull the back cover off of the rest of the device.

    • The volume control buttons and power slider may fall off when removing the cover, do not lose these small pieces.

    • The USB input cover on the bottom of the device may also fall off.

  15. POmFdYsBjJBUORIC
    POmFdYsBjJBUORIC
    5SQoXfSJPAShFGLZ
    • Remove 4 screws (3.5 mm) on the metal cover with a Phillips #0.

    • Lift the metal cover off.

  16. fjcsGDRThNIYBqCH
    fjcsGDRThNIYBqCH
    KT5gONWT2aTOHZTl
    AZxm2vMvyHUMRV3E
    • Lift the white and black ribbon connection off of the motherboard.

    • The hard drive can now be removed.

  17. 1lJ5tMueQstHWOwh
    1lJ5tMueQstHWOwh
    LOoLcXQtrueaHnyp
    MLPHZVPEADCZgmdy

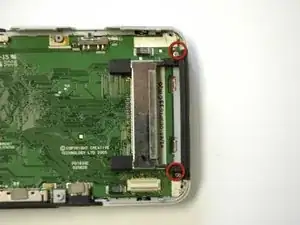

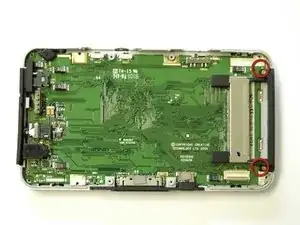

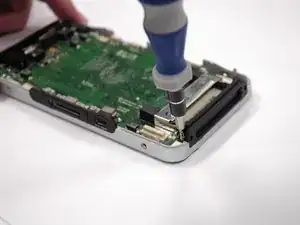

    • Remove 2 screws (3.5 mm) on the black compact flash input using a Phillips #0.

  18. yTWhZkUjCyKmAT4m

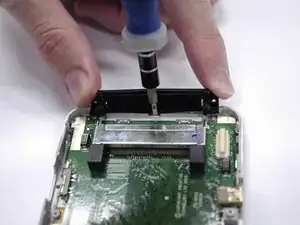

    • Use a small flat head screwdriver to bend the plastic tab holding the compact flash input in place.

    • The compact flash input should pop off easily, be careful not to break it.

  19. r4SAbDSvJk3dn1gX
    • Turn the device over so the side where the screen was is facing up.

    • Push on the motherboard lightly to separate it from the casing.

  20. edMLmRwh2BQnYo5H
    edMLmRwh2BQnYo5H
    5Z4GqTkcRDyQhysL

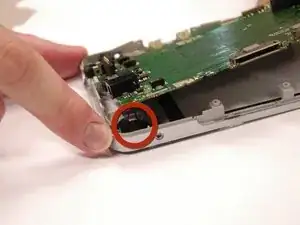

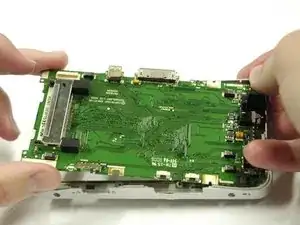

    • Turn the device over again and pull on the motherboard very lightly.

    • The speaker will be covered in a black glue and you must cut through this in order to remove the motherboard.

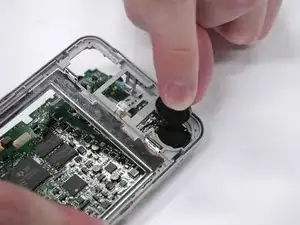

  21. khGKpujUElJ3fAbs
    • Turn the speaker on its side so it can fit through the casing and the motherboard can be removed.

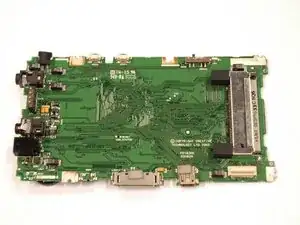

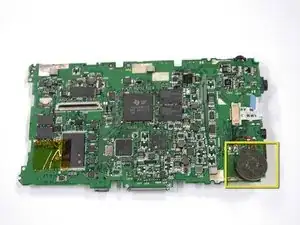

  22. lHn2EvBNAKmq2UPm
    lHn2EvBNAKmq2UPm
    HLqyvOIPp4HjWkgX
    • You have now removed the motherboard.

    • Speaker

Abschluss

To reassemble your device, follow these instructions in reverse order.
